Запчасти Case IH 3594 (6-010) - TRANSMISSION HOUSING (06) - POWER TRAIN

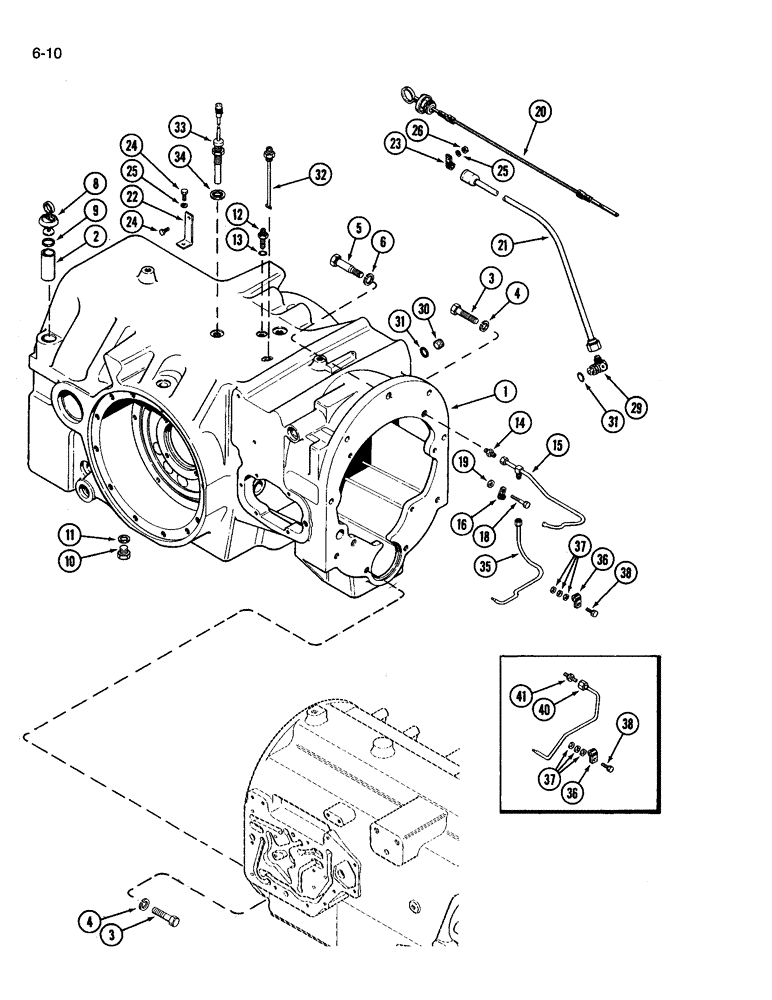

Схема запчастей Case IH 3594 - (6-010) - TRANSMISSION HOUSING (06) - POWER TRAIN
26
9
41
18
5
25
37
24
37
29
1
10
16
4
14
38
32
38
12
35
21
2
40
3
11
23
24
8
6
31
31
15
3
25
36
19
22
34
13
33
20
4
30
36

Артикул

Название

Примечание

Количество

1

A156945

HOUSING

TRANSMISSION HOUSING ASSEMBLY, Includes Ref. 2

1шт.

2

A64405

TUBE

oil filler

1шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

3

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1шт.

3

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex, 5/8 NC x 3-3/4 inch

1шт.

3

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch

5шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

A63086

STEP BOLT

BOLT hex dowel, 5/8 NC x 3-7/16 inch

1шт.

6

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

8

A64404

BREATHER

OIL FILLER BREATHER ASSEMBLY, Includes Ref. 9

1шт.

9

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

10

A140222

PLUG

drain, transmission housing

1шт.

11

A58608

GASKET

drain plug

1шт.

12

A154119

FITTING

bulkhead

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

14

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, 9/16-18 flare x 1/4 inch PT

1шт.

15

A150622

TUBE

lubrication, C1 clutch

1шт.

16

49845

CLAMP

tube

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

19

R12644

BUSHING

SPACER clamp, 12 speed transmission

1шт.

20

A154642

DIPSTICK

oil level

1шт.

21

A154641

TUBE

dipstick

1шт.

22

A146252

BRACKET

tube support

1шт.

23

49838

CLAMP

tube

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

25

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

29

A161145

FITTING

90 DEGREE ELBOW ASSEMBLY, Includes Ref. 31

1шт.

30

9841223

PLUG,1-1/16" - 12 ORB

(Used without air/oil seat), Incl. Ref. 31 Hex Soc, 1 1/16"-12 ORB

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

A156819

TUBE ASSY.

TUBE lube, bevel gear

1шт.

33

A156902

SENSOR

SPEED SENSOR ASSEMBLY

1шт.

34

A75995

SEAL

speed sensor

1шт.

35

A168514

TUBE ASSY.

TUBE lube, countershaft

1шт.

36

S79579

CLAMP

tube

1шт.

37

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

3шт.

38

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

40

A150624

TUBE ASSY.

TUBE lube, countershaft, 24 speed transmission

1шт.

41

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER straight, 7/16-20 flare x 1/4 inch PT

1шт.

Выбрано товаров: 39
