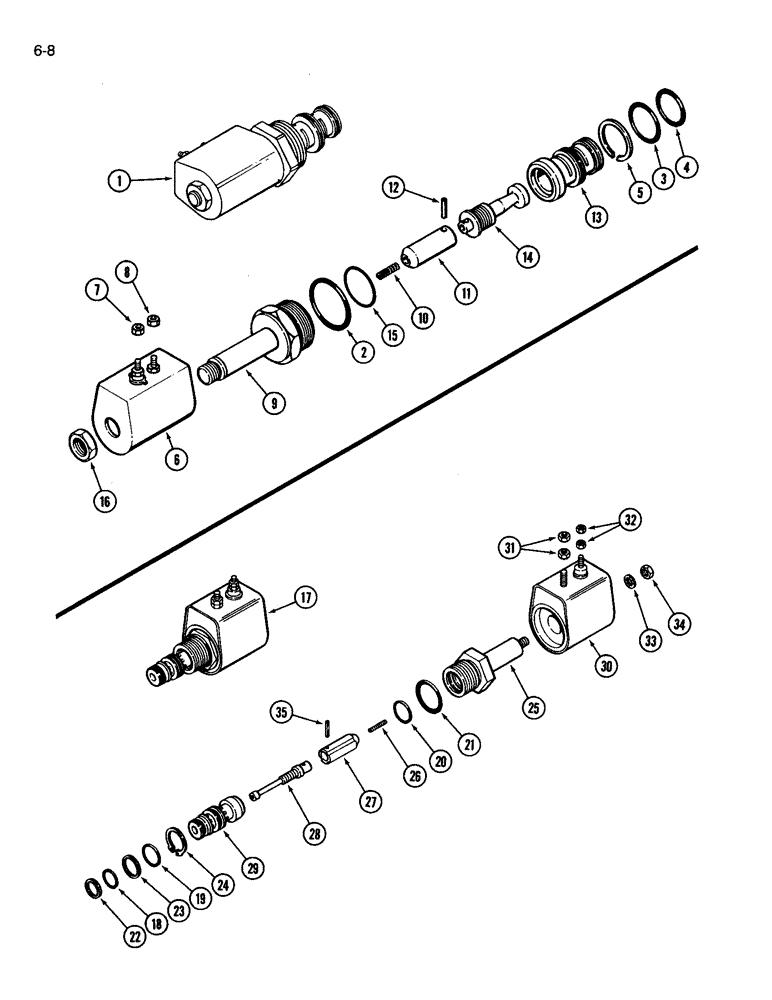

Запчасти Case IH 3594 (6-008) - SOLENOID ASSEMBLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A160899
VALVE
ELECTRIC SHIFT SOLENOID ASSEMBLY, Includes Ref. 1 - 16
4шт.
1
A49488
SWITCH
SOLENOID CARTRIDGE ASSEMBLY
1шт.
A49489
SEAL
KIT Service, solenoid seals, Includes Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING, 2-1/16 inch ID
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING, 1-9/16 inch ID
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING, 1-5/16 inch ID
1шт.
5
NSS
NOT SOLD SEPARAT
RING retaining
1шт.
6
A49486
SWITCH
SOLENOID COIL ASSEMBLY, Includes Ref. 7 and 8
1шт.
7
225-14108
NUT,#8-32
hex, No. 8 NC
2шт.
8
225-10110
NUT,#10-24
2шт.
9
NSS
NOT SOLD SEPARAT
TUBE solenoid valve
1шт.
10
A49487
SPRING
coil
1шт.
11
NSS
NOT SOLD SEPARAT
PLUNGER solenoid
1шт.
12
NSS
NOT SOLD SEPARAT
PIN roll, spool retaining
1шт.
13
NSS
NOT SOLD SEPARAT
CAGE soleniod
1шт.
14
NSS
NOT SOLD SEPARAT
SPOOL solenoid pressure
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING, 1-11/16 inch ID
1шт.
16
131-60
LOCK NUT,5/8"-18
NUT heavy hex, self-locking, 5/8 inch NF
1шт.
A156471
VALVE
DUEL RANGE SOLENOID ASSEMBLY, Includes Ref. 17 - 35, 24 speed transmission
2шт.
17
A49482
CARTRIDGE
SOLENOID CARTRIDGE ASSEMBLY, Includes Ref. 18 - 29, duel range 24 speed transmission
1шт.
A49485
SEAL
KIT Service, solenoid seals, duel range 24 speed transmission, Includes Ref. 18 - 24
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING rubber, duel range 24 speed transmission
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING rubber, duel range 24 speed transmission
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING rubber, duel range 24 speed transmission
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING rubber, duel range 24 speed transmission
1шт.
22
NSS
NOT SOLD SEPARAT
RING back up, duel range 24 speed transmission
1шт.
23
NSS
NOT SOLD SEPARAT
RING back up, duel range 24 speed transmission
1шт.
24
NSS
NOT SOLD SEPARAT
RING retaining, duel range 24 speed transmission
1шт.
25
NSS
NOT SOLD SEPARAT
TUBE solenoid valve, duel range 24 speed transmission
1шт.
26
A49484
SPRING
solenoid, duel range 24 speed transmission
1шт.
27
NSS
NOT SOLD SEPARAT
PLUNGER solenoid, duel range 24 speed transmission
1шт.
28
NSS
NOT SOLD SEPARAT
SPOOL solenoid, duel range 24 speed transmission
1шт.
29
NSS
NOT SOLD SEPARAT
CAGE solenoid, duel range 24 speed transmission
1шт.
30
A49483
COIL
SOLENOID COIL ASSEMBLY, Includes Ref. 31 and 32, duel range 24 speed transmission
1шт.
31
225-14108
NUT,#8-32
hex, No. 8 NC, duel range 24 speed transmission
2шт.
32
225-10110
NUT,#10-24
Duel range 24 speed transmission #10-24
2шт.
33
493-21026
LOCK WASHER,Int Tooth, 1/4"
WASHER lock, internal tooth 1/4 inch, duel range 24 speed transmission
1шт.
34
425-104
NUT,1/4"-20, Cl 5
hex, 1/4 inch NC, duel range 24 speed transmission
1шт.
35
NSS
NOT SOLD SEPARAT
PIN roll, spool retaining, duel range 24 spped transmission
1шт.
Выбрано товаров: 39
