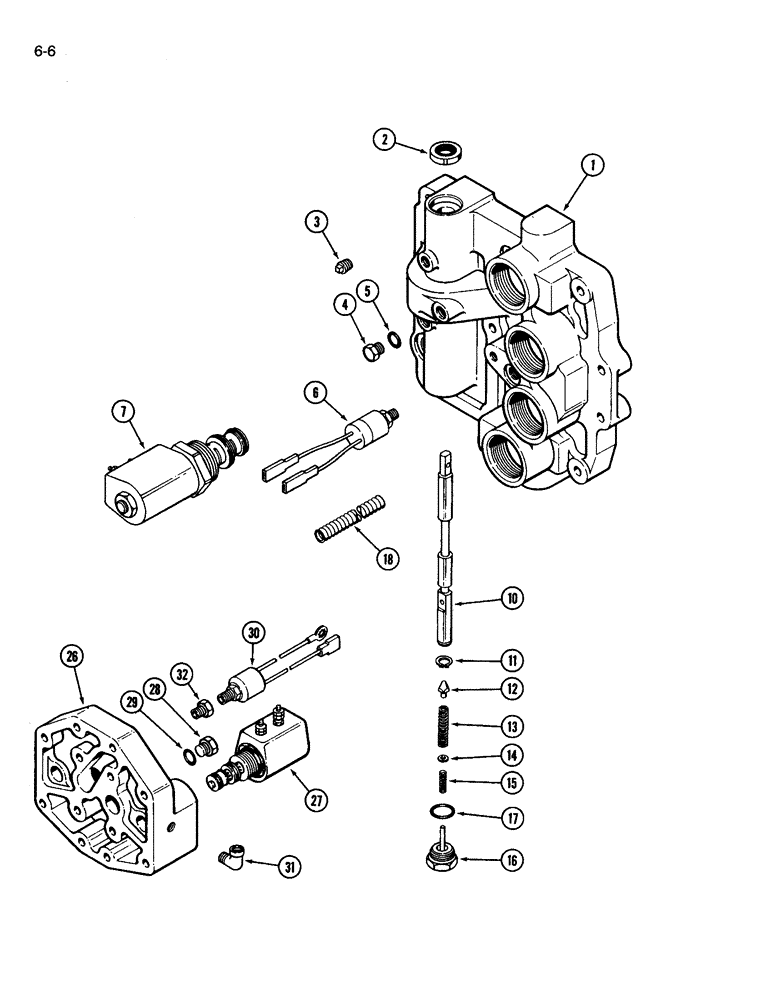

Запчасти Case IH 3594 (6-006) - HYDRAULIC MANIFOLD ASSEMBLY (06) - POWER TRAIN

1

A158337

MANIFOLD

electric shift

1шт.

2

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

oil, electric shift

1шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

hex socket, 1/8 inch PT, electric shift

1шт.

4

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 5, Electric shift Hex Hd, 7/16"-20 ORB

5шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Electric shift

1шт.

6

A156555

SWITCH

pressure, oil, electric shift

3шт.

7

A160899

VALVE

SOLENOID VALVE ASSEMBLY, See Figure 6-008, electric shift

4шт.

10

A151914

SPOOL

modulator, Includes Ref. 11, electric shift

1шт.

11

G46176

SNAP RING,#56, Ext

Ring, Snap, , electric shift #56, Ext

1шт.

12

A61991

POINT

modulator, electric shift

1шт.

13

A60155

SPRING

primary, modulator, electric shift

1шт.

14

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

spring guide, electric shift

1шт.

15

A61988

SPRING

secondary, modulator, electric shift

1шт.

16

A61985

PLUG

modulator, Includes Ref. 17, electric shift

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Electric shift

1шт.

18

A168840

CONDUIT

convoluted, Order A181759, electric shift

1шт.

26

A168960

TUBE ASSY.

MANIFOLD duel range, 24 speed transmission

1шт.

27

A156471

VALVE

SOLENOID VALVE ASSEMBLY, See Figure 6-008, duel range 24 speed transmission

2шт.

28

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 29, Duel range 24 speed transmission Hex Hd, 7/16"-20 ORB

2шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Duel range 24 speed transmission

1шт.

A156759

HARNESS

solenoid ground, See Figure 4-022, duel range 24 speed transmission

1шт.

30

A176755

SWITCH

pressure, oil, duel range 24 speed transmission

2шт.

31

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

street, 90 degree, 1/8 inch PT, duel range 24 speed transmission

1шт.

32

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

ADAPTOR brass, 1/8 x 1/8 inch, duel range 24 speed transmission

1шт.
