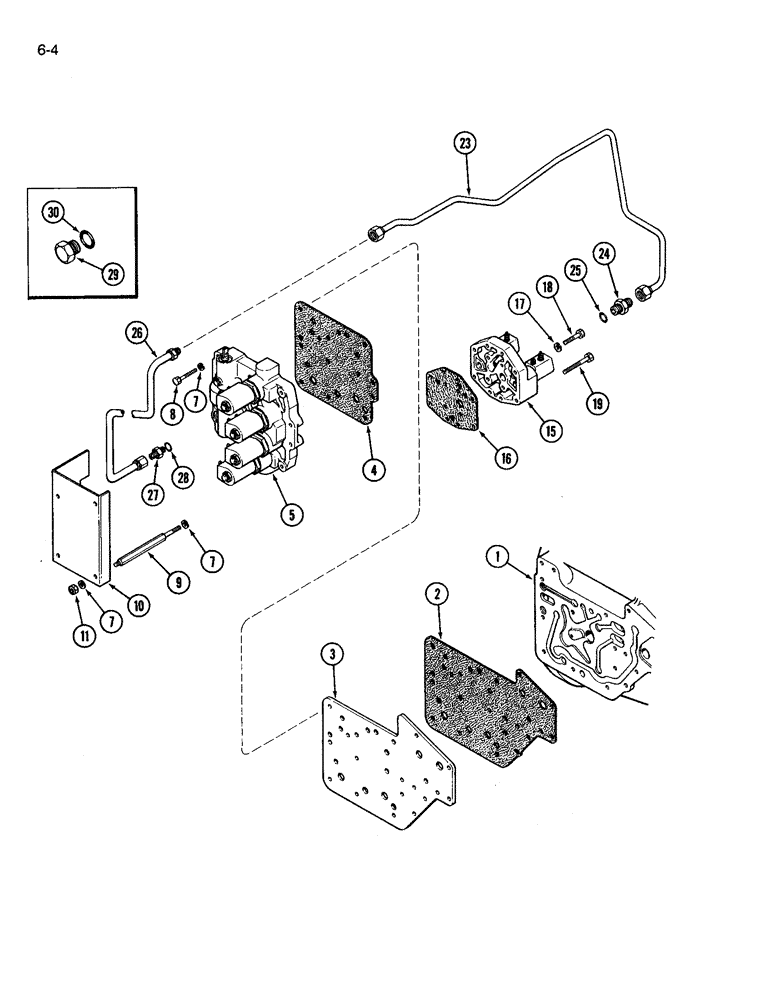

Запчасти Case IH 3594 (6-004) - HYDRAULIC MANIFOLD MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

TUBE torque, See Figure 6-002, electric shift

1шт.

2

1342414C1

MANIFOLD GASKET

plate, Replaces A158395, electric shift

1шт.

3

A158396

PLATE

manifold, electric shift

1шт.

4

1342415C1

MANIFOLD GASKET

manifold, Replaces A158498, electric shift

1шт.

5

REF

INSTRUCTION

MANIFOLD ASSEMBLY, See Figure 6-006, electric shift

1шт.

7

192-81003

LOCK WASHER,3/8"

WASHER, LOCK, , Electric shift 3/8"

14шт.

8

113-2240

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

Electric shift Hex, 3/8"-16 x 2 1/8", G5

6шт.

9

A168325

STUD

manifold cover, electric shift

4шт.

10

A160836

COVER

solenoid, electric shift

1шт.

11

425-106

NUT,3/8"-16, Cl 5

Electric shift 3/8"-16, G5

4шт.

15

REF

INSTRUCTION

DUEL RANGE MANIFOLD ASSEMBLY, See Figure 6-006, 24 speed transmission

1шт.

16

1342411C1

MANIFOLD GASKET

manifold, Replaces A156552, duel range 24 speed transmission

1шт.

17

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Duel range 24 speed transmission 5/16"

12шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Dual range, 24 speed transmission

6шт.

19

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC, duel range, 24 speed transmission

6шт.

23

A180069

TUBE

DUEL RANGE TUBE ASSEMBLY, left, 24 speed transmission

1шт.

24

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 25, duel range 24 speed transmission

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Dual range 24 speed transmission

1шт.

26

A163235

TUBE

DUEL RANGE TUBE ASSEMBLY, right, 24 speed transmission

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Inlcudes Ref. 28, duel range 24 speed transmission

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Duel range 24 speed transmission

1шт.

29

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 30, Used with 12 and 24 speed transmission, Duel range

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Duel range 24 speed transmission

1шт.
