Запчасти Case IH 3594 (5-030) - FRONT WHEELS, 8 BOLT (05) - STEERING

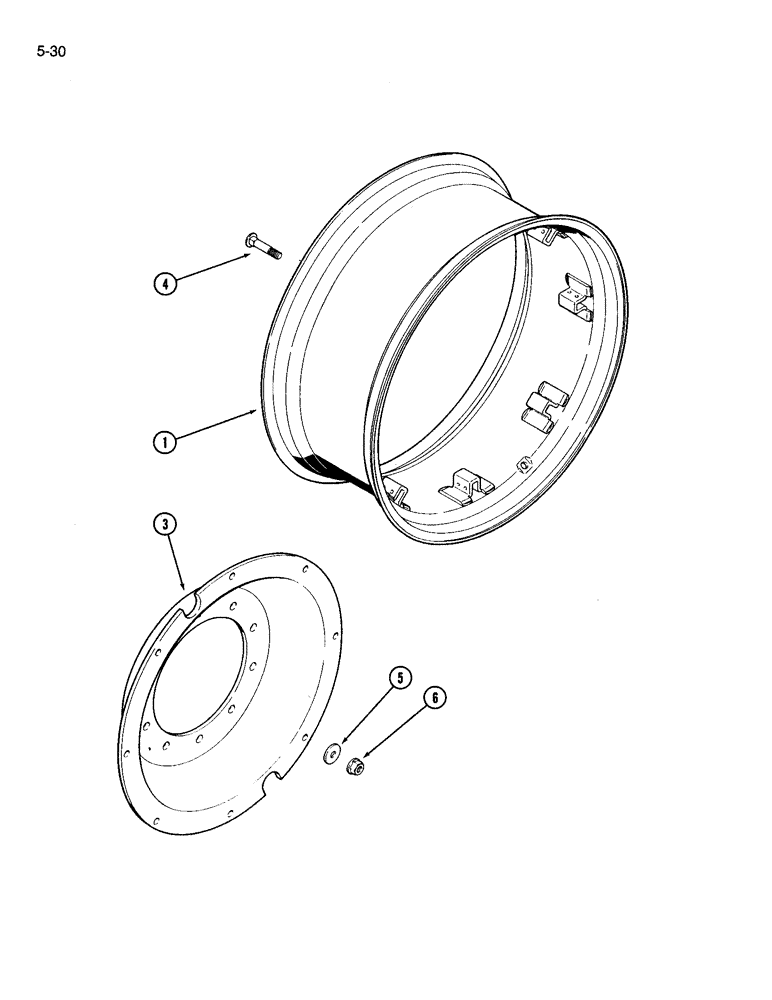

Схема запчастей Case IH 3594 - (5-030) - FRONT WHEELS, 8 BOLT (05) - STEERING
6
5
1
3
4

Артикул

Название

Примечание

Количество

1

A185508

RIM

front, W12 x 28, for 13.6 and 14.9 tires, 28 inch

2шт.

1

A185509

RIM

front, W15 x 28, for 16.9 and 18.4 tires, 28 inch

2шт.

3

A185507

DISC

wheel, 28 inch

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 28 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, 28 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

hex, flange, 5/8 inch NC, 28 inch wheels

16шт.

1

A185510

RIM

front, W15 x 26, for 16.9 and 18.4 tires, 26 inch

2шт.

3

A185506

DISC

wheel, 26 inch

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, , 26 inch wheels Short NK, 5/8"-11 x 3 1/4", G5

16шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

16шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

hex, flange, 5/8 inch NC, 26 inch wheels

16шт.

Выбрано товаров: 11
