Запчасти Case IH 3594 (5-028) - FRONT WHEELS, 6 BOLT (05) - STEERING

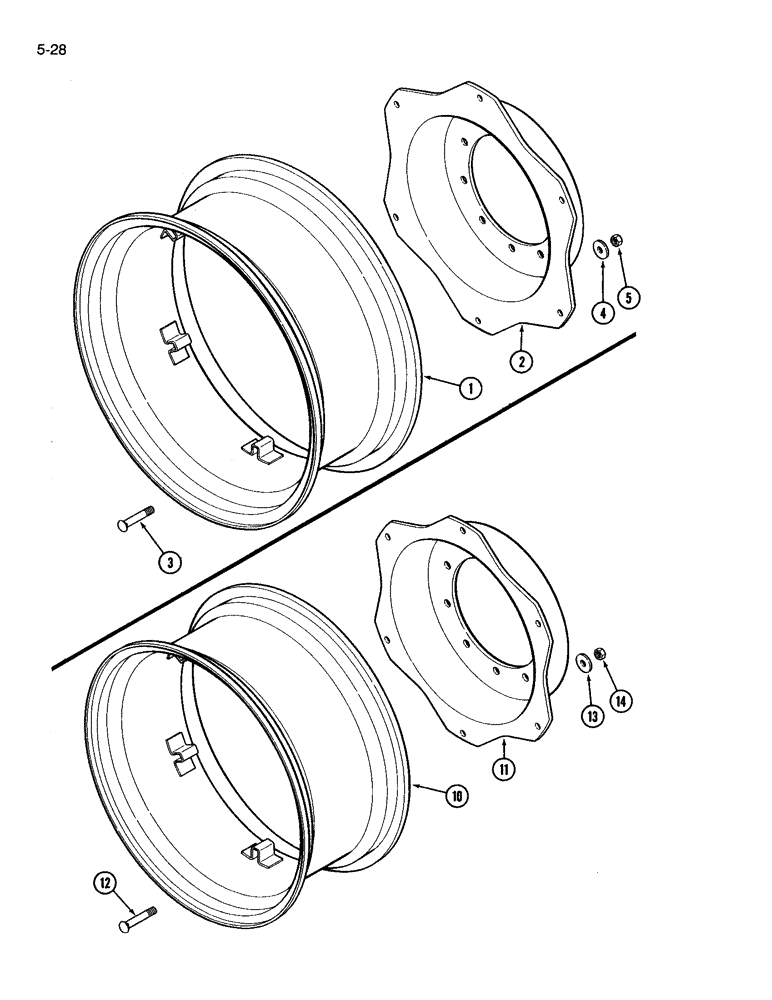

Схема запчастей Case IH 3594 - (5-028) - FRONT WHEELS, 6 BOLT (05) - STEERING
11
2
4
5
18
3
12
1
13
14

Артикул

Название

Примечание

Количество

1

A169611

RIM

front, W12 x 28, for 13.6 and 14.9 tires, 28 inch

2шт.

1

A169612

RIM

front, W15 x 28, for 16.9 tires, 28 inch

2шт.

2

A169609

DISC, WHEEL

DISC wheel, 28 inch

2шт.

3

433-1052

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT round head square head, 5/8 NC x 3-1/4 inch, 28 inch wheels

12шт.

4

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, 28 inch wheels

12шт.

5

425-1010

NUT,5/8"-11, G5

28 inch wheels 5/8"-11, G5

12шт.

10

A169614

RIM

front, W15 x 26, for 16.9 and 18.4 tires, 26 inch

2шт.

11

A169610

DISC, WHEEL

DISK wheel, 26 inch

2шт.

12

433-1052

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT round head square neck, 5/8 NC x 3-1/4 inch, 26 inch wheels

12шт.

13

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

12шт.

14

425-1010

NUT,5/8"-11, G5

26 inch wheels 5/8"-11, G5

12шт.

Выбрано товаров: 11
