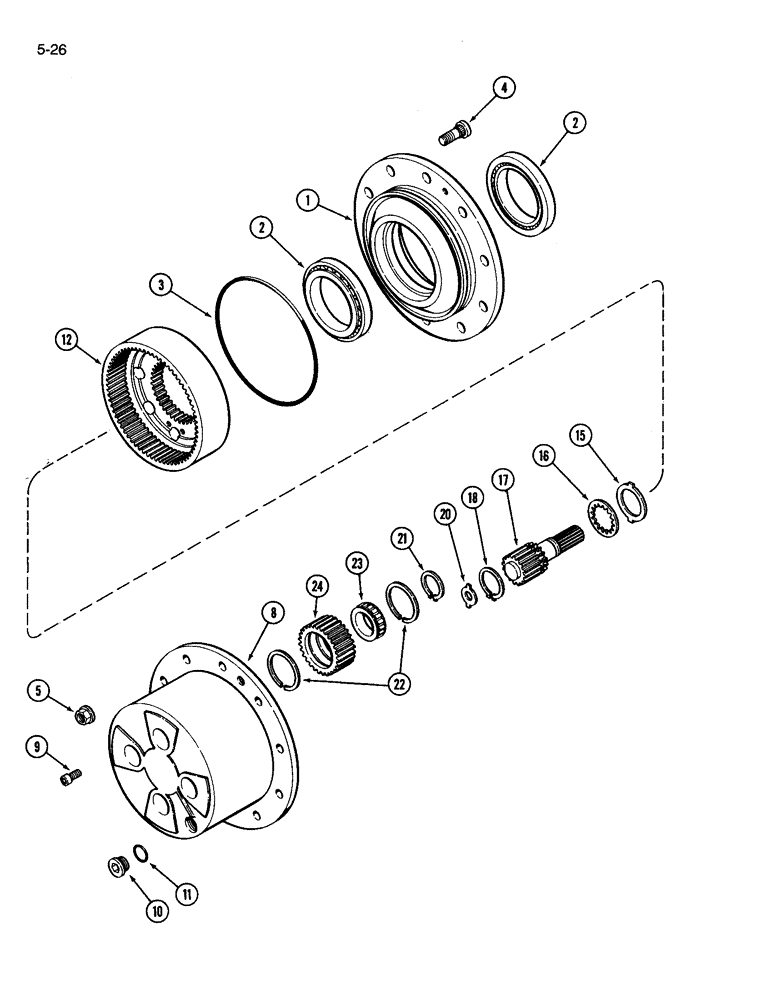

Запчасти Case IH 3594 (5-026) - FRONT AXLE PLANETARIES AND HUB (05) - STEERING

A169533

AXLE

ASSEMBLY, front, complete, Includes Ref. 1 - 24

1шт.

1

A52127

HUB CAP

HUB planetary

2шт.

2

A52377

BEARING ASSY,120mm ID x 170mm OD x 27mm W

BEARING roller

4шт.

3

A52132

O-RING,255 mm ID x 4 mm

hub sealing

2шт.

4

A52136

BOLT (SPREADER)

BOLT wheel, 20 mm x 63 mm

20шт.

5

A52137

NUT

hex flange, 20 mm

20шт.

8

A52369

HOUSING

CARRIER planetary

2шт.

9

A52150

HEX SOC SCREW

SCREW hex socket, 12 mm

4шт.

10

A52148

PLUG

hex socket, 30 mm

2шт.

11

A52368

SEAL

O-RING plug

2шт.

12

A52367

PINION

GEAR internal, planetary

2шт.

15

A52140

WASHER

thrust

2шт.

16

NLS

NO LONGER SERVICED

thrust

2шт.

17

A52390

SHAFT

GEAR sun, Replaces A52139

2шт.

18

A52142

RING

retaining, sun gear

2шт.

20

A52191

WASHER

thrust, 1.5 mm

1шт.

20

A52192

WASHER

thrust, 2.0 mm

1шт.

20

A52193

WASHER

thrust, 2.5 mm

1шт.

20

A52194

WASHER

thrust, 3.0 mm

1шт.

20

A52195

WASHER

thrust, 1.7 mm

1шт.

20

A52196

WASHER

thrust, 2.2 mm

1шт.

21

A52147

RING

retaining, bearing

8шт.

22

A52146

RING

retaining

16шт.

23

A52145

ROLLER BEARING,50 mm ID x 75.2 mm OD x 25 mm

roller

8шт.

24

A52391

GEAR WHEEL

PINION planetary, Replaces A52144

8шт.
