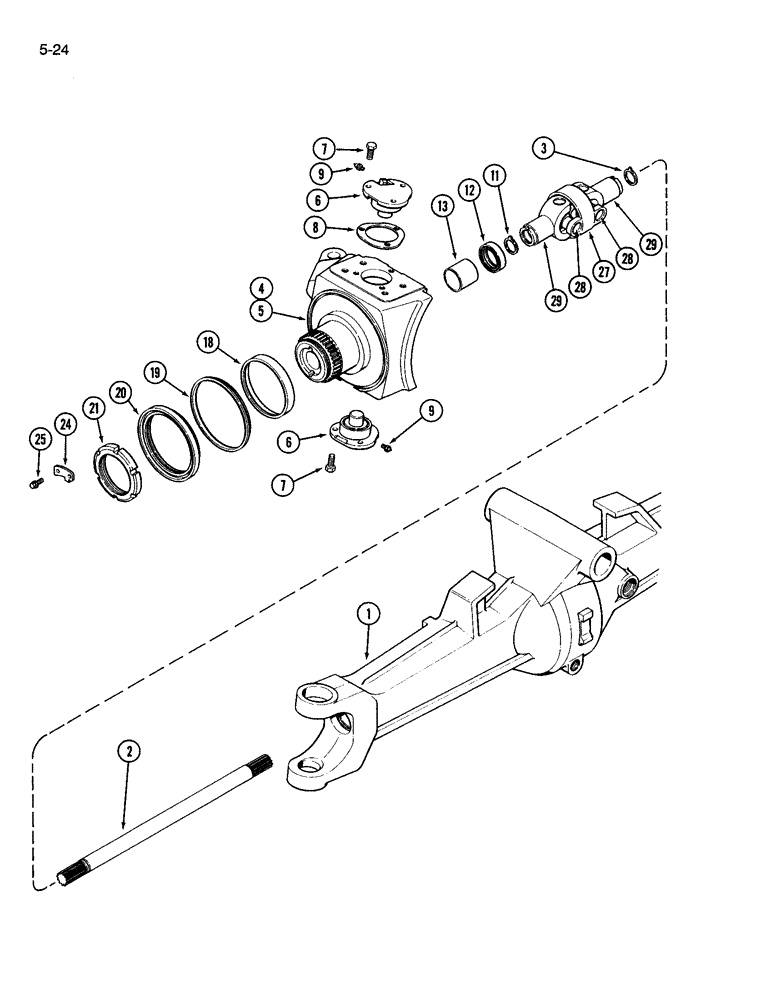

Запчасти Case IH 3594 (5-024) - FRONT AXLE STEERING KNUCKLE AND SHAFT (05) - STEERING
№
Артикул
Название
Примечание
Количество
A169533
AXLE
ASSEMBLY, front, complete, Includes Ref. 1 - 29
1шт.
1
REF
INSTRUCTION
HOUSING axle, See Figure 5-016
1шт.
2
A52098
SHAFT
axle
2шт.
3
A52126
RING
retaining
2шт.
4
A52108
KNUCKLE JOINT
KNUCKLE steering, right
1шт.
5
A52107
KNUCKLE JOINT
KNUCKLE steering, left
1шт.
6
A52364
PIN
king
4шт.
7
A52122
BOLT,Hex, M14 x 35mm
BOLT hex, 14 mm x 35 mm
12шт.
8
A52362
SHIM,0.4mm Thk
Pivot 0.4mm Thk
1шт.
8
A52115
SHIM,0.6mm Thk
Pivot 0.6mm Thk
1шт.
8
A52363
SHIM,0.8mm Thk
Pivot 0.8mm Thk
1шт.
8
A52116
SHIM,1.0mm Thk
Pivot 1.0mm Thk
1шт.
8
A52117
SHIM,1.4mm Thk
Pivot 1.4mm Thk
1шт.
8
P50843
CYLINDER END CAP
Pivot 1.6mm Thk
1шт.
8
A52119
SHIM,1.8mm Thk
Pivot 1.8mm Thk
1шт.
8
A52120
SHIM,2.0mm Thk
Pivot 2.0mm Thk
1шт.
9
A52371
FITTING
grease, 6 mm thread
4шт.
11
A52126
RING
retaining
2шт.
12
1968314C1
SEAL
U-joint
2шт.
13
1968316C1
BUSHING,56mm ID x 60mm OD x 40mm L
SLEEVE bearing
2шт.
18
A52128
SLEEVE CYLINDER
SLEEVE axle
2шт.
19
A52130
RING
scraper
2шт.
20
A52129
SEAL
shaft
2шт.
21
A52365
NUT
ring, slotted
2шт.
24
A52366
PLATE, LOCKING
PLATE lock
2шт.
25
A52135
FLANGE BOLT
BOLT hex flange, 10 mm x 20 mm
4шт.
Ref Joint Assy---A52389. if you required grease zerks---- straight zerk is A52236, 90 degree is 713608R91.
1шт.
27
1342230C1
UNIVERSAL JOINT
YOKE center
1шт.
For service on joint assembly with one lubrication fitting on center yoke
1шт.
27
1342233C1
FORK
YOKE center
1шт.
For service on joint assembly with two lubrication fittings in center yoke.
1шт.
28
1342231C1
U-JOINT SPIDER
CROSS BEARING ASSEMBLY
2шт.
29
1342232C1
YOKE
end
2шт.
For service on joint assembly with one lubrication fitting on center yoke
1шт.
29
1342235C1
FORK
YOKE end
2шт.
For service on joint assembly with two lubrication fittings in center yoke.
1шт.
Выбрано товаров: 37
