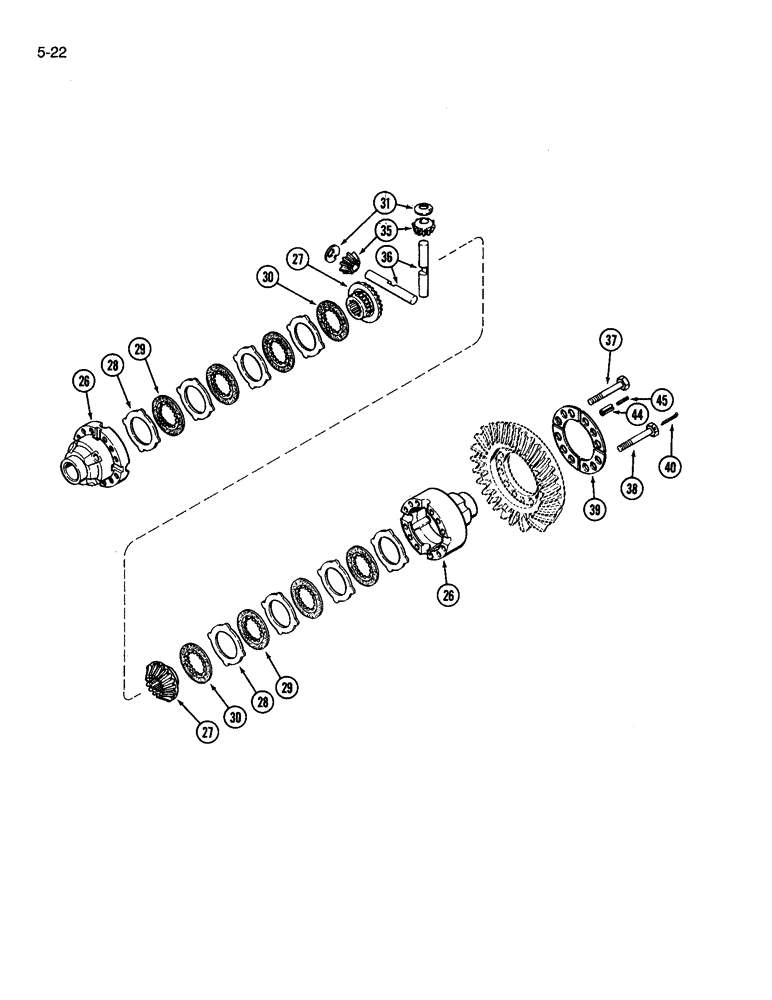

Запчасти Case IH 3594 (5-022) - FRONT AXLE DIFFERENTIAL (05) - STEERING

A169533

AXLE

ASSEMBLY, front, complete, Includes Ref. 26 - 45

1шт.

A52075

SLIP RING

DISK ASSEMBLY, differential limited slip, Includes Ref. 26 - 45

1шт.

26

A52076

CASE

differential axle

1шт.

27

A52083

GEAR WHEEL

GEAR side, differential

2шт.

28

A52388

DISC

DISK slip, outer

8шт.

29

A52078

DISK HARROW

DISK slip, inner

6шт.

30

A52080

DISC

DISK thrust, 3.0 mm

1шт.

30

A52081

DISK HARROW

DISK thrust, 2.9 mm

1шт.

30

A52082

DISK HARROW

DISK thrust, 2.8 mm

1шт.

31

A52085

WASHER

thrust, differential pinion

4шт.

35

A52084

GEAR WHEEL

GEAR differential pinion

4шт.

36

A52086

SHAFT

pinion

2шт.

37

A52087

BOLT

BOLT hex, 12 mm x 90 mm

4шт.

38

A52088

BOLT

BOLT hex, 12 mm x 90 mm, drilled

8шт.

39

A52089

PLATE ASSY.

PLATE lock, differential gear

4шт.

40

632-582

COTTER PIN,M2 x 25

PIN cotter, 2 mm x 25 mm

4шт.

44

A52090

AXLE PIN

PIN roll, 12 x 28 mm

4шт.

45

A52092

AXLE PIN

PIN roll, 7 x 30 mm

4шт.
