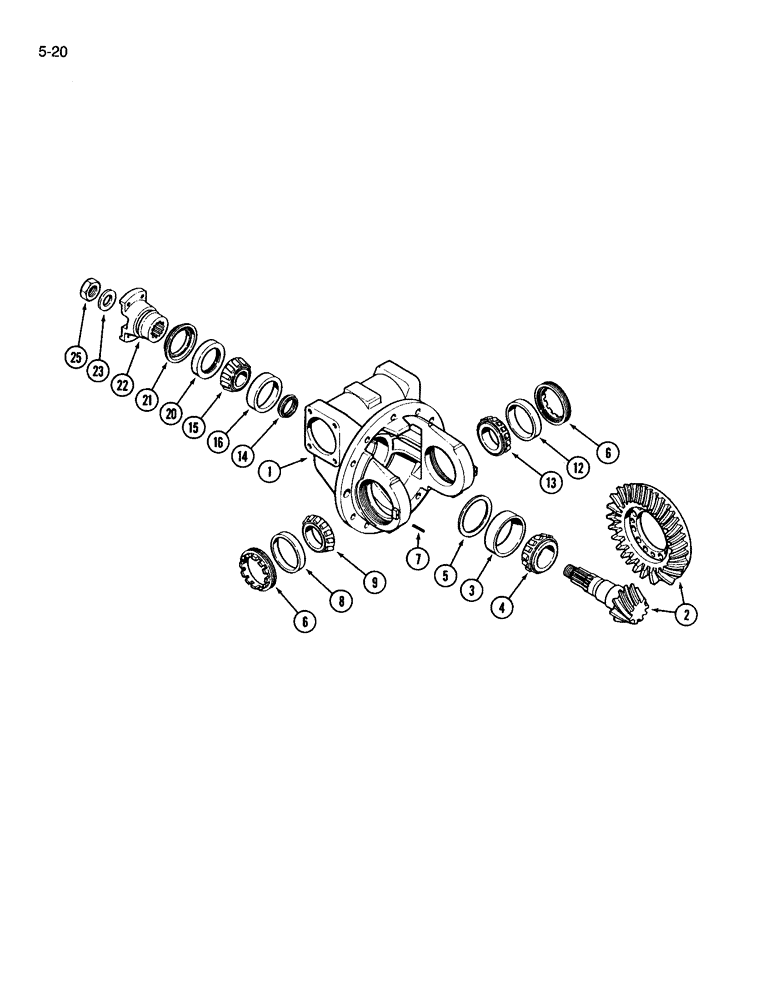

Запчасти Case IH 3594 (5-020) - FRONT AXLE DIFFERENTIAL (05) - STEERING

A169533

AXLE

ASSEMBLY, front, complete, Includes Ref. 1 - 25

1шт.

1

A52052

CARRIER

differential

1шт.

2

A52311

GEAR-SET

SET Gear, differemtial pinion

1шт.

3

107577R1

BEARING, CUP

CUP pinion shaft bearing

1шт.

4

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE pinion shaft bearing

1шт.

5

A52062

SHIM,0.1mm Thk

Bearing 0.1mm Thk

1шт.

5

A52061

SHIM,0.2mm Thk

Bearing 0.2mm Thk

1шт.

5

A52060

SHIM,0.3mm Thk

Bearing 0.3mm Thk

1шт.

5

A52059

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

6

A52067

BEARING LOCK NUT

adjusting, differential bearing

2шт.

7

A52091

AXLE PIN

PIN roll, 6 x 30 mm

2шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP bearing

1шт.

9

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE bearing, 2-1/4 inch ID

1шт.

12

A52064

CUP ASSY.

CUP bearing, Order 105503H and 90-3581T1

1шт.

13

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

CONE bearing

1шт.

14

A52055

SLEEVE CYLINDER

SLEEVE pinion shaft

1шт.

15

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

CONE bearing

1шт.

16

530745R1

BEARING, CUP

1шт.

20

A52068

SEAL

oil

1шт.

21

A52073

SEAL

COVER pinion gear

1шт.

22

A52072

FLANGE

drive

1шт.

23

A52069

WASHER

pinion nut

1шт.

25

A52070

NUT

hex, 26 mm

1шт.
