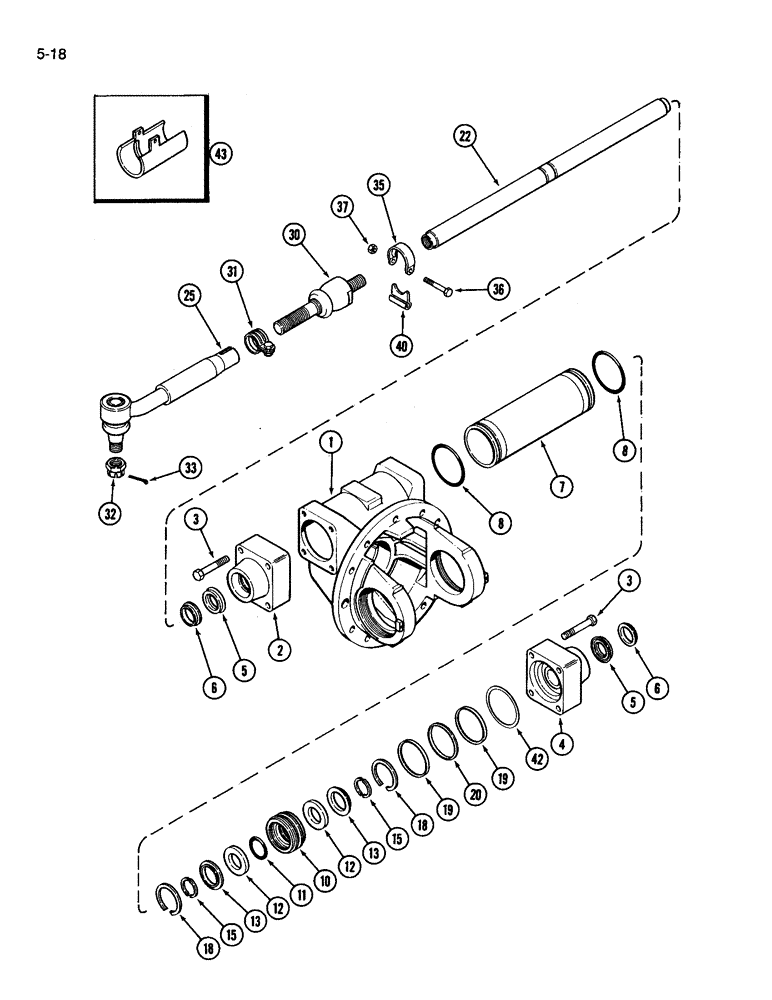

Запчасти Case IH 3594 (5-018) - FRONT AXLE TIE RODS AND STEERING CYLINDER (05) - STEERING

A169533

AXLE

ASSEMBLY, front, complete, Includes Ref. 1 - 43

1шт.

1

REF

INSTRUCTION

CARRIER differential, See Figure 5-020

1шт.

2

A52153

GUIDE

rod, cylinder, right hand

1шт.

3

A52154

BOLT

BOLT hex, 14 mm x 75 mm

8шт.

4

A52184

GUIDE

rod, cylinder, left

1шт.

5

A52156

RING

grooved, cylinder

2шт.

6

A52370

SCRAPER RING

RING scrapper, cylinder

2шт.

7

A52151

CYLINDER BLOCK

CYLINDER steering

1шт.

8

A52152

O-RING,86 mm ID x 3 mm

86 mm ID, cylinder

2шт.

10

A52158

PISTON ASSY.

PISTON cylinder

1шт.

11

A52159

O-RING,39.2 mm ID x 5.7 mm

32.9 x 5.7 mm, piston

1шт.

12

A52160

RING

DISK cylinder

2шт.

13

A52161

CLIP

ring

2шт.

15

A52162

RING

split, 2 halves

2шт.

18

A52163

SNAP RING

RING retaining, cylinder piston

2шт.

19

A52165

RING

scraper

2шт.

20

A52164

RING

sealing, cylinder

1шт.

22

A52157

ROD

cylinder piston

1шт.

25

A52374

ROD

TIE ROD ASSEMBLY, right, Includes Ref. 30, 31, 32 and 33

1шт.

25

A52373

ROD

TIE ROD ASSEMBLY, left, right shown, Includes Ref. 30 - 33

1шт.

30

A52166

JOINT TURNING

AXLE TIE ROD JOINT ASSEMBLY

1шт.

31

A52312

CLAMP

TIE ROD CLAMP ASSEMBLY

1шт.

32

A52079

NUT

castle, 27 mm

1шт.

33

632-206

COTTER PIN,M5 x 45

PIN cotter, 5 x 45 mm

1шт.

35

A52189

PLATE ASSY.

PLATE stop

2шт.

36

CASA52187

BOLT (SPREADER)

BOLT hex, 8 mm x 60 mm,Large head

2шт.

37

A52188

NUT

hex, 8 mm

2шт.

40

A52186

PLATE ASSY.

PLATE spacing

2шт.

42

A52359

SHIM,0.7mm Thk

Cylinder 0.7mm Thk

1шт.

42

A52360

SHIM,0.8mm Thk

Cylinder 0.8mm Thk

1шт.

42

A52361

SHIM,0.9mm Thk

Cylinder 0.9mm Thk

1шт.

42

A52167

SHIM,1.0mm Thk

Cylinder 1.0mm Thk

1шт.

42

A52176

SHIM,1.05mm Thk

Cylinder 1.05mm Thk

1шт.

42

A52168

SHIM,1.1mm Thk

Cylinder 1.1mm Thk

1шт.

42

A52177

SHIM,1.15mm Thk

Cylinder 1.15mm Thk

1шт.

42

A52169

SHIM,1.2mm Thk

Cylinder 1.2mm Thk

1шт.

42

A52178

SHIM,1.25mm Thk

Cylinder 1.25mm Thk

1шт.

42

A52170

SHIM,1.3mm Thk

Cylinder 1.3mm Thk

1шт.

42

A52179

SHIM,1.35mm Thk

Cylinder 1.35mm Thk

1шт.

42

A52171

SHIM,1.4mm Thk

Cylinder 1.4mm Thk

1шт.

42

A52180

SHIM,1.45mm Thk

Cylinder 1.45mm Thk

1шт.

42

A52172

SHIM,1.5mm Thk

Cylinder 1.5mm Thk

1шт.

42

A52181

SHIM,1.55mm Thk

Cylinder 1.55mm Thk

1шт.

42

A52173

SHIM,1.6mm Thk

Cylinder 1.6mm Thk

1шт.

42

A52182

SHIM,1.65mm Thk

Cylinder 1.65mm Thk

1шт.

42

A52174

SHIM,1.7mm Thk

Cylinder 1.7mm Thk

1шт.

42

A52183

SHIM,1.75mm Thk

Cylinder 1.75mm Thk

1шт.

42

A52175

SHIM,1.8mm Thk

Cylinder 1.8mm Thk

1шт.

43

A180195

STOP

SPACER stop

2шт.
