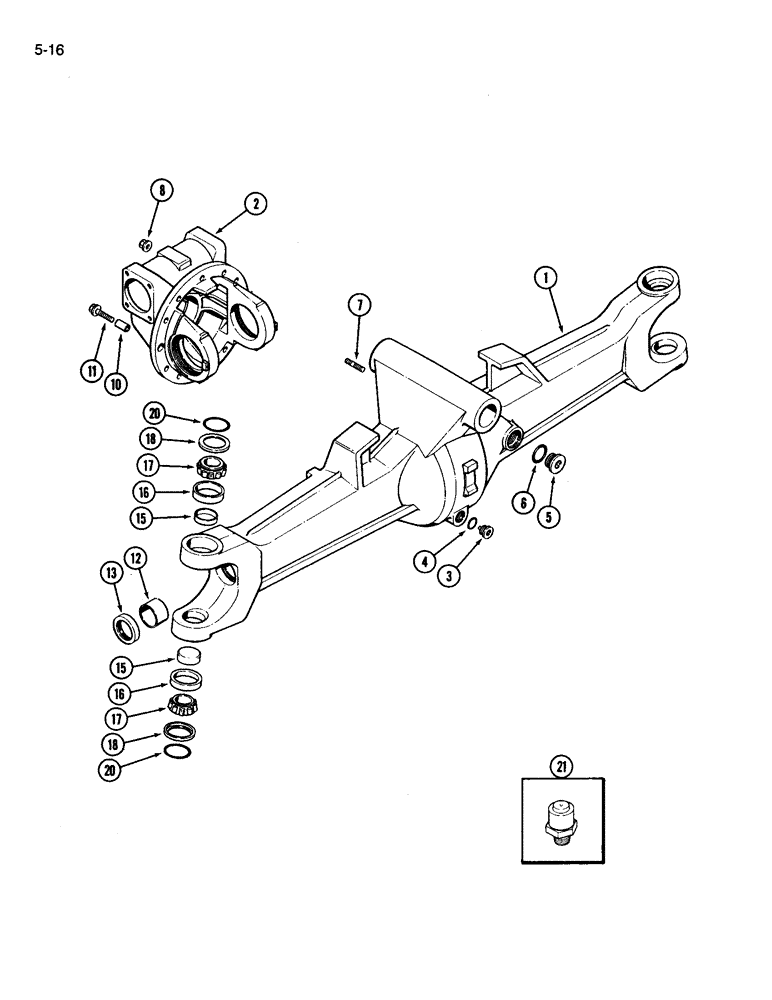

Запчасти Case IH 3594 (5-016) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER (05) - STEERING

A169533

AXLE

ASSEMBLY, front, complete, Includes Ref. 1 - 21

1шт.

1

A52093

HOUSING

axle

1шт.

2

REF

INSTRUCTION

CARRIER differential, See Figure 5-020

1шт.

3

A48804

PLUG

hex socket, 24 mm thread

1шт.

4

A52097

O-RING,2mm Thk x 21mm ID

plug

1шт.

5

A48791

PLUG

hex socket, 42 mm thread

1шт.

6

A52372

O-RING,2.5mm Thk x 38mm ID

plug

1шт.

7

A52101

STUD

carrier to housing, 14 mm x 55 mm

5шт.

8

A52103

NUT

hex, 14 mm

5шт.

10

A52099

SLEEVE CYLINDER

SLEEVE differential housing

1шт.

11

A52094

FLANGE BOLT

BOLT hex flange

5шт.

11

A52095

FLANGE BOLT

BOLT hex flange, 14 mm x 55 mm

2шт.

12

1968315C1

BUSHING

SLEEVE bearing

2шт.

13

1968314C1

SEAL

U-joint

2шт.

15

A52109

CAP COVER

CAP seal

4шт.

16

131312C1

BEARING CUP

CUP bearing

4шт.

17

871244R1

ROLLER BEARING

CONE bearing

4шт.

18

A52112

SEAL

CAP sealing

4шт.

20

A52113

O-RING,57 mm ID

steering pivot

4шт.

21

A48855

VALVE

breather

1шт.
