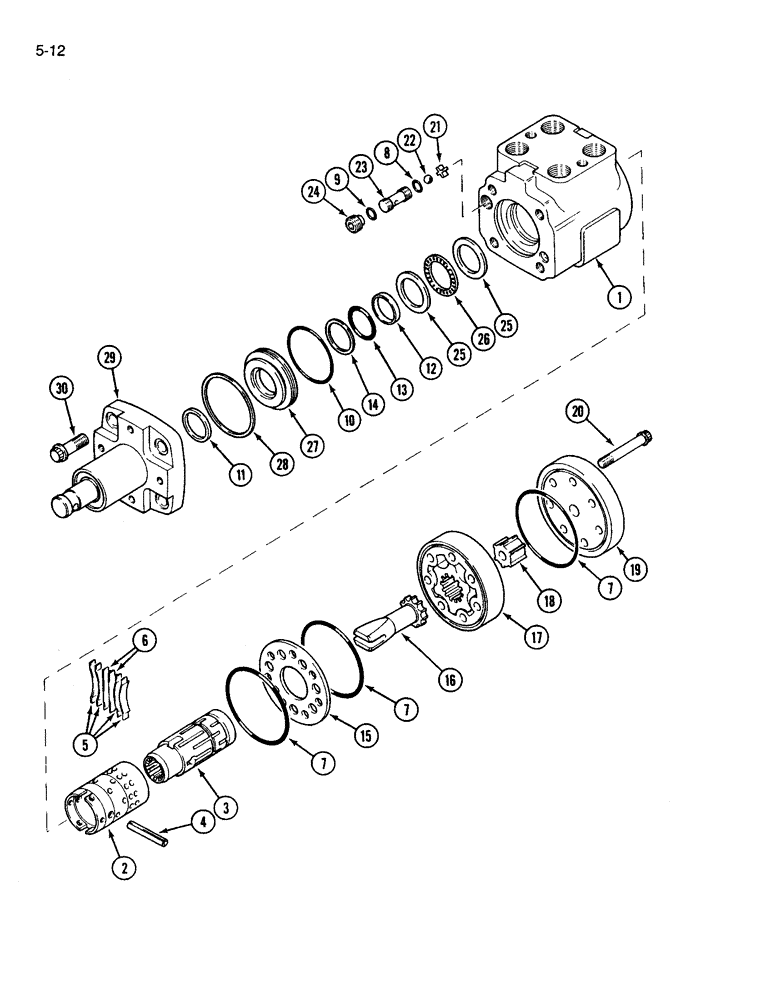

Запчасти Case IH 3594 (5-012) - HYDROSTATIC STEERING PUMP, EATON (05) - STEERING

1978332C3

PUMP

STEERING PUMP ASSEMBLY, Replaces A162639, Includes Ref. 1 - 30

1шт.

1346273C1

HOUSING ASSY.

PUMP HOUSING ASSEMBLY, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING pump, Order 1346273C1

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE control, Order 1346273C1

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control, Order 1346273C1

1шт.

4

L30888

PIN

centering

1шт.

N14250

KIT

Centering Spring, Includes Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING centering, Order N14250

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER spring, Order N14250

2шт.

1343658C2

SEAL KIT

KIT Service, seals, Includes Ref. 7 - 11

1шт.

7

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL end cap

3шт.

8

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 inch ID

1шт.

9

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

10

102569A1

VALVE POPPET

SEAL, 1-7/8 inch ID

1шт.

11

697494R91

OIL SEAL

SEAL, 1 inch ID

1шт.

12

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon

1шт.

13

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

14

50-2703T1

BACK-UP RING

RING backup

1шт.

15

S113037

PLATE

spacer

1шт.

16

L30878

DRIVE SHAFT

DRIVE gerotor

1шт.

17

1343637C1

GEAR-SET

PUMP GEROTOR ASSEMBLY

1шт.

18

1343645C1

SPACER

gerotor

1шт.

19

D82809

COVER

CAP end

1шт.

20

1343640C1

12 PT SCREW,Flg, 5/16" - 24 x 2 1/4", Gr 8

BOLT, 12 Pt Flg, 5/16"-18 x 2 1/4", G8

7шт.

21

L35368

RETAINER

check ball

1шт.

22

211-208

BALL,5/16" Dia

5/16 inch, grade 25, chrome alloy steel

1шт.

23

D82806

VALVE SEAT

SEAT check ball

1шт.

24

D82805

SET SCREW

SCREW set

1шт.

25

D82804

RACE

thrust bearing

2шт.

26

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

1шт.

27

N13312

CYLINDER END CAP

BUSHING seal gland

1шт.

28

S110169

WASHER

RING retaining

1шт.

29

1343647C1

HOUSING

PUMP COLUMN ASSEMBLY

1шт.

30

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.
