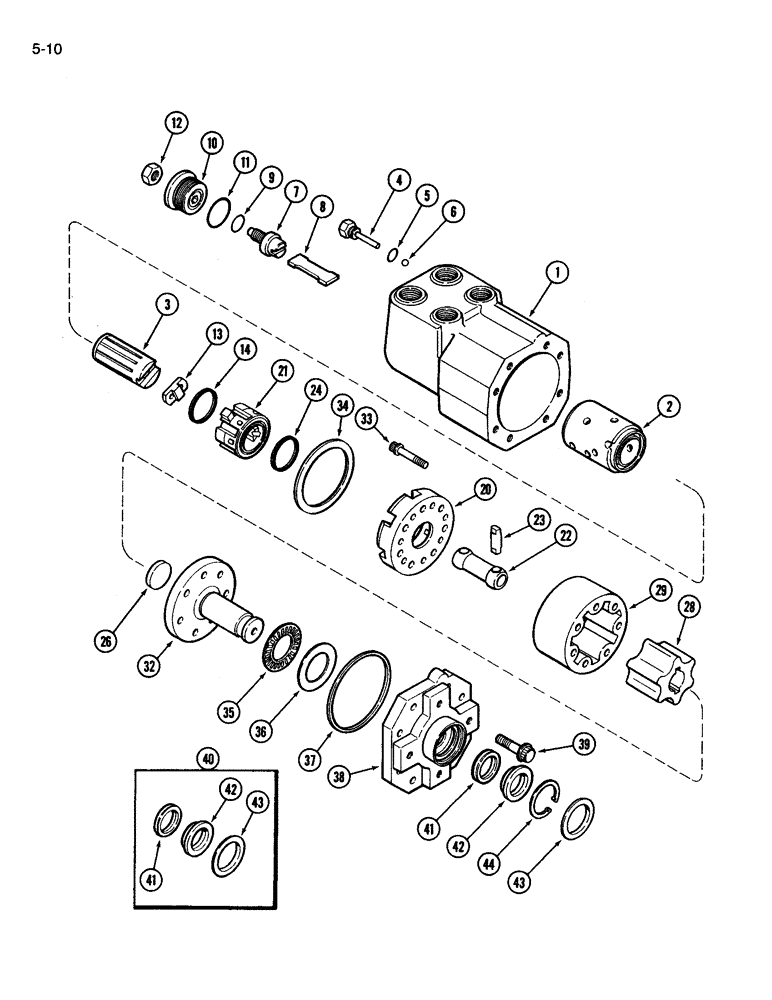

Запчасти Case IH 3594 (5-010) - HYDROSTATIC STEERING PUMP, TRW (05) - STEERING

A162639

PUMP

STEERING PUMP ASSEMBLY, Includes Ref. 1 - 44

1шт.

Order pump assembly P/N 1978332C3. Also order (1) spacer P/N A187198, (4) bolts P/N 413-544 and (4) lockwashers P/N 492-11031

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE AND SPOOL HOUSING ASSEMBLY, Includes Ref. 2 and 3

1шт.

Order pump assembly P/N 1978332C3. Also order (1) spacer P/N A187198, (4) bolts P/N 413-544 and (4) lockwashers P/N 492-11031

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE valve spool

1шт.

Order pump assembly P/N 1978332C3. Also order (1) spacer P/N A187198, (4) bolts P/N 413-544 and (4) lockwashers P/N 492-11031

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

Order pump assembly P/N 1978332C3. Also order (1) spacer P/N A187198, (4) bolts P/N 413-544 and (4) lockwashers P/N 492-11031

1шт.

4

A47019

PLUG

PUMP PLUG AND PIN ASSEMBLY, Includes Ref. 5

1шт.

5

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

211-207

BALL

9/32 inch, grade 25, chrome alloy steel

1шт.

7

A45194

ADJUSTMENT SCREW

ADJUSTING SCREW ASSEMBLY, Includes Ref. 8

1шт.

8

A45196

FAN

BLADE torsion

2шт.

9

A45195

O-RING,0.556" ID x 0.073"

adjusting screw

1шт.

10

A47006

PLUG

ADJUSTING SCREW PLUG ASSEMBLY, Includes Ref. 11

1шт.

11

A47005

O-RING,1.053" ID

1-3/64 ID x 7/64 inch

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

13

A47668

RING

drive

1шт.

14

A47421

SEALING RING

SLEEVE SEAL ASSEMBLY

1шт.

A47419

MANIFOLD

PUMP MANIFOLD ASSEMBLY, Includes Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD pump, Order A47419

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR pump, Order A47419

1шт.

22

A48140

LINK

drive

1шт.

23

F19636

PIN

lock

2шт.

24

A47421

SEALING RING

MANIFOLD SEAL ASSEMBLY

1шт.

26

A48141

SPACER

rotor

1шт.

NLS

NO LONGER SERVICED

SET Rotor, pump, Includes Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR pump, Order A48139

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR pump, Order A48139

1шт.

32

A48138

SHAFT

input

1шт.

33

A48132

SCREW,1/4" x 1 5/8"

cap, manifold, stator and shaft

7шт.

34

A160850

WASHER

manifold

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING thrust

1шт.

A48143

WASHER

KIT Thrust Washers, Includes Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.047 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.053 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.059 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.065 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.071 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.077 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.083 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.089 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.095 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER thrust, 0.101 inch

1шт.

37

A47004

RING

seal

1шт.

38

A47016

COVER

pump, upper

1шт.

39

A48131

SCREW,1/4" x 1"

cap, upper

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT Seal, Includes Ref. 41, 42 and 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

shaft

1шт.

44

S300917

SNAP RING

RING snap

1шт.
