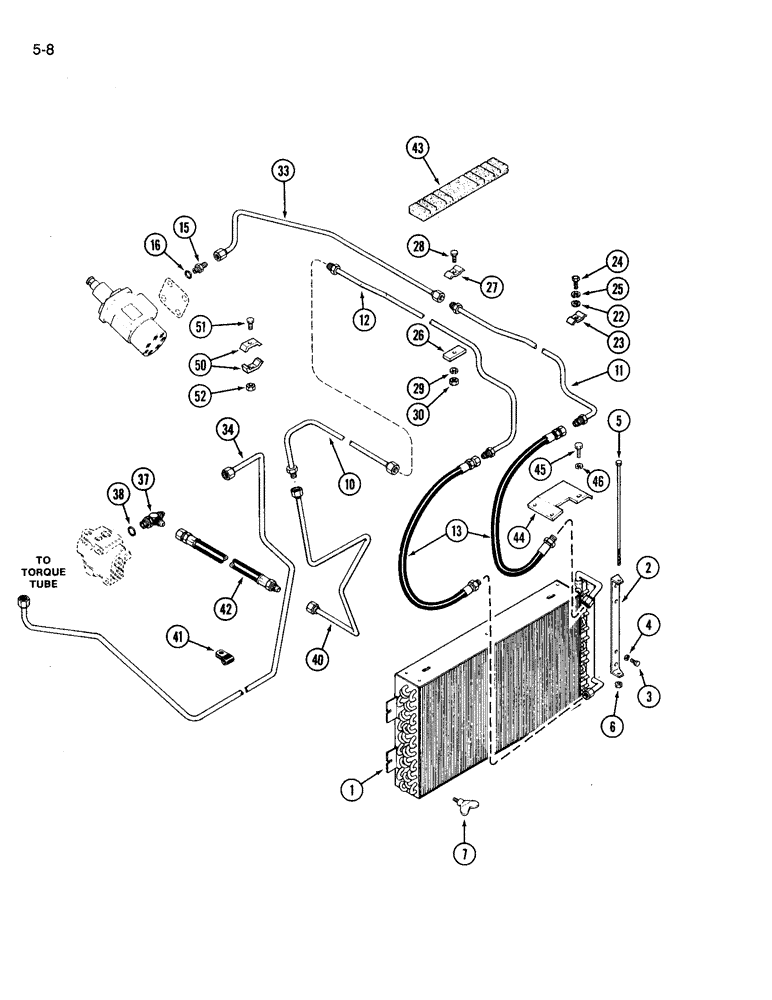

Запчасти Case IH 3594 (5-008) - OIL COOLER SYSTEM (05) - STEERING

1

A160190

COOLER

oil, transmission

1шт.

2

A160194

SUPPORT

BRACKET pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

413-4204

BOLT,Hex, 1/4" - 20 x 12-3/4", Gr 5

hex, 1/4 NC x 12-3/4 inch

1шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

thumb, 5/16 inch NC

2шт.

10

A164595

TUBE ASSY.

TUBE center section, oil cooler outlet

1шт.

11

A166581

TUBE ASSY.

TUBE inlet, oil cooler

1шт.

12

A166580

TUBE ASSY.

TUBE outlel, oil cooler

1шт.

13

A36162

TUBE

HOSE inlet and outlet

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

1шт.

23

A63323

CLAMP

tube

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

A60864

PLATE

tube clamp

1шт.

27

A63323

CLAMP

tube

2шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

33

A147897

TUBE

steering pump

1шт.

34

A177715

TUBE ASSY.

TUBE brake, Serial Range: valve-sump

1шт.

37

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch flare branch x flare x adj O-ring boss, Includes Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

A185461

TUBE

oil cooler return, Replaces A181563

1шт.

41

49836

CLAMP

tube

2шт.

42

A181905

HOSE,0.75" ID x 23.00"

SAE J516 - Oil cooler return 0.75" ID x 23.00"

1шт.

43

A149298

SEAL

cooler and air conditioning tubes

1шт.

44

A145791

COVER

tubes

1шт.

45

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

2шт.

46

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

A60224

CLAMP

tube

2шт.

52

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

24

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

51

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
