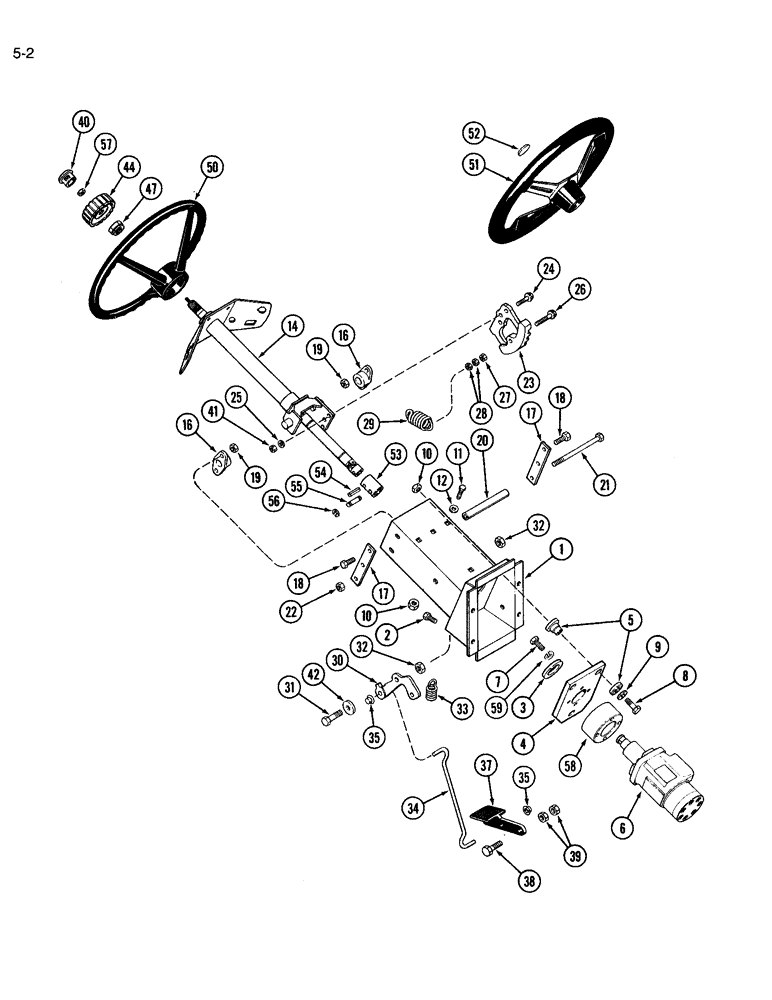

Запчасти Case IH 3594 (5-002) - STEERING WHEEL AND ADJUSTABLE COLUMN (05) - STEERING

1

A167112

SUPPORT

steering column

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW self-tapping, hex washer head, 3/8 NC x 5/8 inch

4шт.

3

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

steering pump mounting

1шт.

4

A164625

PLATE

mounting, steering pump

1шт.

5

A141515

ISOLATOR

MOUNT steering pump

3шт.

6

REF

INSTRUCTION

HYDROSTATIC STEERING PUMP ASSEMBLY, See Figures 5-010 and 5-012

1шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Used with pump A162639 Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

7

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch, Used with pump 1978332C3

4шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

3шт.

9

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

3шт.

10

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

2шт.

11

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW self-tapping, hex washer head, 3/8 NC x 5/8 inch

2шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

REF

INSTRUCTION

STEERING COLUMN ASSEMBLY, See Figure 5-004

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

column pivot

2шт.

17

A143314

STRAP

support brace

2шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

19

131-1281

LOCK NUT,Jam, 5/16"-18

NUT hex, jam, self-locking, 5/16 inch NC

4шт.

20

A143315

BUSHING

SPACER column support

1шт.

21

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

hex, 5/16 NC x 6 inch

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

23

A169439

PLATE

QUADRANT column tilt

1шт.

24

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

hex flange head, 3/8 NC x 2 inch

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

2шт.

29

A143316

SPRING

tilt return

1шт.

30

A169260

LATCH

column tilt

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

33

A64125

SPRING

tilt latch

1шт.

34

A164787

ROD

tilt latch

1шт.

35

A165668

CAP

Tinnerman

2шт.

37

A165426

PEDAL

column tilt

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

353-413

PLUG,Dome, 1.187" hole, Nylon

nylon, 1-3/16 inch

1шт.

41

425-106

NUT,3/8"-16, Cl 5

3шт.

42

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

44

A141827

CAP

KNOB lock, steering wheel

1шт.

47

F19646

LOCK NUT,13/16"-20, Thin

NUT lock, wheel

1шт.

50

A65544

STEERING WHEEL

(Hard vinyl)

1шт.

51

A167953

WHEEL

steering, leather, Order A65544

1шт.

52

A180055

CAP ASSY.

INSERT steering wheel

1шт.

53

A147291

COUPLING

, Serial Range: U-joint-pump

1шт.

54

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

55

A64000

PIN,9.42mm OD x 38.1mm L

, Serial Range: pump-shaft

1шт.

56

100-3437

SNAP RING,#37, Ext

RING, SNAP, #37, Ext

2шт.

57

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

1шт.

58

A187198

WASHER

SPACER steering pump, used with pump 1978332C3

1шт.

59

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
