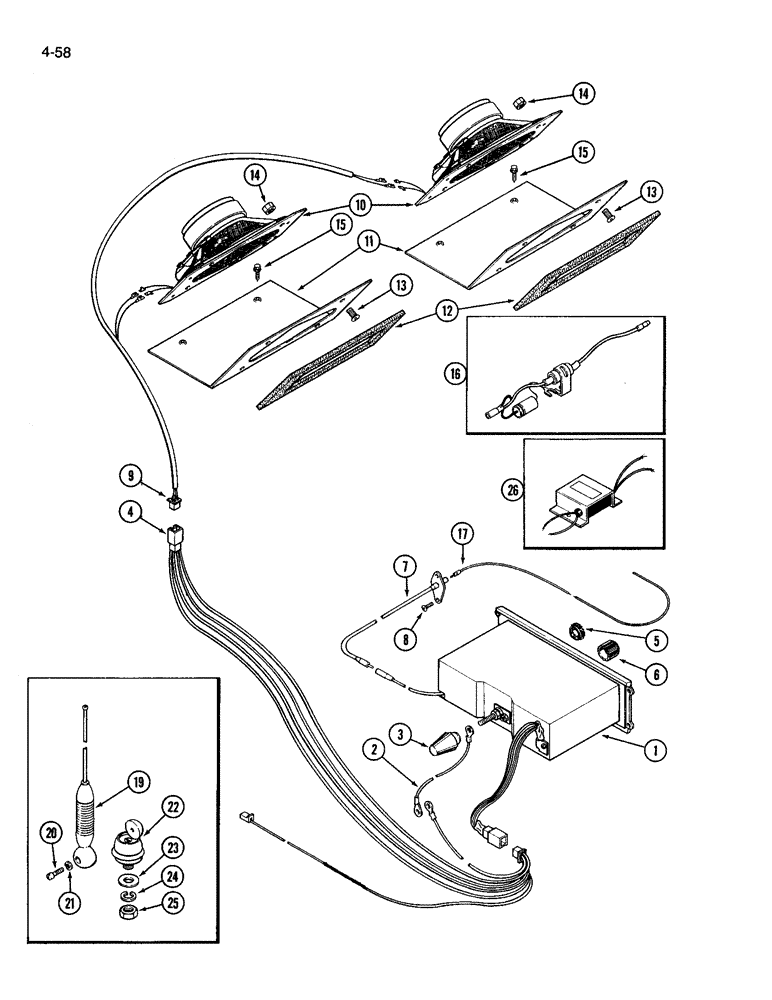

Запчасти Case IH 3594 (4-058) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A180796

RADIO

KIT Radio, AM, headliner mounted and speakers

1шт.

1

A180797

RADIO

KIT Radio, AM-FM stereo, headliner mounted and speakers

1шт.

1

A180798

RADIO

KIT Radio, AM-FM stereo, with cassette tape player, Includes Ref. 2 - 6, headliner mounted and speakers

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE radio ground, headliner mounted and speakers

1шт.

3

NSS

NOT SOLD SEPARAT

NUT retaining, headliner mounted radio and speakers

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS radio wire, headliner mounted and speakers

1шт.

5

A180058

KNOB

control, volume, headliner mounted radio and speakers

1шт.

6

A180059

KNOB

control, tuning, headliner mounted radio and speakers

1шт.

7

F64799

CABLE

antenna, headliner mounted radio and speakers

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW tapping, round x-recess, No. 10-16 x 3/4 inch, Order 265-16512 and F64315, headliner mounted radio and speakers

2шт.

9

F66160

HARNESS

speaker leads, headliner mounted radio

1шт.

10

1983202C1

SPEAKER

radio, Replaces F66124, headliner mounted

2шт.

11

F64667

PLATE

speaker mounted, headliner

2шт.

12

F64793

SEAL

GASKET speaker sealing, headliner mounted radio

2шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

machine, pan head Phillips, No. 10 NC x 3/4 inch, headliner mounted radio and speakers

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , Headliner mounted radio and speakers #10-24, GB

8шт.

15

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW self-tapping, hex washer head, No. 10-16 x 1/2 inch, headliner mounted radio and speakers

4шт.

16

F64184

CAPACITOR

noise, headliner mounted radio and speakers

1шт.

17

F64182

CABLE

aerial, headliner mounted radio and speakers

1шт.

97080C1

ANTENNA

AM/FM radio, Includes Ref. 19, 20 and 21, headliner mounted and speakers

1шт.

19

NSS

NOT SOLD SEPARAT

ANTENNA radio, headliner mounted and speakers

1шт.

20

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

slotted head, No. 10-32 x 5/8 inch, headliner mounted radio and speakers

1шт.

21

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, , Headliner mounted radio and speakers #10

1шт.

22

NSS

NOT SOLD SEPARAT

BASE antenna, headliner mounted radio and speakers

1шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Headliner mounted radio and speakers 1/2", SAE

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Headliner mounted radio and speakers 1/2"

1шт.

25

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF, headliner mounted radio and speakers

1шт.

26

A180120

FILTER

noise, headliner mounted radio and speakers

1шт.

1131878R1

RADIO

ATTACHMENT AM-FM radio, fender mounted with antenna, not shown, Replaces A164225

1шт.
