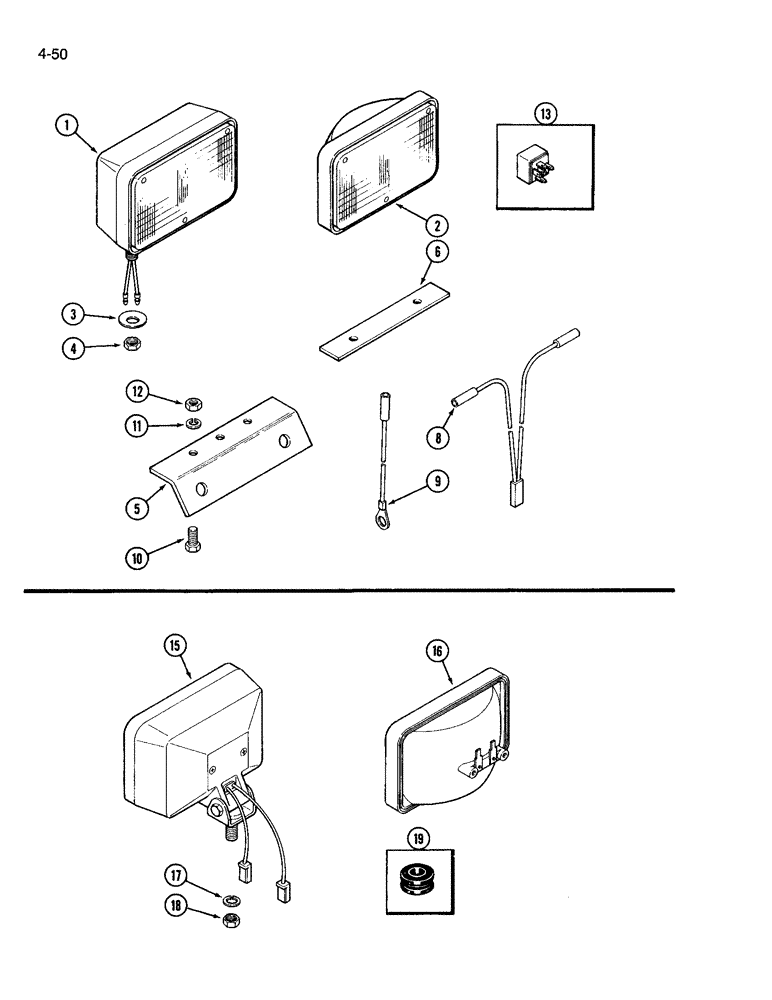

Запчасти Case IH 3594 (4-050) - FLOOD LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

A165462

LIGHT

KIT Flood Lamp, Order components, Includes Ref. 1 - 13, lower front

1шт.

1

A165192

LAMP

flood, Includes Ref. 2, lower front

2шт.

2

A48265

LAMP

sealed halogen unit, lower front

1шт.

3

D37049

WASHER

mounting, lower front

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Lower front 1/2"-13, G5

2шт.

5

A160889

BRACKET

mounting, lower front

2шт.

6

A22837

BUSHING

SPACER rear step, lower front

2шт.

8

A147345

HARNESS

lights, flood, lower front

1шт.

9

A147343

ELECTRICAL WIRE

WIRE ground, lower front

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Lower front Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

11

492-11038

LOCK WASHER,3/8"

Lower front 3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

Lower front 3/8"-16, G5

2шт.

13

A147176

RELAY

30 ampere, lower front

1шт.

15

A165347

LAMP

LIGHT flood, for service order A177347, Includes Ref. 16, cab or fender mounted

4шт.

16

A48265

LAMP

sealed halogen unit, cab or fender mounted flood

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Cab or fender mounted flood lamp 1/2"

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Cab or fender mounted flood lamp 1/2"-13, G5

4шт.

19

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

rear wire, cab or fender mounted flood lamp

2шт.
