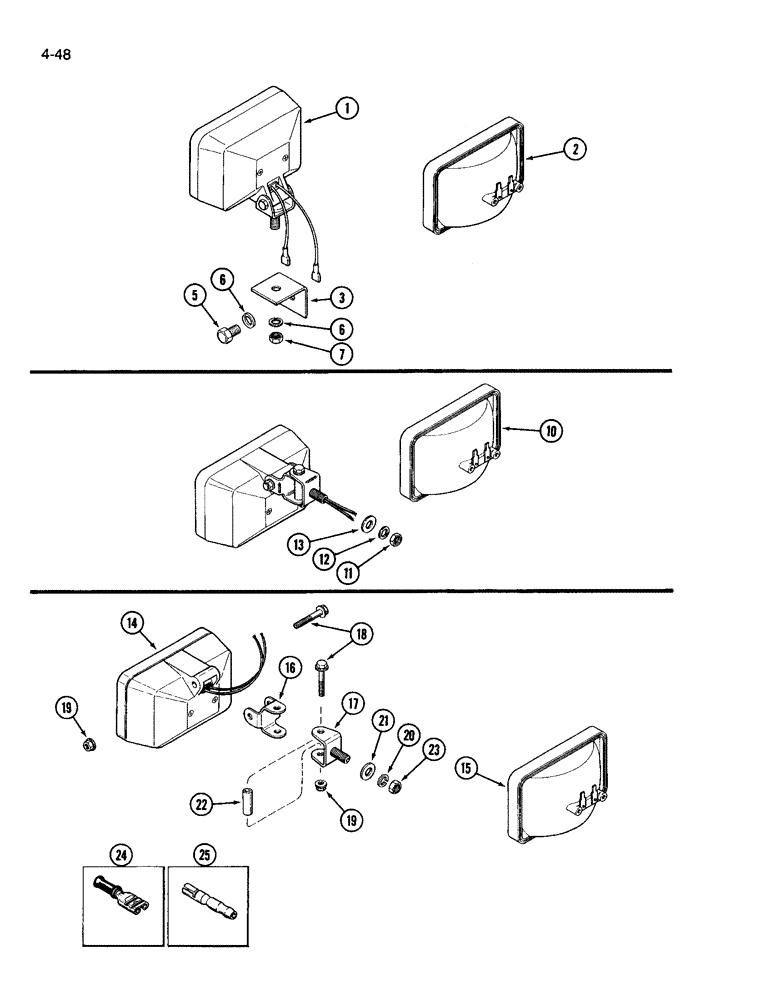

Запчасти Case IH 3594 (4-048) - FLOOD LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

A166652

LAMP

ATTACHMENT flood lamp, ROPS frame only, Order components, Includes Ref. 1 - 7, upper rear

1шт.

1

A165347

LAMP

LIGHT flood, for service order A177347, Includes Ref. 2, upper rear

1шт.

2

A48265

LAMP

sealed halogen unit, upper rear

1шт.

3

A166585

BRACKET

mounting, flood lamp, upper rear

1шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Upper rear Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Upper rear 1/2"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Upper rear 1/2"-13, G5

1шт.

A165065

LAMP

LIGHT flood, for service order A177347, Includes Ref. 10 - 13, upper rear

1шт.

10

A48265

LAMP

sealed halogen unit, upper rear

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Upper rear 1/2"-13, G5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Upper rear 1/2"

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Upper rear 1/2", SAE

1шт.

A177347

LAMP

KIT Lamp, service, Includes Ref. 14 - 25

1шт.

14

NSS

NOT SOLD SEPARAT

LIGHT flood, Includes Ref. 15

1шт.

15

A48265

LAMP

sealed halogen unit

1шт.

16

A52215

SUPPORT

BRACKET mounting, lamp

1шт.

17

A52216

SUPPORT

BRACKET mounting, lamp, Includes stud

1шт.

18

A52217

BOLT

hex flange, 5/16 NC x 2 inch

2шт.

19

A52218

NUT

hex flange, 5/16 inch NC

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

22

A52219

SPACER

bracket

1шт.

23

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

24

A177332

SPADE TERMINAL,Female

TERMINAL blade Female

2шт.

25

A52220

TERMINAL CONNECTOR,Male

TERMINAL bullet Male

2шт.
