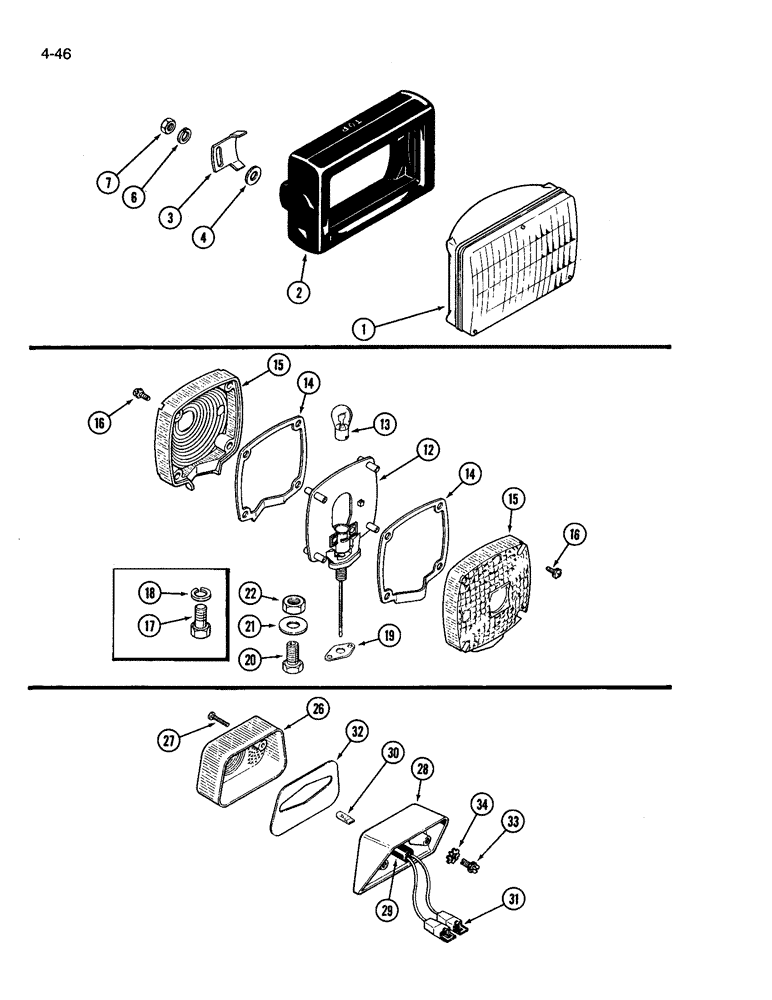

Запчасти Case IH 3594 (4-046) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

LIGHT head, sealed unit, No.4652

2шт.

2

A146354

MOUNTING PARTS

MOUNT rubber, head lamp

2шт.

3

A146355

CLAMP

CLIP mounting, head lamp

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Head lamp 1/4", SAE

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Head lamp 1/4"

4шт.

7

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC, head lamp

4шт.

F64683

SPACER

as shown in Figure 4-018, Ref. 31, flasher lamp

1шт.

A44201

LIGHT ASSY.

KIT Replacement, Includes Ref. 12 - 22, flasher lamp

2шт.

12

NSS

NOT SOLD SEPARAT

BODY lamp, flasher

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flasher #1156, 12V

1шт.

14

A43731

GASKET

sealing, lens, flasher lamp

2шт.

A44202

KIT

Lens, Includes Ref. 15 and 16, flasher lamp

1шт.

15

NSS

NOT SOLD SEPARAT

LENS lamp, flasher

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW self-tapping, round Phillips, No. 8 NC x 5/8 inch, flasher lamp

8шт.

17

424-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

hex, 1/4 Nc x 1/2 inch, Grade 1, flasher lamp

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Flasher lamp 1/4"

2шт.

19

F63435

GASKET

lamp base, flasher

1шт.

20

A45118

STUD

universal light mount, flasher

1шт.

21

425-118

NUT,1/2"-20, G5

hex, 1/2 NF, flasher lamp

1шт.

22

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 1/8 inch, flasher lamp

1шт.

A143925

LAMP

LIGHT tail, Includes Ref. 26 - 34

2шт.

26

91929C1

LENS

red, tail lamp

1шт.

27

263-50416

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW self-tapping, pan head slotted, No. 8-18 x 1 inch, tail lamp

2шт.

28

A47052

BASE

light, tail

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET, Includes terminal, tail lamp

1шт.

30

D71346

TAIL LAMP,12V

BULB light, No. 168, tail

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR female, 1 contact, tail lamp

2шт.

32

A47055

GASKET

tail lamp

1шт.

33

281-34710

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 5/8"

SCREW self-taping, hex washer head, 1/4 NC x 5/8 inch, tail lamp

4шт.

34

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

tail lamp Ext-Int Tooth, 1/4"

4шт.
