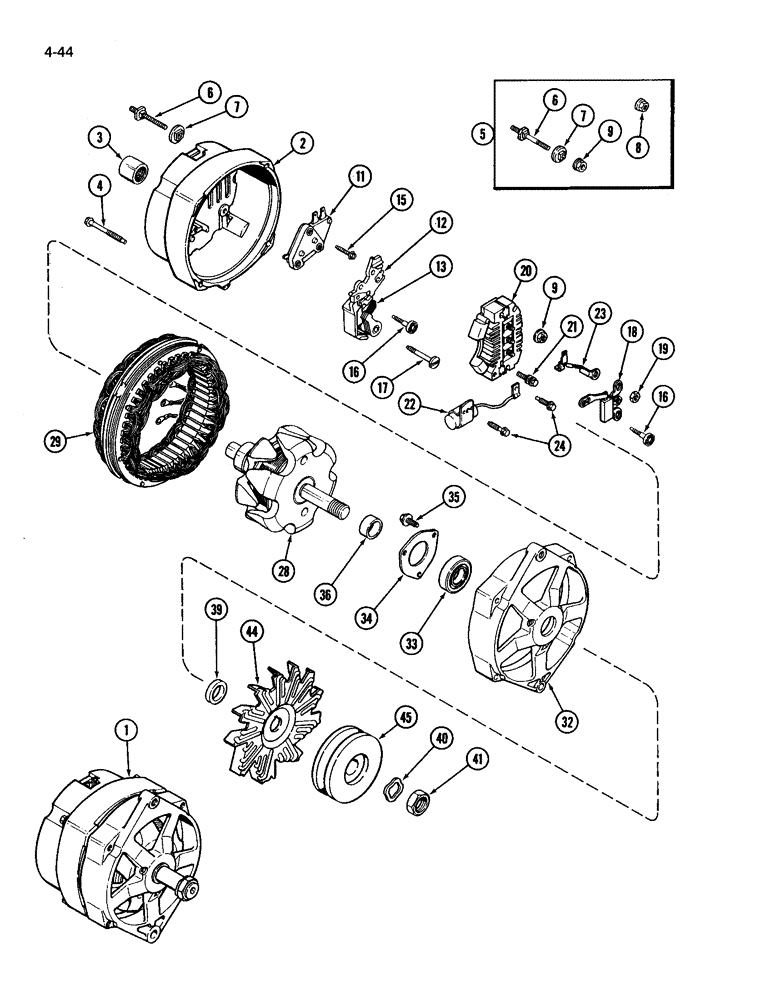

Запчасти Case IH 3594 (4-044) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

A164233

ALTERNATOR

ALTERNATOR ASSEMBLY, 105 ampere, Delco-Remy No. 11051540, J I Case installed, Order A163085, A164281 and L59716

1шт.

1

A163085

ALTERNATOR

ENGINE ALTERNATOR ASSEMBLY, service only, Includes Ref. 2 - 41

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A48252

FRAME

SLIP RING END FRAME ASSEMBLY, Includes Ref. 3

1шт.

3

A48253

ROLLER BEARING

BEARING roller

1шт.

4

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

SCREW machine, hex head, No. 10 NC x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

KIT Terminal, battery, Includes Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

TERMINAL NUT ASSEMBLY

1шт.

9

NSS

NOT SOLD SEPARAT

TERMINAL NUT ASSEMBLY

1шт.

11

A48249

REGULATOR

REGULATOR voltage, Order A45213

1шт.

12

A48256

HOLDER

BRUSH HOLDER ASSEMBLY, Includes Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

2шт.

17

A48257

SCREW,#8 - 32 x 1.486"

SCREW brush holder, retaining

1шт.

18

A48254

DIODE

DIODE trio

1шт.

19

225-14108

NUT,#8-32

NUT hex, No. 8 NC

3шт.

20

A48255

RECTIFIER

BRIDGE rectifier, alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW bridge retaining

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

23

A48258

TERMINAL CONNECTOR

TERMINAL relay

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket

2шт.

28

A48250

ROTOR

ALTERNATOR ROTOR ASSEMBLY

1шт.

29

A48251

STATOR

ALTERNATOR STATOR ASSEMBLY

1шт.

32

A48259

FRAME

FRAME drive end

1шт.

33

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING ball, drive end

1шт.

34

R15101

PLATE

PLATE bearing retainer

1шт.

35

A43699

SCREW,Hex, #10 - 24 x 0.52"

SCREW bearing plate, retaining, Order (1) 173-210 and (1) 195-512

3шт.

36

A48262

COIL

COLLAR rotor shaft, inner

1шт.

39

A48260

COLLAR

COLLAR rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A164281

FAN

FAN alternator ventilating

1шт.

45

L59716

PULLEY

PULLEY alternator

1шт.
