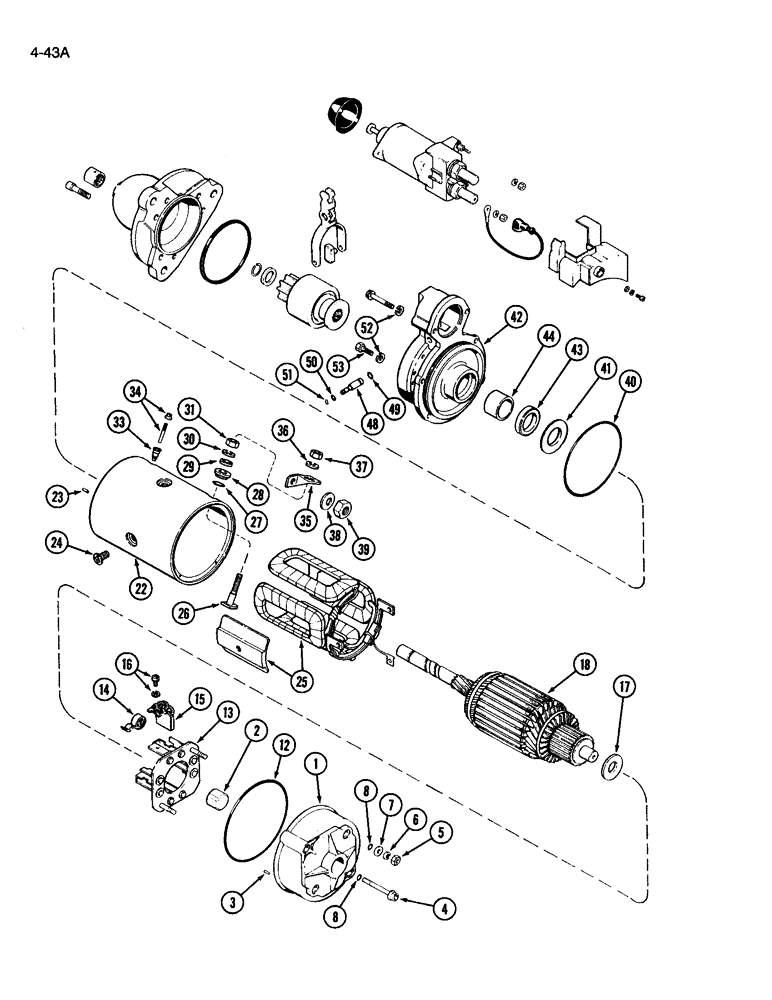

Запчасти Case IH 3594 (4-043A) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187728

STARTING MOTOR

ENGINE STARTER ASSEMBLY, Nippondenso 128000-5331, Includes Ref. 1 - 53

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

1

A187851

HOUSING

FRAME ASSEMBLY end, commutator, Includes Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

3

NSS

NOT SOLD SEPARAT

PIN dowel, locating

1шт.

4

31051R1

BOLT,Hex Flange, M6 x 1.0 x 60mm, Grade 8.8

BOLT hex flange, 6 x 60 mm

4шт.

5

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

NUT hex, flange, 6 mm

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER lock, 6 mm

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER flat, 6 mm

2шт.

8

A187857

O-RING,5.8 mm ID x 1.9 mm

O-RING sealing

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING frame

1шт.

13

A187852

BRUSH HOLDER

HOLDER, BRUSH BRUSH HOLDER ASSEMBLY, Includes Ref. 14

1шт.

14

A187823

SPRING

SPRING brush

4шт.

15

A187794

BRUSH, COMMUTATOR

BRUSH STARTER BRUSH ASSEMBLY

4шт.

16

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

SCREW slotted, 5 mm 0.8 x 12 mm

4шт.

17

A47813

WASHER

WASHER end, armature

1шт.

18

A187847

ARMATURE

STARTER ARMATURE ASSEMBLY

1шт.

22

A187846

HOUSING ASSY.

FIELD COIL HOUSING ASSEMBLY, Includes Ref. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

PIN dowel, locating

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW retaining, coil

4шт.

25

NSS

NOT SOLD SEPARAT

FIELD COIL ASSEMBLY

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL field

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING terminal

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING insulation

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER flat plate

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

31

NSS

NOT SOLD SEPARAT

NUT hex, terminal

1шт.

33

NSS

NOT SOLD SEPARAT

FIELD TERMINAL STUD ASSEMBLY

1шт.

34

A187862

FLANGE NUT

NUT hex, terminal

1шт.

35

A187858

FITTING

CONNECTOR terminal B

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

37

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

38

A187859

WASHER

WASHER wave

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING sealing, housing

1шт.

41

A187860

WASHER

WASHER plate, armature

1шт.

42

A187850

HOUSING

LEVER HOUSING ASSEMBLY, Includes Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL oil, housing

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING housing

1шт.

48

A187865

KIT

KIT Pin, lever, Includes Ref. 49, 50 and 51

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING pin, large

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING pin, small

1шт.

51

NSS

NOT SOLD SEPARAT

RING retaining, pin

1шт.

52

A49815

LOCK WASHER

WASHER lock

4шт.

53

A187861

BOLT,Hex, M7 x 23mm

BOLT hex, housing M7 x 23 mm

4шт.
