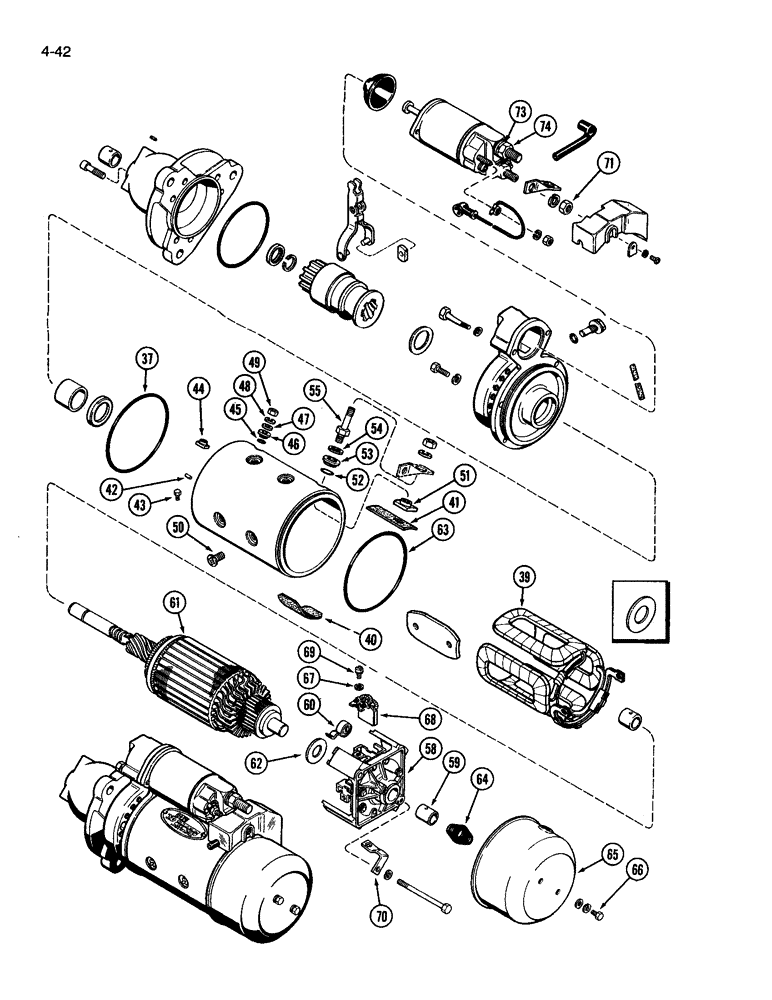

Запчасти Case IH 3594 (4-042) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A162469
STARTING MOTOR
ENGINE STARTER ASSEMBLY, Nippondenso No. 028000-7430, Includes Ref. 37 - 74
1шт.
37
A47820
O-RING
yoke to center bearing
1шт.
A47821
YOKE
FIELD COIL YOKE ASSEMBLY, Includes Ref. 40 - 55
1шт.
A47822
COIL
FIELD COIL ASSEMBLY
1шт.
40
A47833
INSULATOR
field
1шт.
41
A47832
INSULATOR
field
1шт.
42
A47824
PIN
dowel, yoke
1шт.
43
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
hex, 5 - .8 x 10 mm
1шт.
44
A47825
BUSHING
terminal insulating, inner
1шт.
45
A47826
RING
O-RING terminal
1шт.
46
A47827
BUSHING
terminal insulating, outer
1шт.
47
195-513
WASHER,#10
flat, 7/32 x 1/2 x 3/64 inch
1шт.
48
892-11005
LOCK WASHER,M5
WASHER, LOCK, M5
2шт.
49
825-1405
NUT,M5, Cl 8
1шт.
50
A47823
SCREW,M10 x 1.5 x 1.5mm
flat head, 10 mm - 1.50 x 20 mm
8шт.
51
A47829
BUSHING
inner, terminal insulating
1шт.
52
A47830
RING
O-RING terminal
1шт.
53
A47831
BUSHING
outer, terminal insulating
1шт.
54
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 5/64") 5/16"
1шт.
55
A47828
BOLT
terminal
1шт.
58
A47814
FRAME
END FRAME ASSEMBLY, commutator, Includes Ref. 60
1шт.
A47784
BUSHING
end frame
1шт.
60
A187823
SPRING
brush, Replaces A47815
4шт.
61
A47812
ARMATURE
STARTER ARMATURE ASSEMBLY
1шт.
62
A47813
WASHER
end, armature
1шт.
63
238-5247
O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro
1шт.
64
A47835
GASKET
end cover
1шт.
65
A47834
COVER
end, starter
1шт.
66
814-5010
BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd
hex, 5 - .8 x 10 mm
2шт.
67
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
2шт.
68
A187794
BRUSH, COMMUTATOR
STARTER BRUSH ASSEMBLY, Replaces A47817
4шт.
69
A47816
SCREW,Pan Cross, M5 x 0.8 x 12mm
slotted, 5 mm 0.8 x 12 mm
4шт.
70
A47818
CONNECTOR, ELEC
CONNECTOR brush
2шт.
71
425-146
JAM NUT,3/8" - 16, Gr 5
hex, jam, 3/8 inch NC
1шт.
73
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
74
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
