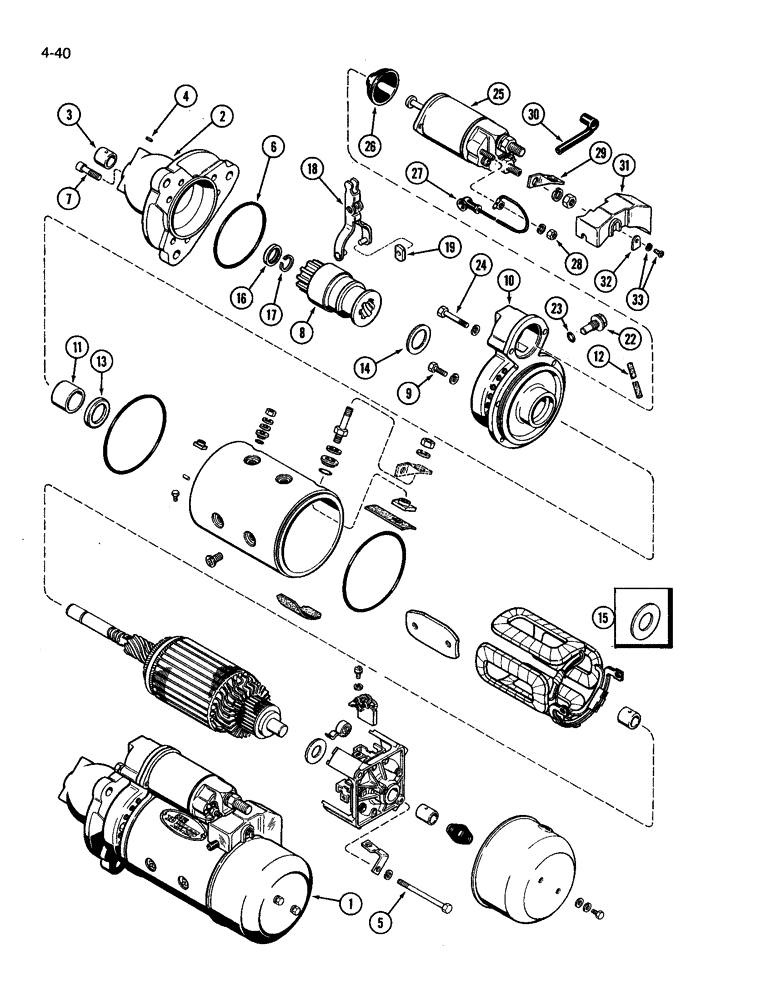

Запчасти Case IH 3594 (4-040) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

ENGINE STARTER ASSEMBLY, Nippondenso No. 028000-7430, Order A187728, Includes Ref. 2 - 33

1шт.

2

A47783

HOUSING

DRIVE HOUSING ASSEMBLY, Includes Ref. 3 and 4

1шт.

3

A47784

BUSHING

drive housing

1шт.

4

A47785

PLUG

housing cover

1шт.

5

A47819

BOLT

hex through, M7 x 86 mm

2шт.

6

A47786

SEAL

O-RING housing

1шт.

7

A47787

BOLT

special, 8 mm - 1.25 x 31 mm

6шт.

8

A47788

CLUTCH

DRIVE CLUTCH ASSEMBLY

1шт.

9

A47809

BOLT

hex, M7 x 20 mm

5шт.

10

A47805

HOUSING

bearing, center, Includes Ref. 11, 12 and 13

1шт.

11

A47806

BUSHING

bearing, center

1шт.

12

A47807

FELT

bearing, oil

1шт.

13

A47808

OIL SEAL

oil

1шт.

14

A47811

WASHER

backup, oil seal

1шт.

15

A47810

WASHER

brake

1шт.

16

107207C1

WASHER

COLLAR stop, pinion

1шт.

17

A47790

RING, SNAP

RING snap, Serial Range: collar-shaft

1шт.

18

A47791

LEVER

DRIVE LEVER ASSEMBLY, starter, Includes Ref. 19

1шт.

19

A47792

RING

drive lever

2шт.

22

A47793

BOLT

pivot

1шт.

23

A47794

RING,11 mm ID

O-RING pivot bolt, drive lever

1шт.

24

A47795

BOLT

hex, 6 mm - 42 mm

2шт.

25

A187795

SWITCH

MAGNETIC SWITCH ASSEMBLY, Replaces A47796, Includes Ref. 26, 27 and 28

1шт.

A187795R

REMAN-SOLENOID

3594 (1/85-12/87)

1шт.

A187795C

CORE-SOLENOID

Return Number

1шт.

26

A47797

COVER

switch, magnetic

1шт.

27

A47798

ELECTRICAL WIRE

WIRE lead

1шт.

28

A47799

NUT

hex special, No. 10-32

1шт.

29

A47800

CONNECTOR, ELEC

CONNECTOR terminal

1шт.

30

A187793

COVER ASSY

TUBE drain, switch, Replaces A47801

1шт.

31

A47802

COVER

terminal

1шт.

32

A47803

PLATE

terminal cover

1шт.

33

A47804

SCREW,M4 x 0.7 x 0.7mm

plate retaining, 4 x 9 mm

1шт.

115753A1

COVER

solenoid and starter

1шт.
