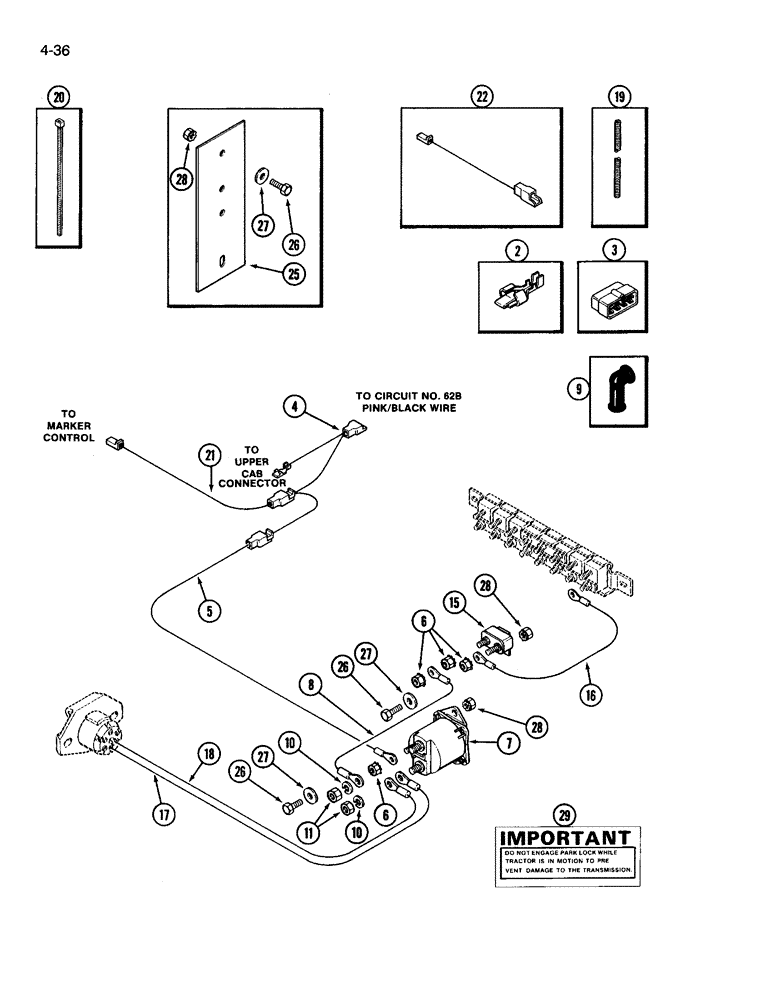

Запчасти Case IH 3594 (4-036) - ELECTRIC POWER ATTACHMENT, IMPLEMENT MONITOR (04) - ELECTRICAL SYSTEMS

A181779

ATTACHMENT electric power, Order components, Includes Ref. 2 - 29

1шт.

2

223-104

TERMINAL CONNECTOR

TERMINAL female, 1/4 inch blade

2шт.

3

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR male, 1 contact

2шт.

4

A181760

CABLE

WIRE cab connector

1шт.

5

A181762

ELECTRICAL WIRE

WIRE power to solenoid, red, 50 inch

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

4шт.

7

107655C1

SOLENOID SWITCH

POWER SWITCH ASSEMBLY, magnetic cab

1шт.

8

A181754

ELECTRICAL WIRE

WIRE solenoid to circuit breaker, red, 6 inch

1шт.

9

399470R1

BOOT

cable

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp

1шт.

16

A181764

ELECTRICAL WIRE

WIRE circuit breaker to circuit breaker, red, 15 inch

1шт.

17

A181763

ELECTRICAL WIRE

WIRE solenoid to auxilary outlet, red, 240 inch

1шт.

18

A181756

ELECTRICAL WIRE

WIRE solenoid to auxilary outlet, blue, 240 inch

1шт.

19

A181759

CONDUIT

convoluted

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

20шт.

21

A181761

CABLE

WIRE marker control

1шт.

22

A181757

ELECTRICAL WIRE

WIRE combine console module, black, 150 inch

1шт.

25

A181751

SPACER

PLATE relay mounting, not used

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

4шт.

28

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, with external tooth lock washer, 1/4 inch NC

4шт.

29

321-5264

DECAL

park lock

1шт.
