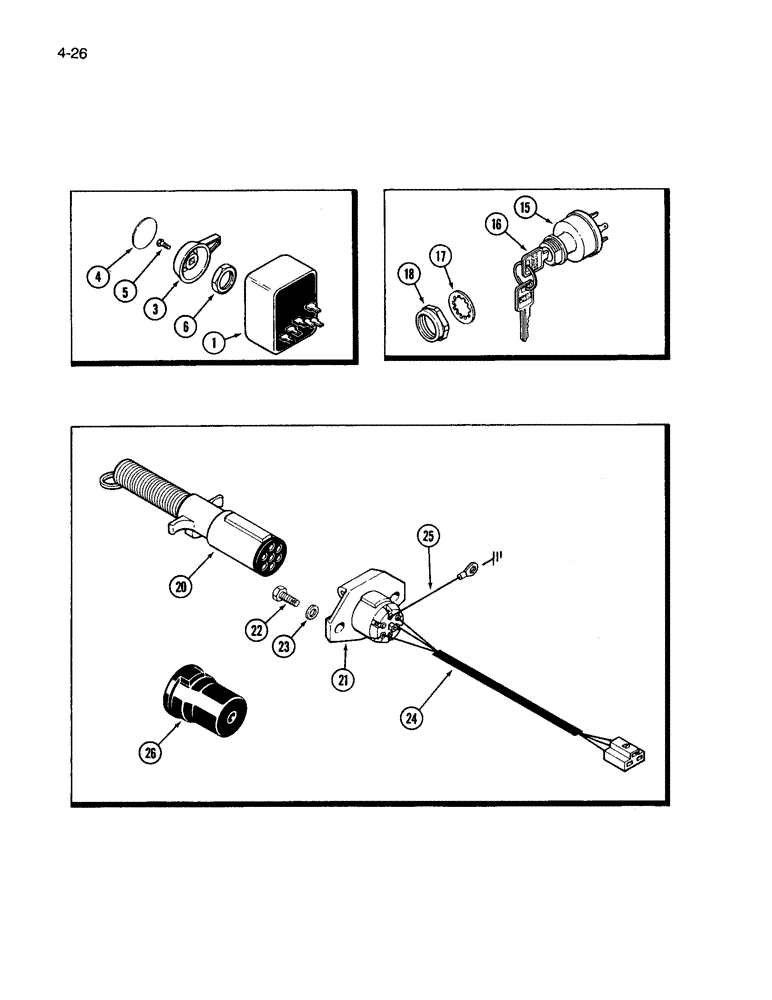

Запчасти Case IH 3594 (4-026) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

1987422C1

SWITCH

turn signal and flasher, Replaces A77184

1шт.

3

A177140

KNOB

switch, turn signal

1шт.

4

A160035

PLATE

insert, turn signal switch

1шт.

5

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

machine, pan head slotted, No. 5 NC x 3/8 inch, turn signal switch

1шт.

6

131-428

LOCK NUT,PAL, 3/4"-20

NUT hex, self-locking, 3/4 inch super fine threads, turn signal switch

1шт.

15

D134737

IGNITION SWITCH

SWITCH ignition

1шт.

16

A77313

SET OF 2 KEYS

KEY ignition switch, set of 2; Metal Without Padding

1шт.

17

193-108

LOCK WASHER,Int Tooth, 1"

WASHER internal tooth lock, 1 inch, ignition switch

1шт.

18

A145855

NUT

mounting, ignition switch

1шт.

20

121646C1

TERMINAL CONNECTOR,Female

CONNECTOR auxiliary plug, 7 point, male, electrical outlet

1шт.

21

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR auxiliary socket, 7 point, female, electrical outlet

1шт.

22

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW, self-tapping, hex washer head, 5/16 NC x 3/4 inch, auxiliary electrical outlet

2шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Auxiliary electrical outlet

2шт.

24

A177485

HARNESS

auxiliary eletrical outlet

1шт.

25

A163117

ELECTRICAL WIRE

WIRE ground, auxiliary electrical outlet

1шт.

26

A169283

BOOT

protection, auxiliary electrical outlet

1шт.
