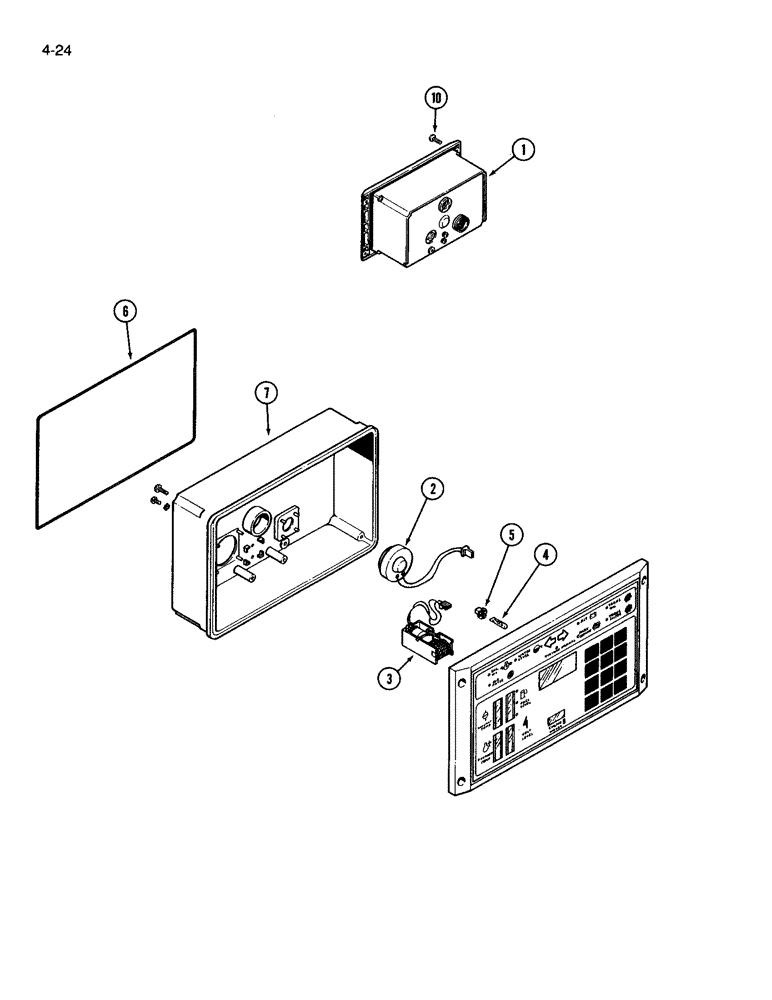

Запчасти Case IH 3594 (4-024) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

A187171

CLUSTER, INSTR.

CLUSTER, INSTRUMENT INSTRUMENT CLUSTER ASSEMBLY, new, Includes Ref. 2 - 7

1шт.

1

1935094C1

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Remanufactured Instrument Panel

1шт.

1

1935093C1

CORE-CLUSTER, INSTR

Core-Instrument Cluster Return Number, Instrument Panel

1шт.

2

A48886

BUZZER

ALARM instrument cluster

1шт.

3

A48887

GAUGE

COUNTER instrument cluster

1шт.

4

A48888

BULB

BULB instrument cluster

4шт.

5

A48889

LAMP SOCKET

SOCKET bulb

4шт.

6

A48890

GASKET

GASKET instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

CLUSTER BODY ASSEMBLY

1шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

4шт.
