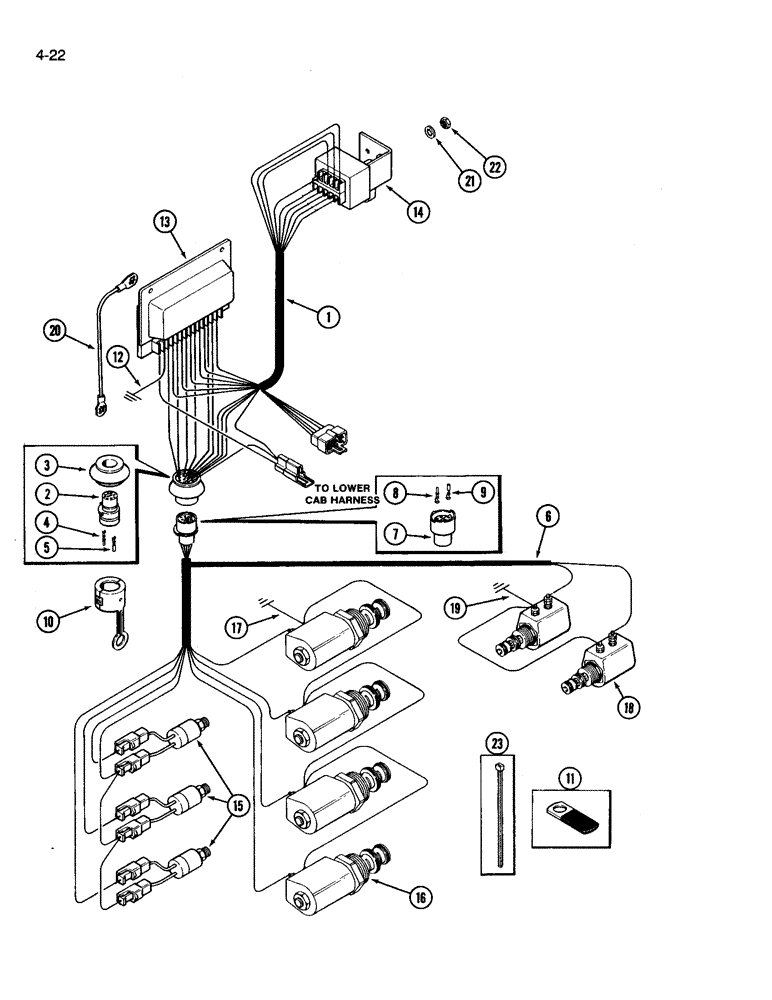

Запчасти Case IH 3594 (4-022) - ELECTRIC SHIFT HARNESS (04) - ELECTRICAL SYSTEMS

1

A177694

HARNESS

ELECTRIC SHIFT HARNESS ASSEMBLY, inside of cab, Includes Ref. 2 - 5

1шт.

2

NLS

NO LONGER SERVICED

shift harness, Includes Ref. 3

1шт.

3

A52280

GROMMET

harness socket

1шт.

4

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL harness connector, male

5шт.

5

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL harness connector, female

5шт.

6

A163115

HARNESS

electric shift, outside of cab, Includes Ref. 7, 8 and 9

1шт.

7

A52283

SOCKET

shift harness

1шт.

8

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL harness connector, male

5шт.

9

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL harness connector, female

5шт.

10

A163118

CLAMP

connector, harness

1шт.

11

A37179

CLIP

retainer, harness

1шт.

12

A163111

ELECTRICAL WIRE

WIRE ground, relay, black

1шт.

13

A164734

BOARD

RELAY BOARD ASSEMBLY, 12 speed transmission, Order A177703

1шт.

13

A177703

RELAY

BOARD ASSEMBLY, 24 speed transmission

1шт.

14

1964841C1

SWITCH

RANGE SWITCH ASSEMBLY, 24 speed transmission, Replaces A180572

1шт.

14

1964842C1

SWITCH

RANGE SWITCH ASSEMBLY, 12 speed transmission, Replaces A180201

1шт.

15

A156555

SWITCH

pressure, transmission oil

3шт.

16

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY, See Figure 6-006

4шт.

17

A156760

HARNESS

solenoid ground

1шт.

18

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY, 24 speed transmission, See Figure 6-006

2шт.

19

A156759

HARNESS

solenoid ground, 24 speed transmission

1шт.

20

A176765

ELECTRICAL WIRE

WIRE ground, black

1шт.

21

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER internal tooth lock, 3/8 inch

1шт.

22

A39888

NUT

hex, special, 3/8-32

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
