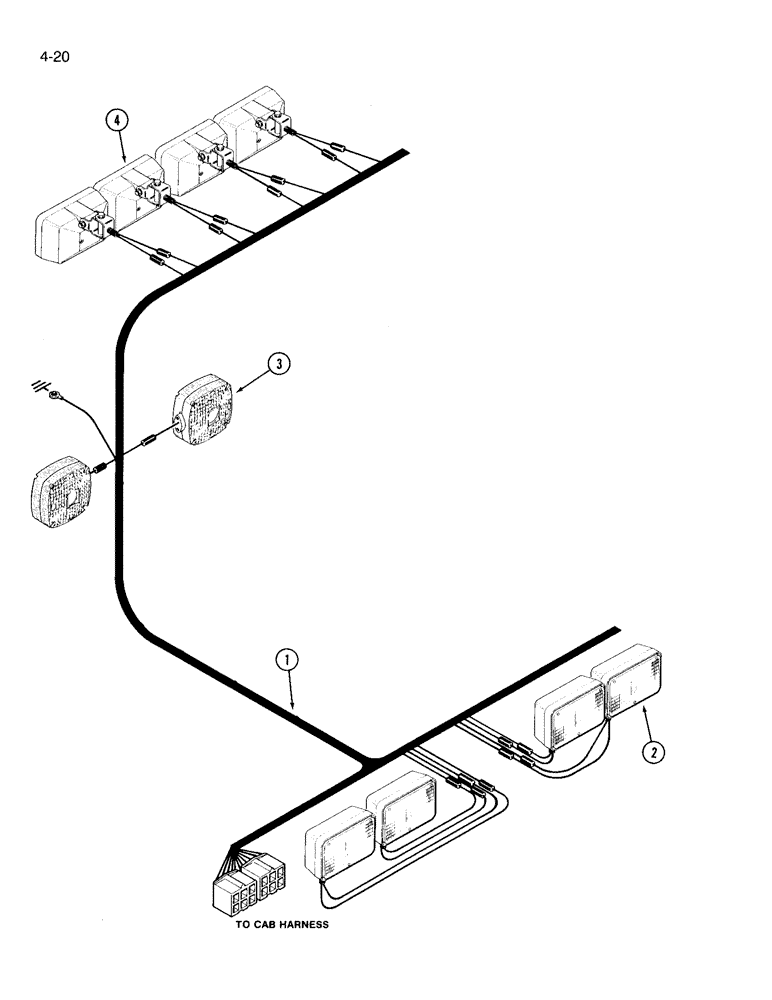

Запчасти Case IH 3594 (4-020) - FOUR POST ROPS HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F64805

HARNESS

ASSEMBLY, ROPS headliner wiring

1шт.

2

REF

INSTRUCTION

LAMP flood, front, See Figure 4-050

1шт.

3

A44201

LIGHT ASSY.

LAMP flasher, See Figure 4-046

2шт.

4

REF

INSTRUCTION

LAMP flood, rear, See Figure 4-048

1шт.
