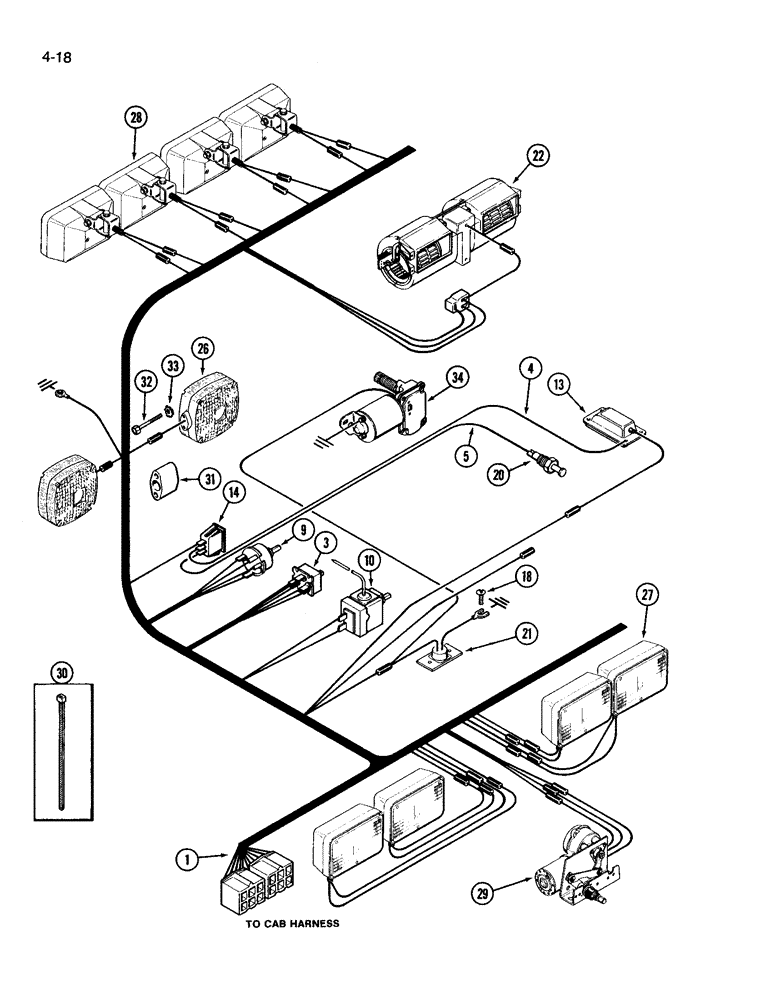

Запчасти Case IH 3594 (4-018) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

HEADLINER WIRING HARNESS ASSEMBLY

1шт.

3

REF

INSTRUCTION

SWITCH blower, See Figure 9-108

1шт.

4

F64731

CABLE PULLING GRIP

WIRE dome light to switch, brown

1шт.

5

F64127

ELECTRICAL WIRE

WIRE dome light switch to door, white/black

1шт.

9

REF

INSTRUCTION

SWITCH wiper, See Figure 9-108

1шт.

10

REF

INSTRUCTION

SWITCH air conditioning, See Figure 9-108

1шт.

13

REF

INSTRUCTION

LAMP dome, See Figure 9-094

1шт.

14

REF

INSTRUCTION

SWITCH dome lamp, See Figure 9-108

1шт.

18

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW self-tapping, hex washer head, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP console, See Figure 9-094

1шт.

22

REF

INSTRUCTION

AIR BLOWER ASSEMBLY, See Figure 9-098

1шт.

26

A44201

LIGHT ASSY.

LAMP flasher, See Figure 4-046

2шт.

27

REF

INSTRUCTION

LAMP flood, front, See Figure 4-050

1шт.

28

REF

INSTRUCTION

LAMP flood, rear, See Figure 4-048

1шт.

29

REF

INSTRUCTION

WINDSHIELD WIPER ASSEMBLY, See Figure 9-110 and 9-112

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

31

F64683

SPACER

mounting

2шт.

32

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

33

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

34

REF

INSTRUCTION

WINDOW WIPER ASSEMBLY, rear, See Figure 9-114

1шт.
