(4-014) - REAR COMPONENT HARNESS

Запчасти Case IH 3594 (4-014) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

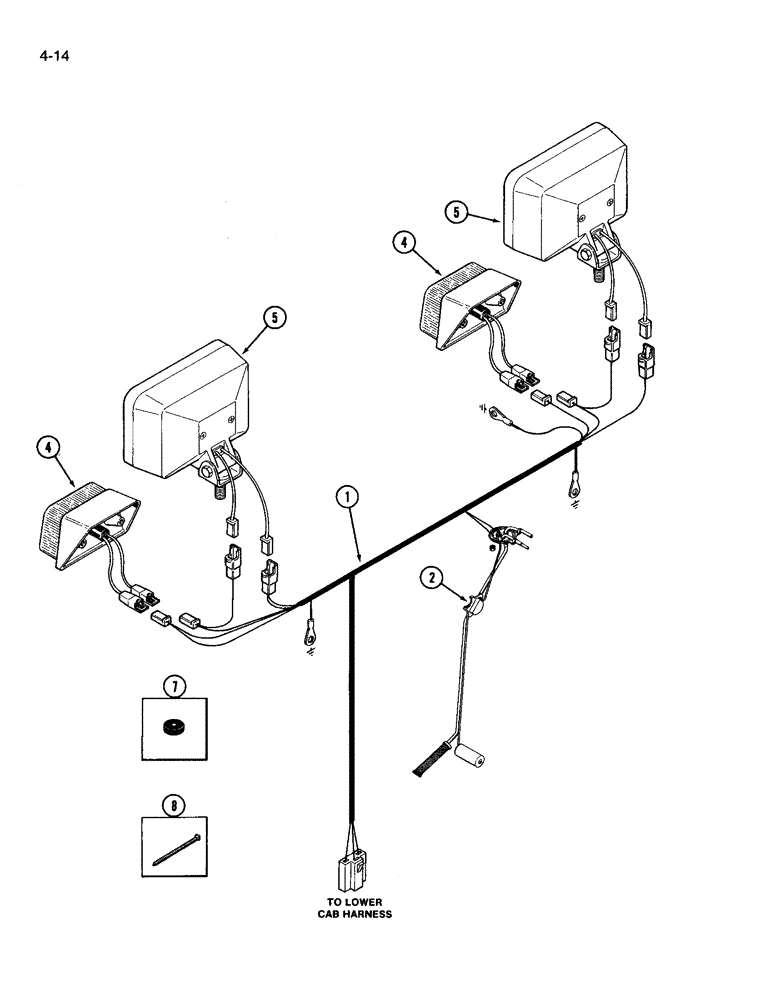

Схема запчастей Case IH 3594 - (4-014) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
8
2
5
7
4
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A167264

HARNESS

lights and components, rear

1шт.

2

A161769

TRANSMITTER

FUEL LEVEL SENDER ASSEMBLY, See Figure 3-016

1шт.

4

A143925

LAMP

LIGHT tail, See Figure 4-046

2шт.

5

REF

INSTRUCTION

LAMP flood, rear, See Figure 4-048

4шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

flood lamp wire, rear

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.
