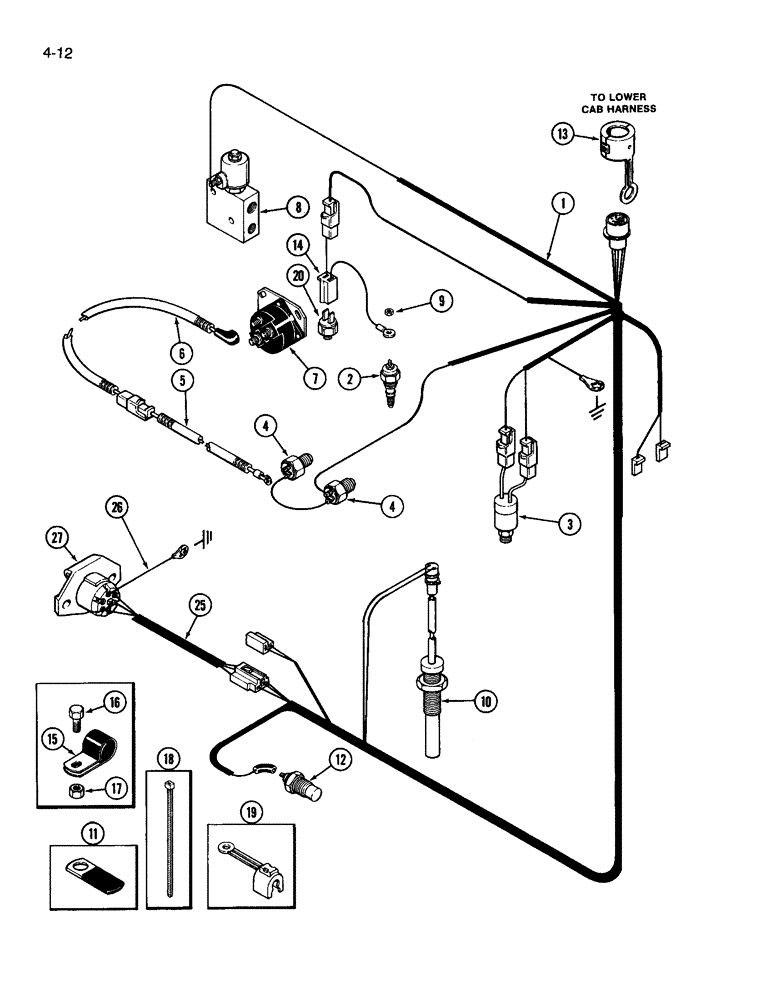

Запчасти Case IH 3594 (4-012) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

transmission

1шт.

2

A181991

SWITCH

transmission filter pressure, harness

1шт.

3

A162422

SWITCH

transmission oil pressure, harness

1шт.

4

A160237

SWITCH

neutral start, transmission harness

2шт.

5

A169158

ELECTRICAL WIRE

WIRE neutral start, transmission harness

1шт.

6

A169157

ELECTRICAL WIRE

WIRE intermediate solenoid, transmission harness

1шт.

7

REF

INSTRUCTION

SWITCH solenoid, ignition, See Figure 4-028 and 4-030, transmission harness

1шт.

8

REF

INSTRUCTION

VALVE differential lock, See Figure 7-006, transmission harness

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF, transmission harness

1шт.

10

A156902

SENSOR

SPEED SENSOR ASSEMBLY, See Figure 6-010, transmission harness

1шт.

11

A38066

CLIP

cable, transmission harness

1шт.

12

A154283

SWITCH

transmission temperature, harness

1шт.

13

A163118

CLAMP

harness connecting, transmission

1шт.

14

A181552

ELECTRICAL WIRE

WIRE transmission oil filter, harness

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

harness, transmission

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, Transmission harness

1шт.

17

425-106

NUT,3/8"-16, Cl 5

Transmission harness 3/8"-16, G5

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, transmission harness

1шт.

19

A169696

CLAMP

connector, transmission harness

2шт.

20

A166916

SWITCH

filter temperature, transmission harness

1шт.

25

A177485

HARNESS

auxiliary outlet

1шт.

26

A163117

ELECTRICAL WIRE

WIRE ground, auxiliary outlet harness

1шт.

27

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR socket, See Figure 4-026, auxiliary outlet harness

1шт.
