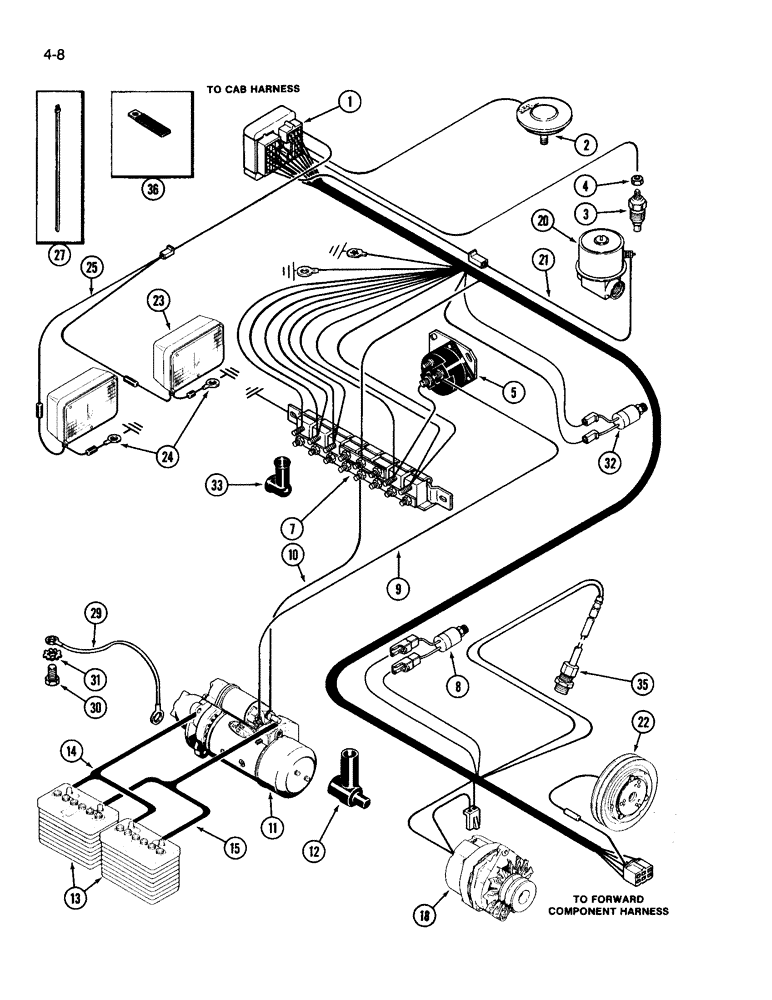

Запчасти Case IH 3594 (4-008) - ENGINE HARNESS, PRIOR TO P.I.N. 9944363 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A176966
HARNESS
ENGINE HARNESS ASSEMBLY
1шт.
2
3224405R91
RESTRICTION SWITCH
SWITCH air cleaner restriction indicator, Replaces A154782, See Figure 2-010
1шт.
3
A176566
TRANSMITTER
SENDER temperature, coolant
1шт.
4
193-1000
NUT,Keps, w/LW,#10-32
hex, with external tooth lock washer, No. 10 NF
1шт.
5
A39079
SOLENOID
ignition, See Figure 4-028 and 4-030
1шт.
7
A165723
BREAKER
circuit
1шт.
8
107125A1
SWITCH, PRESSURE
SWITCH engine oil pressure, 8 PSI, Replaces A167996
1шт.
9
A169555
ELECTRICAL WIRE
WIRE starter to solenoid, battery terminal
1шт.
10
A163107
ELECTRICAL WIRE
WIRE starter to circuit breaker
1шт.
11
REF
INSTRUCTION
STARTER engine, See Figure 4-038
1шт.
12
A181302
BOOT
terminal
1шт.
13
REF
INSTRUCTION
BATTERY 12 volt, low maintenance, See Figure 4-032 and 4-034
2шт.
14
REF
INSTRUCTION
CABLE battery, negative, See Figure 4-032 and 4-034
1шт.
15
REF
INSTRUCTION
CABLE battery, positive, See Figure 4-032 and 4-034
1шт.
18
REF
INSTRUCTION
ALTERNATOR engine, See Figure 4-038
1шт.
20
REF
INSTRUCTION
SHUTOFF VALVE ASSEMBLY, See Figure 4-052
1шт.
21
A165227
ELECTRICAL WIRE
WIRE shutoff, Serial Range: valve-harness
1шт.
22
REF
INSTRUCTION
COMPRESSOR CLUTCH ASSEMBLY, See Figure 9-116
1шт.
23
REF
INSTRUCTION
LAMP flood, lower front, See Figure 4-050
2шт.
24
A147343
ELECTRICAL WIRE
WIRE ground
2шт.
25
A147345
HARNESS
lights, front flood
1шт.
27
L18337
CABLE TIE,9.95"-12.1" lg
STRAP tie, nylon, 15 inch
2шт.
29
A186133
CABLE
ground, cab, Replaces A165301
1шт.
30
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
1шт.
31
493-11039
LOCK WASHER,3/8", Int-Ext Tooth
WASHER - internal-external tooth lock, 3/8 inch
1шт.
32
A167644
PRESSURE SWITCH
SWITCH oil pressure, 40 PSI
1шт.
33
A21753
CAP
BOOT terminal
2шт.
35
A186169
TRANSMITTER
SENSOR magnetic, engine speed, Replaces A162939, See Figure 3-002
1шт.
36
A149624
CLIP
retaining
1шт.
Выбрано товаров: 29
