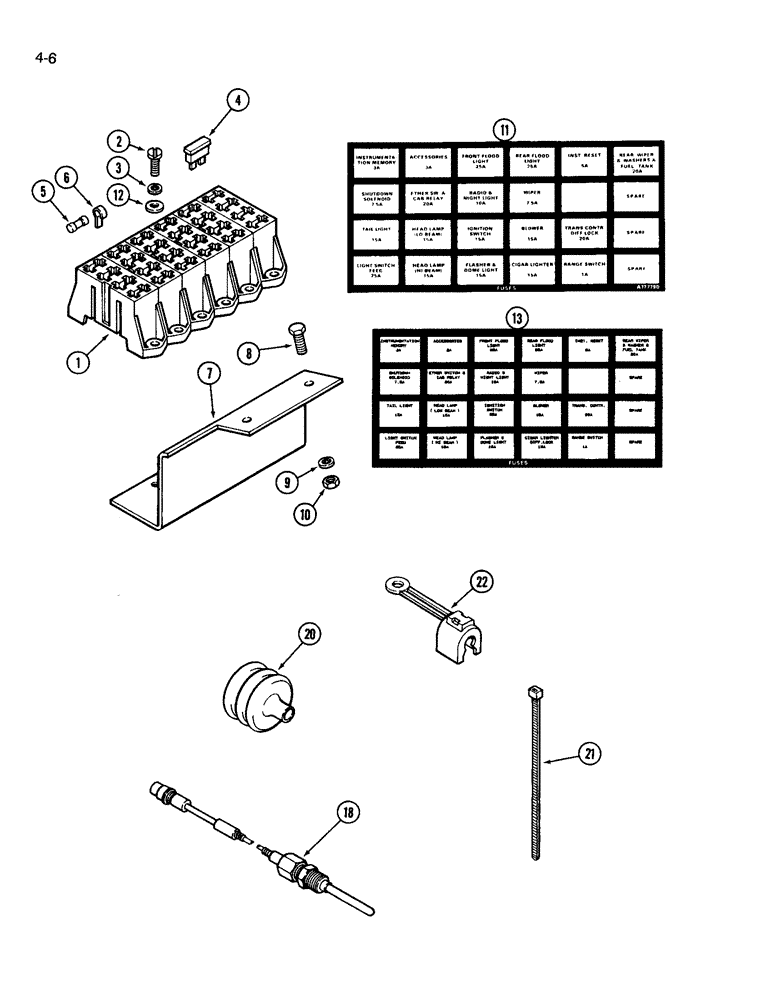

Запчасти Case IH 3594 (4-006) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER fuse, part of harness, See Figure 4-002 and 4-004

1шт.

2

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

A149798

FUSE

5 ampere, tan

1шт.

4

A149796

FUSE

3 ampere, violet

2шт.

4

A149799

FUSE

7.5 ampere, brown

2шт.

4

A149800

FUSE,10 Amp

10 ampere, red

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

15 ampere, light blue

6шт.

4

A149802

FUSE

20 ampere, yellow

2шт.

4

A149803

FUSE,25 Amp

25 amperes, white

4шт.

5

A163102

FUSE

1 ampere

1шт.

6

A163103

CLIP

fuse mounting

1шт.

7

A163038

BRACKET

mounting, fuse holder

1шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

11

A177790

DECAL

fuse location, prior to P.I.N. 9944363

1шт.

11

A176278

DECAL

fuse location, prior to P.I.N. 9944363, French

1шт.

12

495-31022

WASHER,#10

3шт.

13

A181300

DECAL

fuse location, P.I.N. 9944363 and after

1шт.

18

A162936

TRANSMITTER

THERMOCOUPLE exhaust, pyrometer

1шт.

20

A145931

BELLOWS

BOOT protective, thermocouple, pyrometer

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, pyrometer thermocouple

2шт.

22

A169696

CLAMP

connector, pyrometer thermocouple

1шт.
