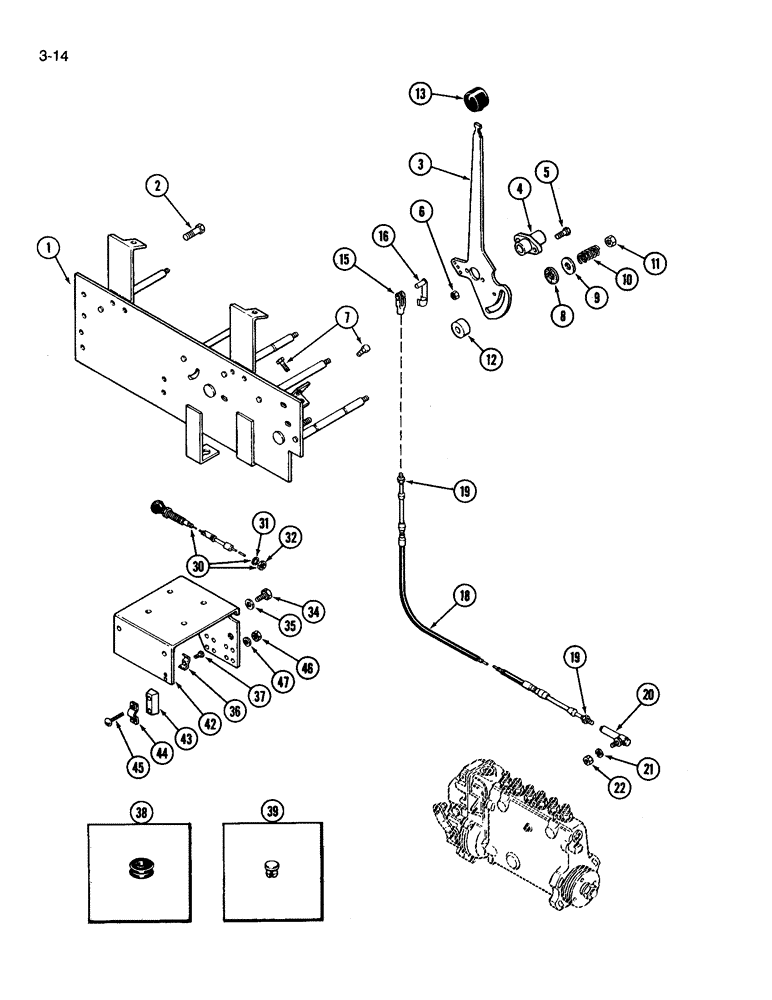

Запчасти Case IH 3594 (3-014) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1

A181983

SUPPORT

control console, Replaces A163004

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW self-tapping, hex washer head, 3/8 NC x 5/8 inch

5шт.

3

A180498

LEVER

throttle

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING control lever

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

2шт.

7

A67294

BOLT

adjusting, control lever

2шт.

8

A61069

DISC

friction

2шт.

9

495-81149

WASHER,7/16" x 1 1/4" x .083"

flat, 7/16 x 1-1/4 x 3/32 inch

2шт.

10

A65583

SPRING

friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT hex, jam, self-locking, 3/8 inch NC

2шт.

12

A160622

BUSHING

SPACER lever

1шт.

13

A177439

KNOB

control lever, red

1шт.

15

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

1шт.

16

A149683

PIN

clevis, spring, 3/16 inch

1шт.

18

A67296

CABLE

HAND THROTTLE CABLE ASSEMBLY

1шт.

19

225-14210

NUT,#10-32

2шт.

20

A165466

BALL JOINT

JOINT ball, throttle cable

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

425-114

NUT,1/4"-28, G5

1шт.

30

A164766

CABLE

STOP CABLE ASSEMBLY, flexible, Order A165986

1шт.

31

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF

1шт.

34

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

35

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

373373R1

CLIP

stop cable

1шт.

37

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

machine, round head slotted, No. 8 NC x 1/2 inch

1шт.

38

A141389

GROMMET

cable

2шт.

39

A162961

PLUG

control cable

1шт.

42

A160611

BRACKET

SUPPORT stop cable mounting

1шт.

43

A160612

SPACER

clamp, throttle cable

1шт.

44

A75815

CLAMP

cable

1шт.

45

470-11020

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

machine, pan head slotted, No. 10 NC x 1-1/4 inch

1шт.

46

225-14110

NUT,#10-24

1шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
