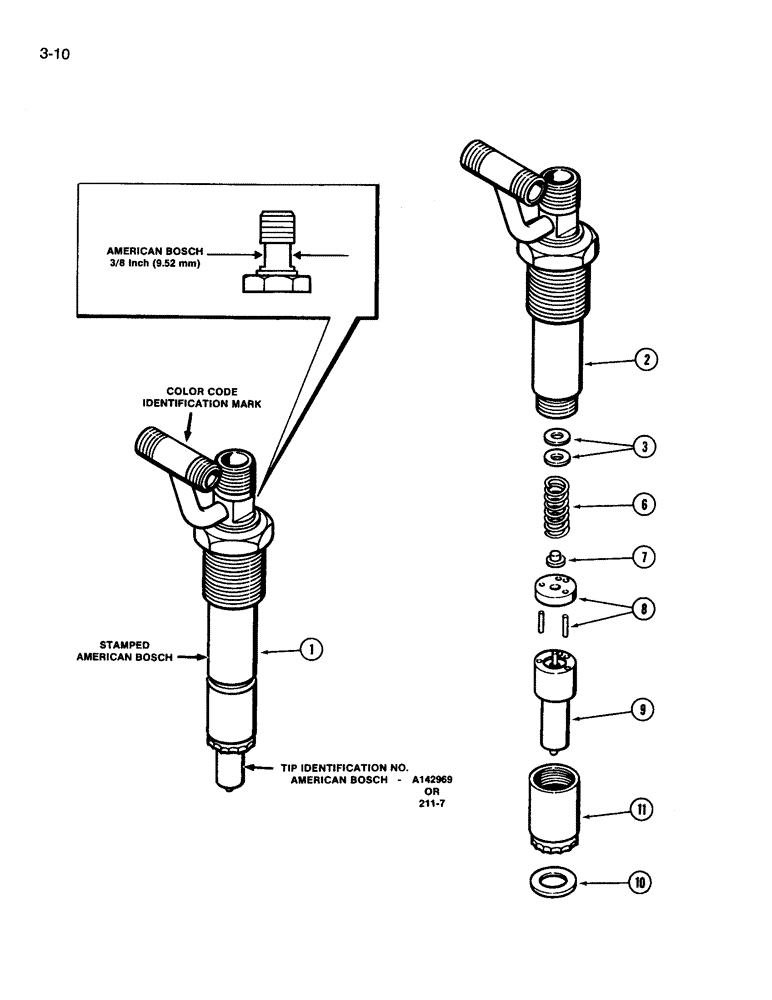

Запчасти Case IH 3594 (3-010) - FUEL INJECTION NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156327

NOZZLE CAP

FUEL INJECTION NOZZLE ASSEMBLY, Includes Ref. 1 - 11

6шт.

1

NSS

NOT SOLD SEPARAT

FUEL INJECTION NOZZLE ASSEMBLY, American Bosch No. KT7834-6, Order A156327, Includes Ref. 2 - 11

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangable.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY nozzle, Order A156327

1шт.

A44860

SHIM

KIT Shim, nozzle opening, pressure, Order components, one kit required to repair six nozzles, Includes Ref. 3

1шт.

3

680415C1

SPACER

SHIM nozzle, 80 in kit, 0.002 inch

1шт.

3

680416C1

SPACER

SHIM nozzle, 50 in kit, 0.007 inch

1шт.

3

680418C1

SPACER

SHIM nozzle, 50 in kit, 0.010 inch

1шт.

3

680419C1

SPACER

SHIM nozzle, 20 in kit, 0.025 inch

1шт.

3

680414C1

SPACER

SHIM nozzle, 6 in kit, 0.062 inch

1шт.

6

A44864

SPRING

nozzle pressure

1шт.

7

A44863

SEAT

nozzle pressure spring

1шт.

8

A44862

VALVE

STOP valve, nozzle with pin

1шт.

9

A142969

NOZZLE CAP

NOZZLE INJECTOR TIP ASSEMBLY

1шт.

10

1342829C1

GASKET

injection, nozzle tip

1шт.

Whenever nozzle is removed from head, 1342829C1 gasket must be repalced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT cap, nozzle end

1шт.
