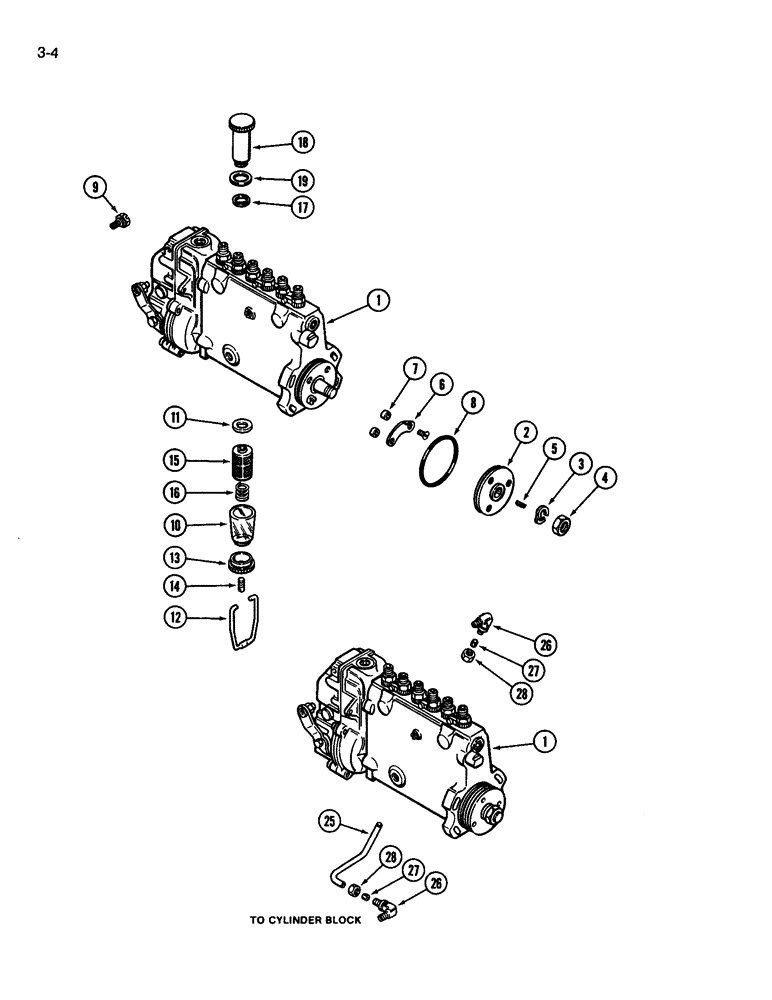

Запчасти Case IH 3594 (3-004) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A157019

PUMP

FUEL INJECTION PUMP ASSEMBLY, Includes Ref. 2 - 18

1шт.

1

AR157019

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

AC157019

CORE-INJECTION PUMP

Return Part Number Injection Pump

1шт.

2

A41857

HUB

pump drive

1шт.

3

A41851

LOCK WASHER

lock, hub nut

1шт.

4

A41852

LOCK NUT

hex lock

1шт.

5

A41850

KEY

hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER timing

1шт.

7

A41859

BUSHING

SPACER pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

1шт.

9

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

pump stop control cable lock

1шт.

10

A43347

BOWL

glass

1шт.

11

A43346

GASKET

bowl

1шт.

12

A43350

CLAMP

HANGER bowl

1шт.

13

A43348

NUT

SEAT bowl

1шт.

14

A43349

STUD

bowl

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT filter

1шт.

16

A43345

SPRING

element

1шт.

17

A43351

SEAL

copper

2шт.

18

A43343

CARTRIDGE

HAND PRIMER PUMP ASSEMBLY

1шт.

19

A45342

GASKET

hand pump

1шт.

25

A136903

TUBE

, Serial Range: pump-block

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

90 degree, 1/4 inch tube x 1/8 inch PT

2шт.

27

222-102

SLEEVE,1/4" Tube

Includes Ref. 27 and 28 1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT hex, 1/4 tube OD x 1/2-24 inch

1шт.
