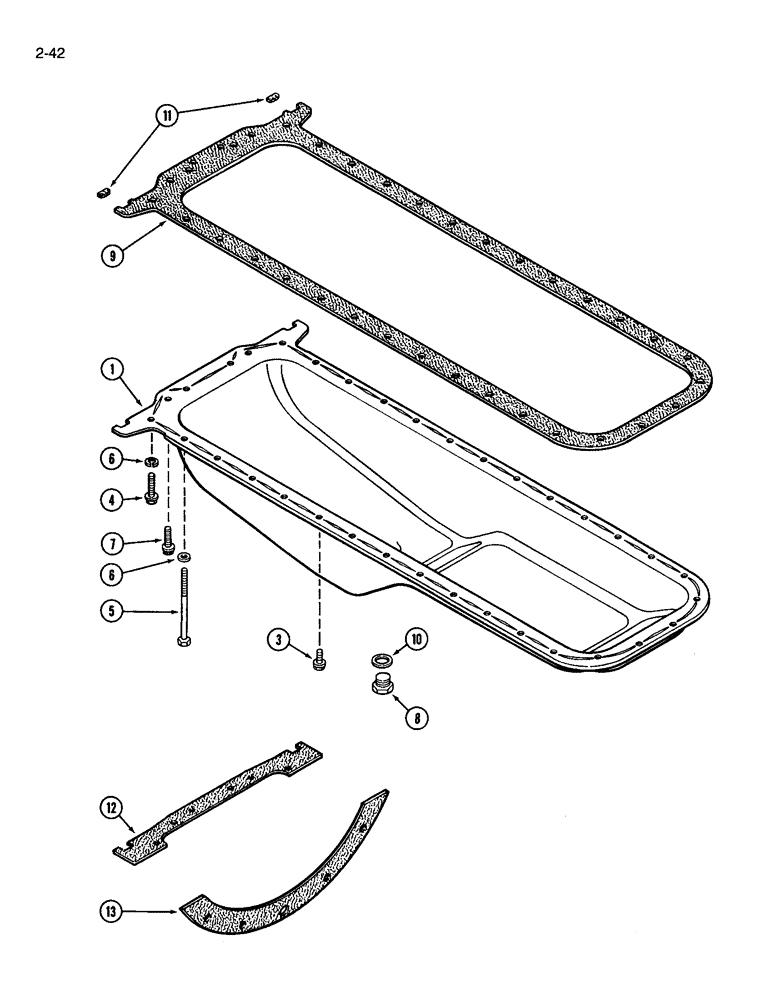

Запчасти Case IH 3594 (2-042) - OIL PAN AND GASKETS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166236

PAN

oil, engine

1шт.

3

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT hex with washer, 3/8 NC x 7/8 inch, Order 113-221 bolt and 92-6 washer

26шт.

4

380-2620

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT 12 point, 3/8 NC x 1-1/4 inch, grade 8

2шт.

5

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

hex, 3/8 NC x 5-1/2 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT hex, Sems, 3/8 NC x 1-1/2 inch

2шт.

8

A34826

PLUG,7/8" - 18 ORB

drain, oil pan

1шт.

A189541

KIT

Gasket, oil pan, engine, Replaces A152479, Includes Ref. 9 and 10

1шт.

9

A189541

KIT

GASKET pan to block, Replaces A150688

1шт.

10

A27968

RING

copper, drain plug

1шт.

A189540

GASKET

KIT Gasket, oil pan plate, used when tractor is split and oil pan is not removed, Includes Ref. 11, 12 and 13

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET tab, rear corner

2шт.

12

NSS

NOT SOLD SEPARAT

GASKET flywheel cover, top

1шт.

13

1342359C1

GASKET

flywheel cover to torque tube, Replaces A57966

1шт.
