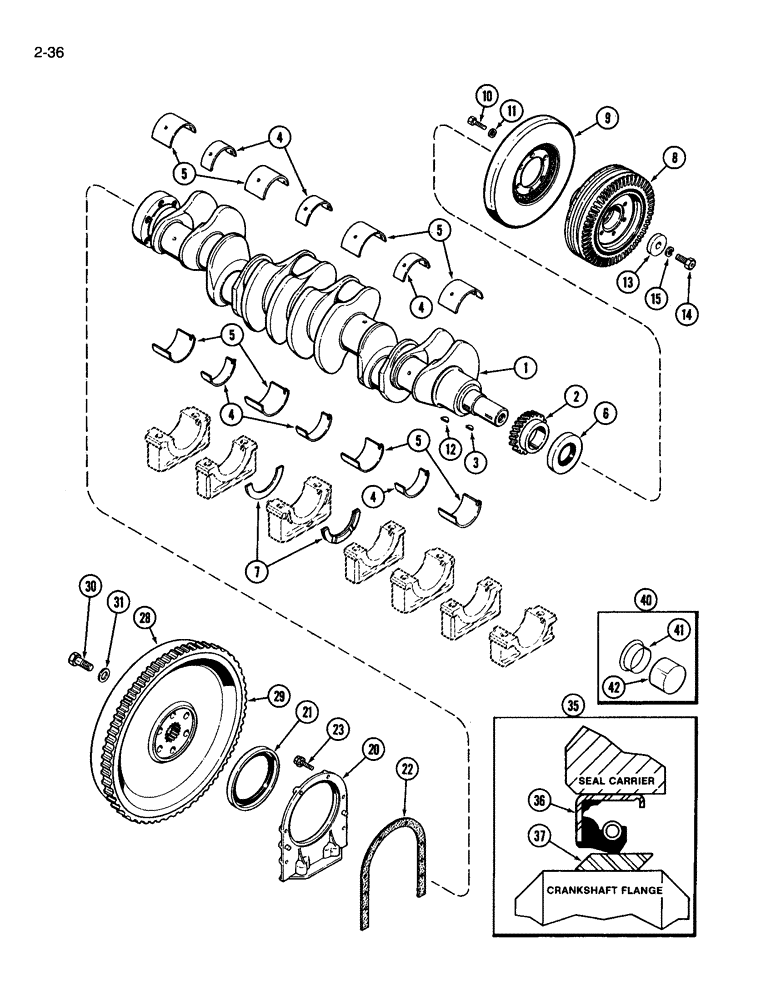

Запчасти Case IH 3594 (2-036) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ENGINE CRANKSHAFT ASSEMBLY, Includes Ref. 2 and 3

1шт.

2

A66404

GEAR

crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A43089

BEARING LINER

LINERS main bearing, narrow, standard, set of 2

3шт.

4

A43120

LINING

LINERS main bearing, narrow, 0.002 inch undersize, set of 2

3шт.

4

A43121

SET OF CONN ROD BRGS STD

LINERS main bearing, narrow, 0.010 inch undersize, set of 2

3шт.

4

A43122

LINING

LINERS main bearing, narrow, 0.020 inch undersize, set of 2

3шт.

4

A43123

SET OF CONN ROD BRGS STD

LINERS main bearing, narrow, 0.030 inch undersize, set of 2

3шт.

5

A43090

BEARING LINER

LINERS main bearing, wide, standard, set of 2

4шт.

5

A43124

LINING

LINERS main bearing, wide, 0.002 inch undersize, set of 2

4шт.

5

A43125

CRANKSHAFT BEARING

LINERS main bearing, wide, 0.010 inch undersize, set of 2

4шт.

5

A43126

LINING

LINERS main bearing, wide, 0.020 inch undersize, set of 2

4шт.

5

A43127

LINING

LINERS main bearing, wide, 0.030 inch undersize, set of 2

4шт.

6

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

oil, crankshaft, front, See Ref. 40

1шт.

7

A58565

WASHER

thrust, 0.157 inch thick

2шт.

7

A42447

WASHER

thrust, 0.163 inch thick

1шт.

8

A166050

PULLEY

belt drive

1шт.

9

A157010

HITCH DAMPER

DAMPER pulley

1шт.

10

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

11

A50820

WASHER

hardened, 3/8 x 3/4 inch

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

13

A156428

WASHER

pulley retainer

1шт.

14

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

oil seal, rear

1шт.

21

A62050

OIL SEAL

oil, rear, See Ref. 35

1шт.

22

1342747C1

GASKET

retainer, Replaces A32830

1шт.

23

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT hex, 3/8 NC x 1-1/4 inch

6шт.

28

A153946

FLYWHEEL

CRANKSHAFT FLYWHEEL ASSEMBLY, Includes Ref. 29

1шт.

29

A27920

GEAR

ring, 137 teeth

1шт.

30

25334R1

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

hex, 5/8 NF x 1-3/4 inch, grade 8

6шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER flat, hardened

6шт.

35

A43194

KIT

Wear Seal, rear, Includes Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

40

A154684

SLEEVE

KIT Wear Seal, front, Includes Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
