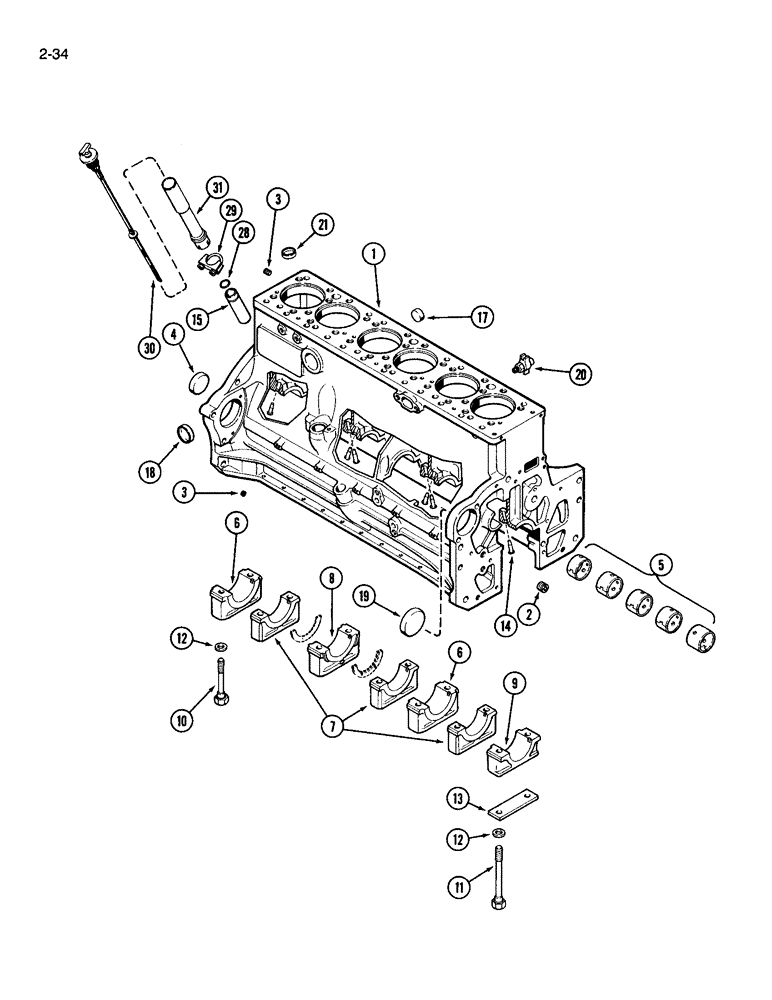

Запчасти Case IH 3594 (2-034) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A182080

SKELETON ENGINE

SHORT BLOCK ASSEMBLY, Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters, Includes Ref. 1 - 20

1шт.

AR77833

REMAN-BASIC ENGINE

Remanufactured

1шт.

AC77833

CORE-BASIC ENGINE

Return Number

1шт.

1

A182079

SKELETON ENGINE

STRIPPED BLOCK ASSEMBLY, Includes Ref. 2 - 20

1шт.

2

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket, 3/8 inch PT

4шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

hex socket, 1/8 inch PT

6шт.

4

A24361

PLUG

cup type, 2-3/8" diameter

1шт.

5

REF

INSTRUCTION

BUSHING camshaft, See Figure 2-032

1шт.

6

A185063

CAP

main bearing, wide

2шт.

7

A154397

BEARING CAP

CAP main bearing, narrow

3шт.

8

A185064

CAP

main thrust bearing

1шт.

9

A154396

BEARING CAP

CAP main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT hex, 5/8 NC x 4-15/16 inch, special

12шт.

11

A66949

STEP BOLT

BOLT hex, 5/8 NC x 7-3/16 inch, special

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER flat, hardened

14шт.

13

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

14

A63903

NOZZLE CAP

NOZZLE piston cooling

6шт.

15

A34540

TUBE

oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

cup type, 1-3/8" diameter

3шт.

18

20840R1

PLUG,Cup, 2", Stainless

cup type, 2" diameter

1шт.

19

A58750

PLUG,Cup, 3 1/4", Stainless

cup, 3-1/4 inch diameter

1шт.

20

217-103

COCK, DRAIN

VALVE drain, 1/4 inch PT

1шт.

21

A58568

PLUG,Cup, 1 3/8", Stainless

cup, 1-3/8 inch diameter

1шт.

28

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

1шт.

29

L47766

CLAMP

extension tube

1шт.

30

A154767

DIPSTICK

OIL LEVEL DIPSTICK ASSEMBLY

1шт.

31

A153835

TUBE

extension, oil filler

1шт.
