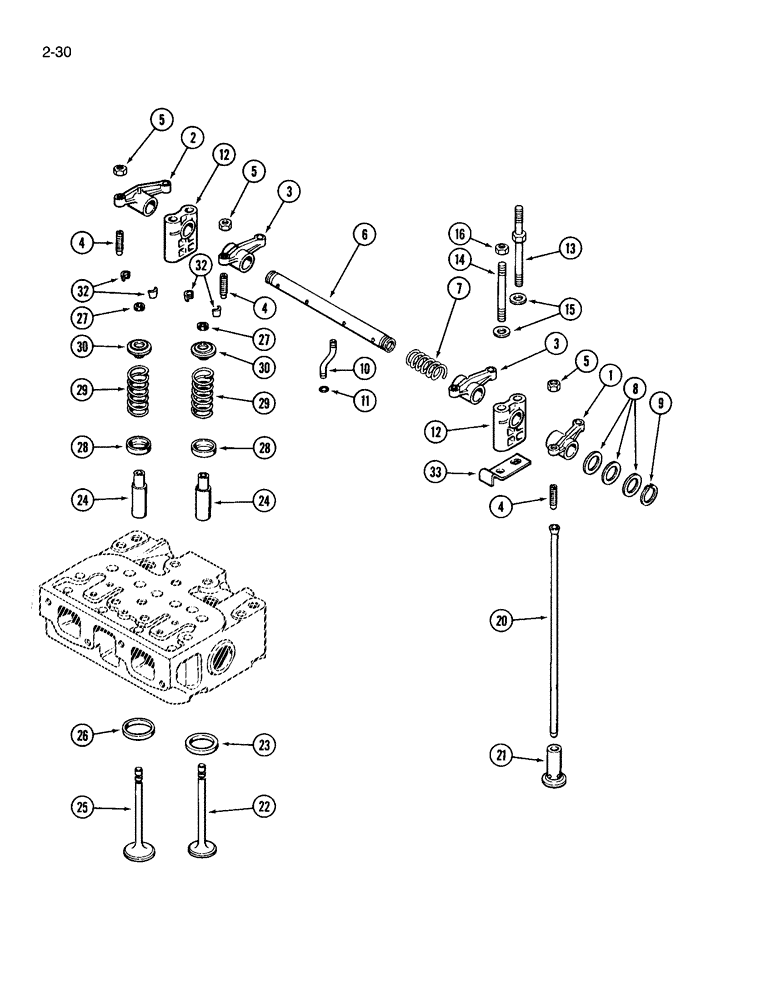

Запчасти Case IH 3594 (2-030) - VALVE MECHANISM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ASSEMBLY, exhaust valve, first, third and fifth cylinders

3шт.

2

A148138

ARM

ROCKER ARM ASSEMBLY, exhaust valve, second, fourth and sixth cylinders

3шт.

3

A148136

ARM

ROCKER ARM ASSEMBLY, intake valve, Includes Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW adjusting

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

6

A150545

SHAFT

rocker arm

3шт.

7

A27877

SPRING

rocker shaft

3шт.

8

A27878

WASHER

rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

6шт.

10

A58657

TUBE

oil, rocker shaft

3шт.

11

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

3шт.

12

A61128

BRACKET

rocker shaft, die-cast steel

6шт.

13

A67121

STUD

, Serial Range: cover-head

6шт.

14

A58659

STUD

bracket

6шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

12шт.

16

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

20

A157328

ROD

push

12шт.

21

A182179

TAPPET

LIFTER push rod, standard, Replaces A20865

12шт.

21

A21857

TAPPET

LIFTER push rod, 0.010 inch oversize

12шт.

22

A182173

VALVE, ENG EXHAUST,

VALVE exhaust, Stellite

6шт.

23

A66192

INSERT

exhaust valve seat

6шт.

24

A41783

GUIDE

valve stem, intake and exhaust, set of 2

6шт.

25

A182172

VALVE,ENGINE,INLET,S

VALVE intake, Stellite

6шт.

26

A66191

INSERT

intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem

12шт.

28

A66328

SEAT

valve spring

12шт.

29

A66444

SPRING

valve

12шт.

30

A66336

ROTATOR

CAP roto, exhaust and intake valve

12шт.

32

A27872

LOCK

retainer

24шт.

33

A157197

STRAP

gasket locater

6шт.
