Запчасти Case IH 3594 (2-028) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

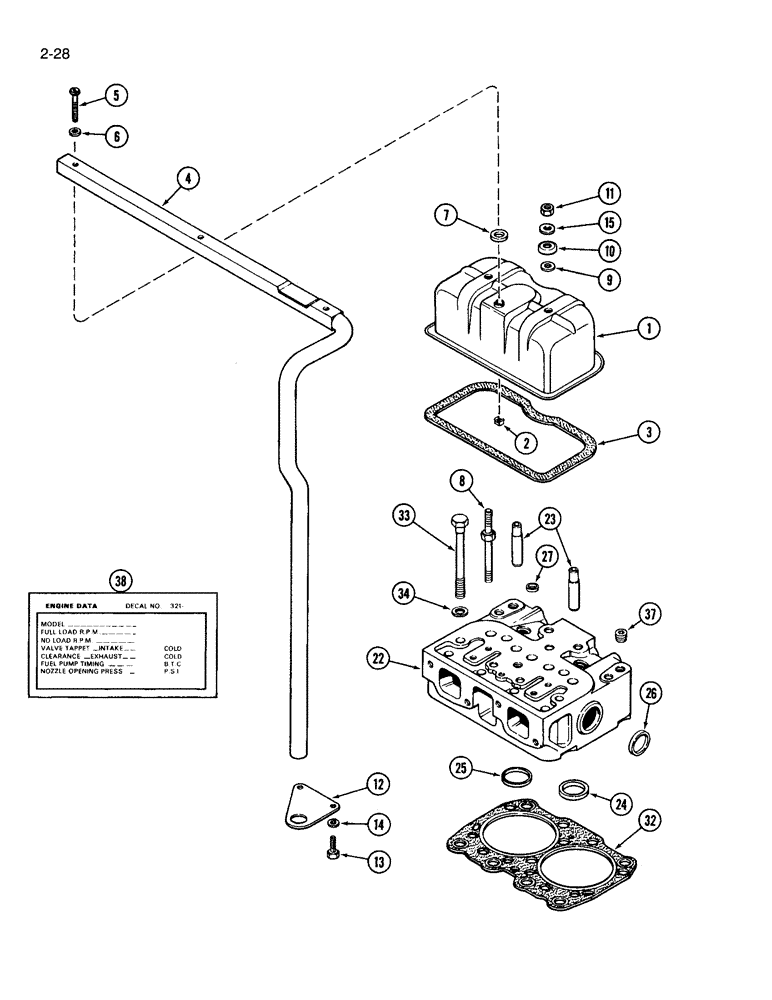

Схема запчастей Case IH 3594 - (2-028) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE
26
6
22
32
2
37
1
11
14
33
10
4
38
27
5
15
23
13
9
34
25
3
24
7
12
8

Артикул

Название

Примечание

Количество

1

A166170

COVER

CYLINDER HEAD COVER ASSEMBLY, Includes Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT speed grip, 1/4 inch NC

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET, Serial Range: cover-head

3шт.

4

A166157

TUBE

SPARE PART TUBE breather

1шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW pan head machine, 1/4 NC x 2-1/2 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET breather tube bolt

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD, Serial Range: cover-head

6шт.

9

A142098

GROMMET

GROMMET cover stud

6шт.

10

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER dished, cover nut

6шт.

11

425-107

NUT,7/16"-14, G5

NUT - hex, 7/16 inch NC

6шт.

12

A59054

BRACKET

BRACKET breather tube

1шт.

13

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT hex, 3/8 NC x 1-1/4 inch

2шт.

14

95-11041

WASHER,3/8"

WASHER, , flat (13/32 x 13/16 x 1/16") 3/8"

6шт.

15

495-11047

WASHER,7/16", SAE

WASHER, (15/32 x 59/64 x 1/16") 7/16", SAE

6шт.

22

A138261

HEAD (CYLINDER)

CYLINDER HEAD ASSEMBLY, Includes Ref. 23 - 27

3шт.

22

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

22

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

23

A41783

GUIDE

GUIDE valve stem, intake and exhaust, set of 2

2шт.

24

A66192

INSERT

INSERT exhaust valve seat

2шт.

25

A66191

INSERT

INSERT intake valve seat

2шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG cup type, 1-5/8" diameter

2шт.

27

A58620

PLUG,Cup, 3/4", Stainless

PLUG cup type, 3/4" diameter

3шт.

32

1349078C1

CYLINDER HEAD GASKET

GASKET cylinder head, with fire rings

3шт.

33

A76638

BOLT

BOLT hex, 5/8 NC x 6 inch

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER flat, hardened

30шт.

37

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG hex socket, 3/8 inch PT

6шт.

38

321-3972

DECAL

DECAL engine data

1шт.

Выбрано товаров: 28
