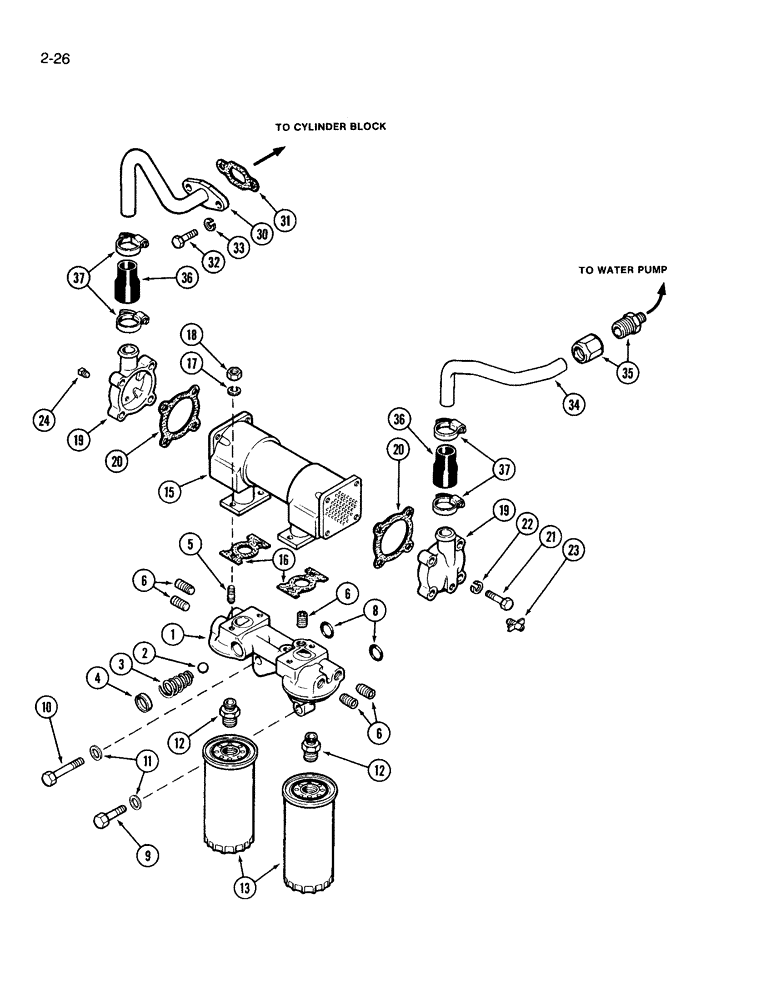

Запчасти Case IH 3594 (2-026) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A154541
BASE
OIL FILTER BASE ASSEMBLY, Includes Ref. 2 - 6
1шт.
2
211-219
BALL
3/4 inch, grade 25, chrome alloy steel
1шт.
3
A146897
SPRING
relief
1шт.
4
23623R1
PLUG,Cup, 1 1/4", Stainless
cup, 1-1/4 inch diameter
1шт.
5
G102128
BOLT
mounting, Replaces G11024, G11204
4шт.
6
221-844
PLUG,Hex Soc, 1/2"-14
square socket, 1/2 inch PT
5шт.
8
A64434
O-RING,0.93" ID x 1.142" x 0.106"
filter head
2шт.
9
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
10
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
hex, 1/2 NC x 3 inch
1шт.
11
95-11053
WASHER,1/2"
flat, 17/32 x 1-1/16 x 3/32 inch
2шт.
12
A63916
ADAPTER
, Serial Range: filter-base
2шт.
13
NSS
NOT SOLD SEPARAT
ELEMENT oil filter, 6-7/8 inch long, J I Case installed, Order A44081
2шт.
13
A44081
ENGINE OIL FILTER
ELEMENT oil filter, 8-5/8 inch long, service only
2шт.
15
A75295
OIL COOLER
EXCHANGER heat, oil
1шт.
16
1342768C1
GASKET
heat exchanger to filter base, Replaces A65359
2шт.
17
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
18
425-106
NUT,3/8"-16, Cl 5
4шт.
19
A64349
HOOD
PLATE end, heat exchanger
2шт.
20
1981245C1
GASKET
end plate, Replaces A63920
2шт.
21
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch
8шт.
22
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
23
217-107
VALVE
1/8 inch PT
1шт.
24
221-849
PLUG,Hex Soc, 1/8"-27
hex socket, 1/8 inch PT
1шт.
30
A75296
TUBE
heat, Serial Range: exchanger-block
1шт.
31
A58670
GASKET
, Serial Range: tube-block
1шт.
32
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
hex, 1/2 NC x 1-1/4 inch
2шт.
33
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
34
A166083
TUBE
heat exchanger to water pump
1шт.
35
222-2020
FITTING
CONNECTOR tube, 3/4 inch PT
1шт.
36
A64353
HOSE
tube to heat exchanger
2шт.
37
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm
4шт.
Выбрано товаров: 31
