Запчасти Case IH 3594 (2-022) - EXHAUST SYSTEM (02) - ENGINE

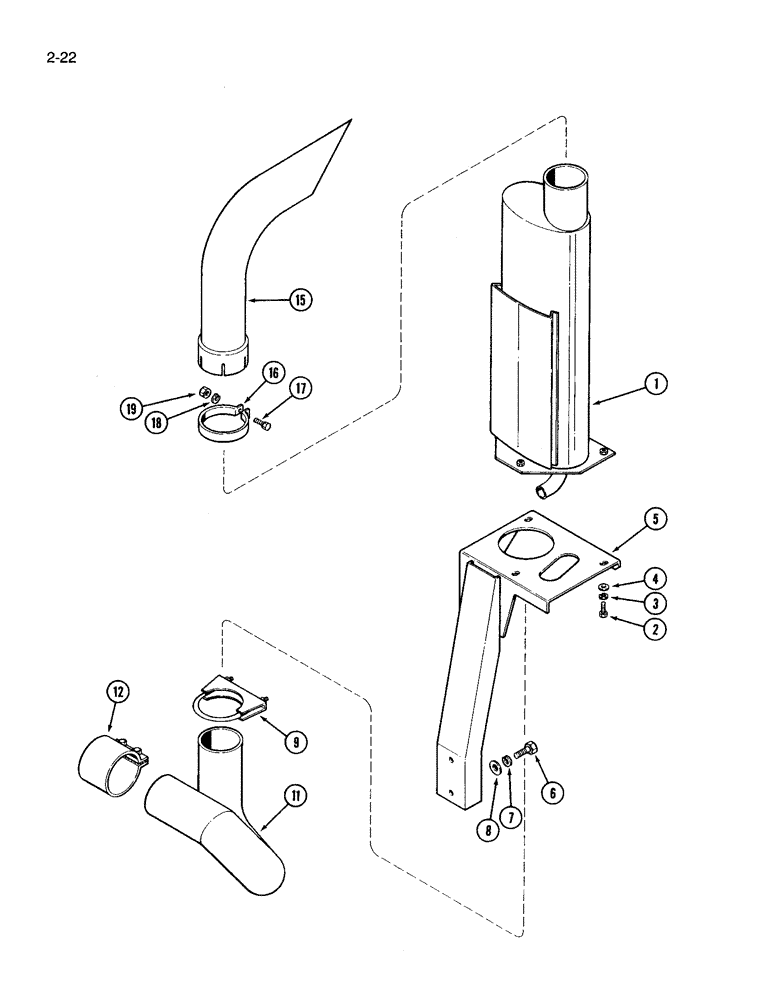

Схема запчастей Case IH 3594 - (2-022) - EXHAUST SYSTEM (02) - ENGINE
18
12
7
3
6
16
19
5
8
15
1
17
9
4
11
2

Артикул

Название

Примечание

Количество

1

A181372

MUFFLER

aspirated, Replaces A166448

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

5

A167634

SUPPORT

muffler

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

9

A162896

CLAMP

band, muffler to turbocharger elbow

1шт.

11

A181107

PIPE, EXHAUST SYSTEM

PIPE exhaust, Serial Range: turbocharger-muffler

1шт.

12

A149249

ASSEMBLY

SEAL clamp, exhaust, Serial Range: pipe-turbocharger

1шт.

15

A180204

TUBE

EXTENSION muffler, 27 inches long

1шт.

15

A185710

EXTENSION

muffler, 33-3/8 inches long

1шт.

16

A162895

CLAMP

extension

1шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

129-770

NUT,3/8"-16, G5

hex, 3/8 inch NC

1шт.

Выбрано товаров: 17
