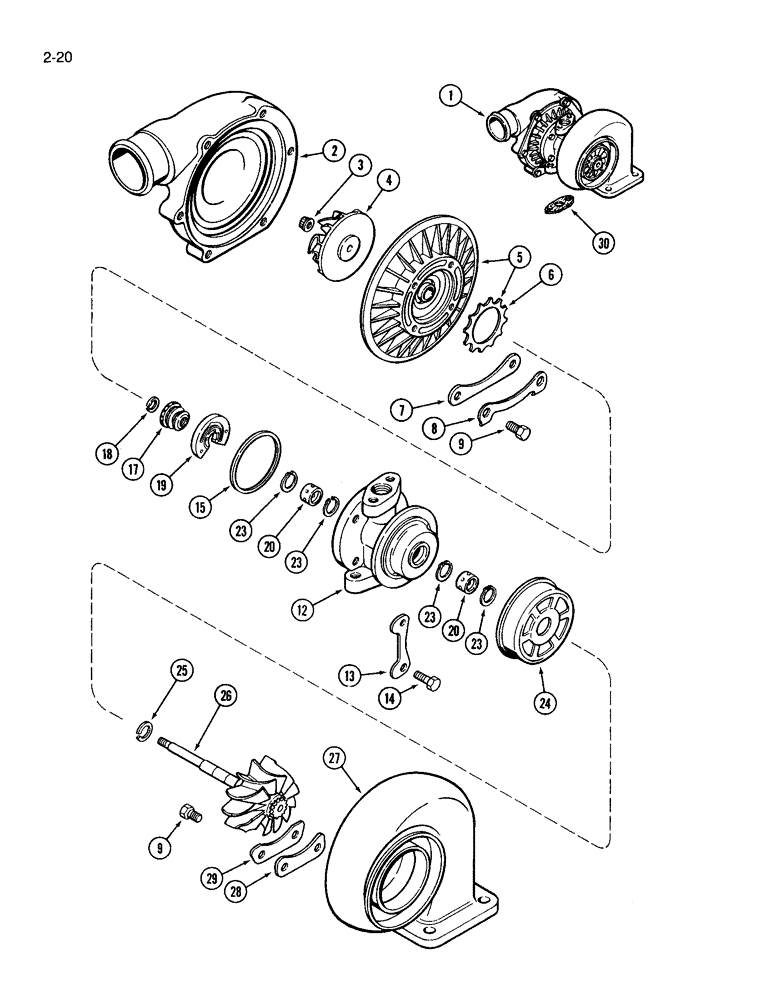

Запчасти Case IH 3594 (2-020) - TURBOCHARGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ENGINE TURBOCHARGER ASSEMBLY, new, Includes Ref. 2 - 29

1шт.

1

A48192

REMAN-TURBOCHARGER

Engine Turbocharger Assembly, Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, Use this part number to return turbocharger core for credit

1шт.

2

A45096

HOUSING

compressor

1шт.

3

615741C2

NUT

lock, compressor

1шт.

4

A45016

IMPELLER

wheel, compressor

1шт.

5

630614C91

PLATE

impeller back, Replaces A45095

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING thrust

1шт.

7

A44838

CLAMP

compressor housing

3шт.

8

A44839

PLATE

lock, compressor housing clamp

3шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

12шт.

12

A44825

HOUSING

center

1шт.

13

A44820

PLATE

lock, center housing to back plate

2шт.

14

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

4шт.

15

A44833

RING

seal, back plate to center housing

1шт.

17

615745C2

COLLAR

thrust, compressor, Replaces A156846

1шт.

18

A44828

RING

piston, compressor, 1/2 inch OD

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING thrust plate

1шт.

20

A44826

BEARING

journal, center, standard

2шт.

20

A44849

BUSHING

BEARING journal, center 0.005 inch undersize

2шт.

20

A44850

BUSHING

BEARING journal, center 0.010 inch undersize

2шт.

23

A44827

RING

snap, journal bearing

4шт.

24

A45091

GUARD

SHROUD center housing side wheel

1шт.

25

A44829

RING

piston, turbine housing, 23/32 inch OD

1шт.

26

A48397

SHAFT

WHEEL turbocharger shaft

1шт.

27

A44840

HOUSING

turbocharger

1шт.

28

684245C1

CLAMP

housing plate, Replaces A44823

3шт.

29

615739C1

PLATE, LOCKING

PLATE housing lock, Replaces A44824

3шт.

30

A58892

GASKET,1.59mm Thk

drain tube

1шт.
