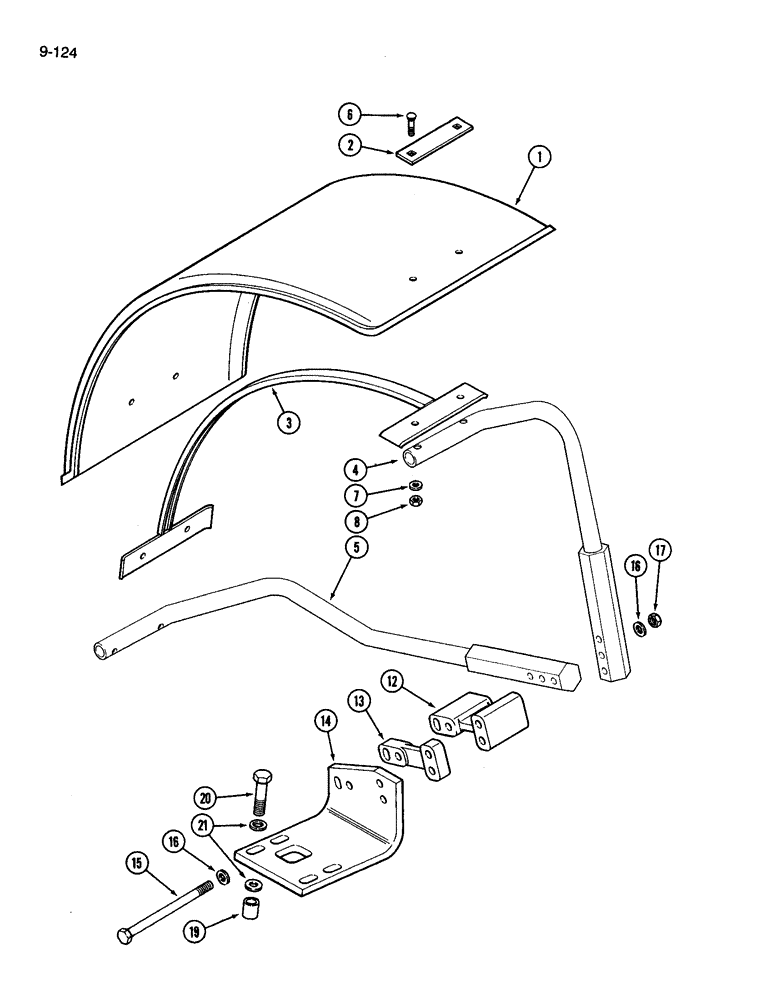

Запчасти Case IH 3594 (9-124) - FRONT FENDERS (09) - CHASSIS/ATTACHMENTS

A181135

FENDER ASSY.

ATTACHMENT fender, front, machinery item, Includes Ref. 1 - 21

1шт.

1

A181006

FENDER

front

2шт.

2

A181125

PLATE

retaining, outer fender

4шт.

3

A181124

CHANNEL

SUPPORT fender

2шт.

4

A185830

BRACE

fender, top right, Replaces A181366

1шт.

4

A185829

BRACE

fender, top left, Replaces A181365

1шт.

5

A185832

BRACE

fender, rear right, Replaces A181368

1шт.

5

A185831

BRACE

fender, rear left, Replaces A181367

1шт.

6

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

8шт.

6

133-2

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT round head square neck, 3/8 NC x 2-1/2 inch

8шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

8

131-206

NUT,3/8"-16

NUT heavy hex, self-locking, 3/8 inch NC

8шт.

12

A181128

SPACER

fender, 100 mm

2шт.

13

A181129

SPACER

fender, 25 mm

2шт.

14

A181127

PLATE

BRACKET fender brace, right mounting

1шт.

14

A181126

PLATE

BRACKET fender brace, left mounting

1шт.

15

413-8140

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

hex, 1/2 NC x 8-3/4 inch

8шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

16шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

A180416

SPACER

, Serial Range: axle-bracket

8шт.

20

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

8шт.

21

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

16шт.
