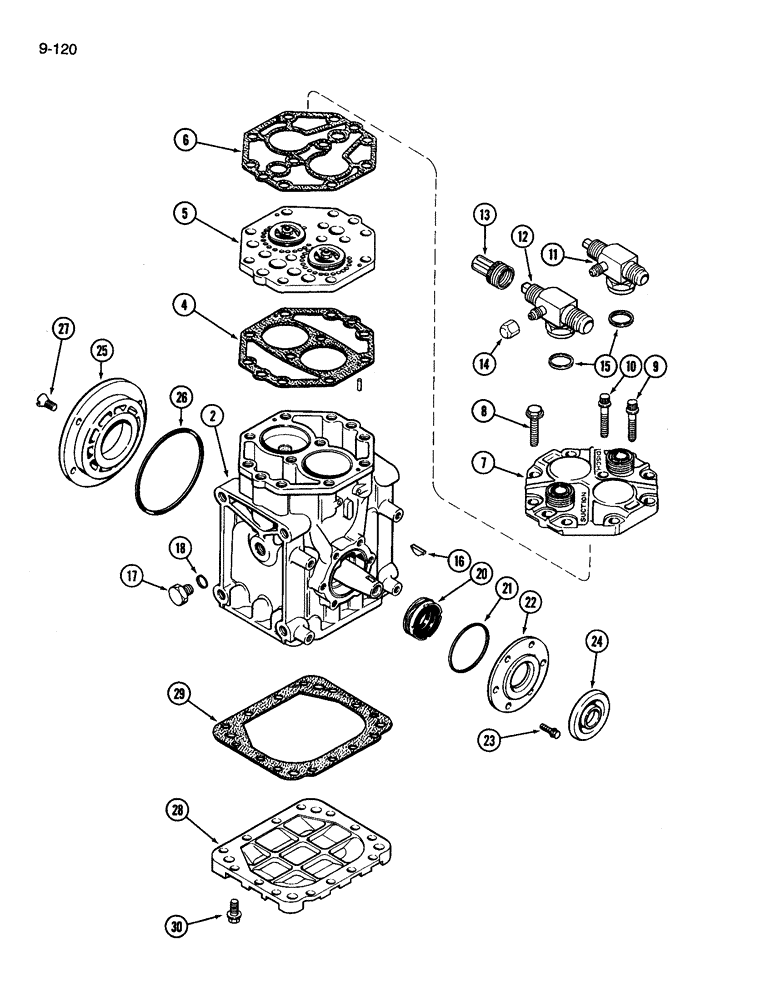

Запчасти Case IH 3594 (9-120) - AIR CONDITIONING, AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

417888C92

COMPRESSOR

AIR CONDITIONING COMPRESSOR ASSEMBLY, Replaces A141060, Includes Ref. 2 - 30

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C92

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE compressor

1шт.

A45420

VALVE

KIT Valve Plate, Includes Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET valve, Serial Range: plate-crankcase

1шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET cylinder head to valve plate

1шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD cylinder, compressor

1шт.

8

A42949

FLANGE BOLT

BOLT hex, flange head, 5/16 NC x 1-3/8 inch

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

BOLT ferry head, 5/16 NC x 1-3/8 inch

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

BOLT ferry head, 5/16 NC x 1-17/32 inch

2шт.

11

A42936

VALVE

ROTO LOCK VALVE ASSEMBLY discharge, 1/2 inch port

1шт.

12

A42937

VALVE

ROTO LOCK VALVE ASSEMBLY suction, 5/8 inch port, Includes Ref. 13 and 14

1шт.

13

A42944

CAP

sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP hex, 7/16-20 inch, female, 45 degree flare

2шт.

15

A42938

GASKET

roto-lock to cylinder head

2шт.

16

A42939

KEY

crankshaft, No. 6

1шт.

17

414-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

hex, 3/8 NF x 1/2 inch

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING filter and level plug

2шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

592263C91

SEAL KIT

Seal, shaft, front, Includes Ref. 20, 21 and 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING seal plate

1шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT hex washer head, No. 10 NC x 7/16 inch

6шт.

24

A42965

CAP

dust, crankshaft oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING crankcase, rear

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET housing, rear

1шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW housing to crankcase, rear

4шт.

28

NSS

NOT SOLD SEPARAT

PLATE crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET base plate

1шт.

Part of Gasket Kit, P/N 1349392C1

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT base, Serial Range: plate-crankcase

12шт.

1349392C1

GASKET KIT

KIT Gasket, complete overhaul, Includes Ref. 4, 6, 18, 21, 26 and 29

1шт.
