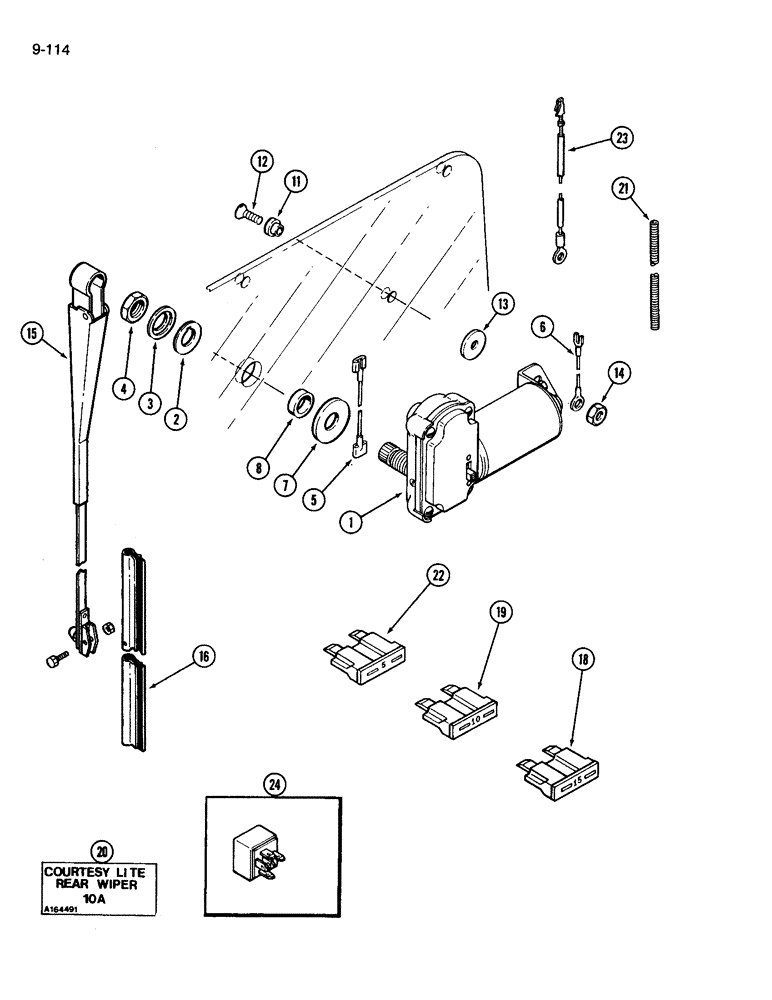

Запчасти Case IH 3594 (9-114) - REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS

A164686

WIPER MOTOR

KIT Wiper, window, rear, machinery item, Includes Ref. 1 - 24

1шт.

1

F93209

WIPER MOTOR

MOTOR wiper, Includes Ref. 2, 3 and 4

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER leather

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER

1шт.

4

NSS

NOT SOLD SEPARAT

NUT

1шт.

5

A165311

ELECTRICAL WIRE

WIRE power

1шт.

6

A165075

ELECTRICAL WIRE

WIRE ground

1шт.

7

A165073

WASHER

nylon, 5/8 x 1-1/2 x 7/64 inch

1шт.

8

A165074

SPACER

nylon, 7/8 inch OD

1шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

mounting

1шт.

12

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

machine, oval head phillips, No. 10 NC x 3/4 inch

1шт.

13

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

nylon, 5/16 x 1 x 7/64 inch

1шт.

14

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

1шт.

15

T41946

ARM

wiper blade, 15 inch

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE wiper, 16 inch

1шт.

18

A149801

FUSE,Lt Blue, 15 Amp

15 ampere, light blue

1шт.

19

A149800

FUSE,10 Amp

10 ampere, red

1шт.

20

A164491

DECAL

10 ampere fuse

1шт.

21

L77320

CONDUIT

convoluted, Order 824970C1

1шт.

22

A149798

FUSE

5 ampere, tan, not used this application

1шт.

23

A181164

HARNESS

WIRE power

1шт.

24

A147176

RELAY

30 amp

1шт.
