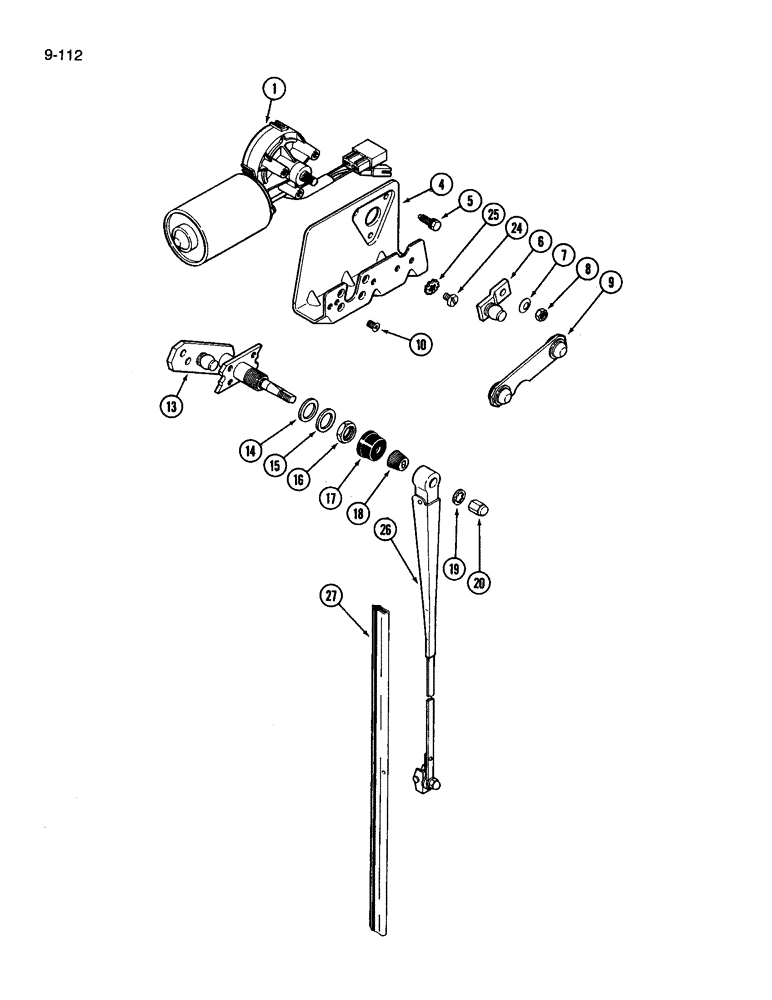

Запчасти Case IH 3594 (9-112) - CAB, WINDSHIELD WIPER, ROBERT BOSCH (09) - CHASSIS/ATTACHMENTS

F96900

MOTOR HOUSING

WINDSHIELD WIPER ASSEMBLY, Includes Ref. 1 - 20

1шт.

F96891

WINDSHIELD WIPER ASSEMBLY, Robert Bosch, Order F96900, Includes Ref. 1 - 20

1шт.

1

F96890

WIPER MOTOR

MOTOR wiper

1шт.

4

N8359

SUPPORT

BRACKET wiper

1шт.

5

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

MOUNTING SCREW ASSEMBLY, with washer

3шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N8361

SPRING WASHER

spring, retaining

1шт.

8

L112090

NUT

hex, 8 mm, retaining

1шт.

9

N8358

LINK

LINK pivot, wiper, Order F45346

1шт.

10

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

bracket

1шт.

13

N9090

WIPER BLADE

SHAFT pivot

1шт.

14

N6749

WASHER

fiber

1шт.

15

N6750

WASHER

steel

1шт.

16

N6751

NUT

shaft

1шт.

17

N6752

CAP

shaft, rubber

1шт.

18

N6753

BLOCK DRIVER

DRIVER knurled

1шт.

19

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

20

N6754

NUT

dome, 3/8 inch NF

1шт.

24

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

machine, pan head slotted, 1/4 NF x 3/8 inch

2шт.

25

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

26

A165060

WIPER ARM

ARM wiper blade, 18 inch, black

1шт.

27

A165059

WIPER

BLADE wiper, 20 inch, black

1шт.
