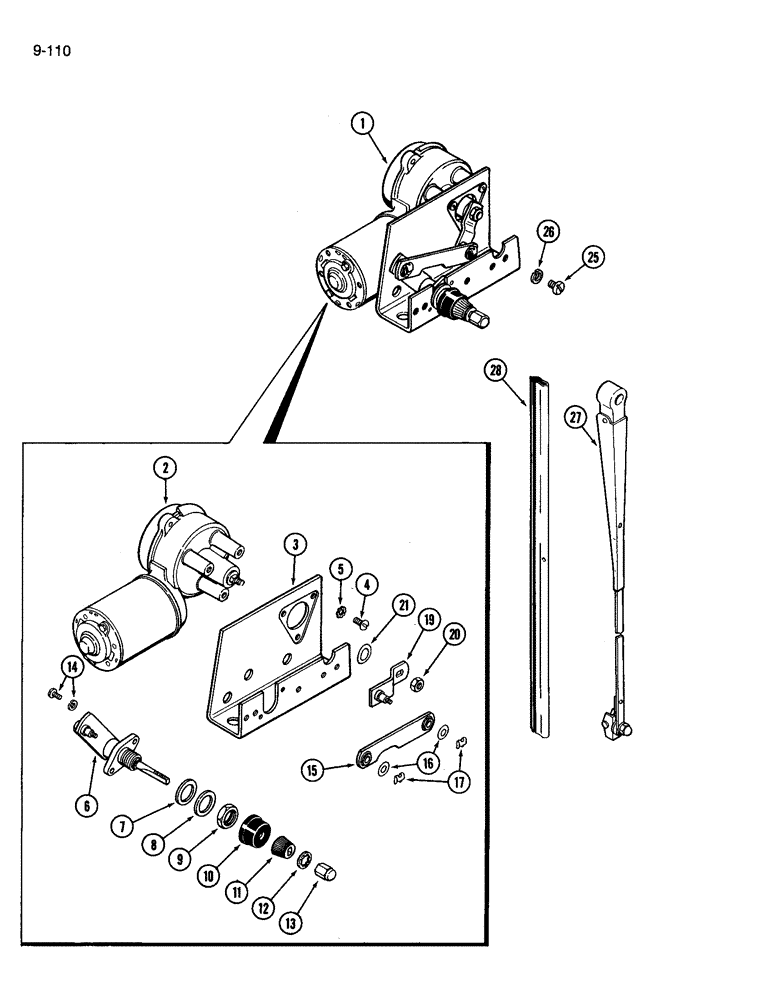

Запчасти Case IH 3594 (9-110) - CAB, WINDSHIELD WIPER, AMERICAN BOSCH (09) - CHASSIS/ATTACHMENTS

F96900

MOTOR HOUSING

WINDSHIELD WIPER ASSEMBLY, Includes Ref. 1 - 21

1шт.

1

F96764

WIPER

WINDSHIELD WIPER ASSEMBLY, American Bosch, Order F96900, Includes Ref. 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR wiper, Order F96900

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET motor, Order F96900

1шт.

4

174-214

SCREW,Sl Rnd Hd, 1/4" - 28 x 5/8"

machine, round head slotted, 1/4 NF x 5/8 inch

3шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER external tooth lock, 1/4 inch

3шт.

D71415

SHAFT

WIPER ARM SHAFT ASSEMBLY, Includes Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT AND PIVOT wiper arm

1шт.

7

D71417

SPECIAL WASHER

WASHER fiber

1шт.

8

D71418

WASHER

steel

1шт.

9

D71419

NUT

hex jam

1шт.

10

D71420

CAP

BOOT rubber

1шт.

11

1267556C1

BUTTON

DRIVER knurled

1шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

13

D71422

NUT

hex, cap

1шт.

14

D71416

SCREW

shaft

2шт.

15

D71427

LINK,85.85mm L

connecting

1шт.

16

A22431

WASHER

link clip

2шт.

17

D71414

CLIP

RETAINER spring clip

2шт.

19

F64210

LEVER

ARM drive

1шт.

20

F44452

LOCK NUT

hex, keps

1шт.

21

D71411

WASHER

wave

1шт.

25

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

machine, pan head slotted, 1/4 NF x 3/8 inch

2шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

A165060

WIPER ARM

ARM wiper blade, 18 inch, black

1шт.

28

A165059

WIPER

BLADE wiper, 20 inch, black

1шт.
